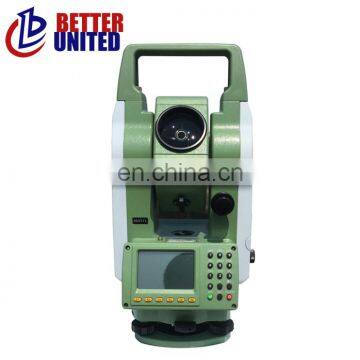

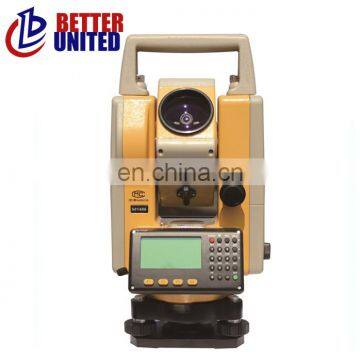

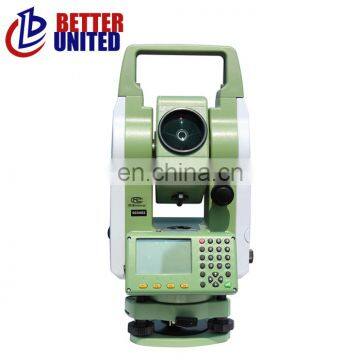

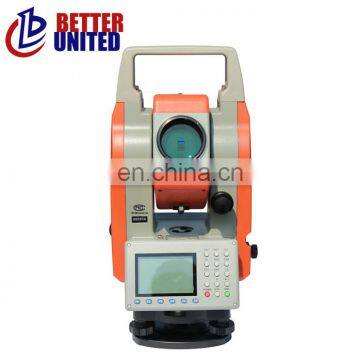

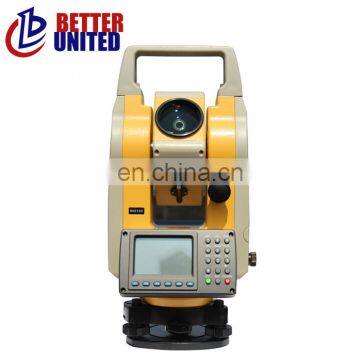

Newest Selling Good Quality Second Hand Cheap Total Station
US$ 999 - 1,299
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
BT
Place of Origin:
Hebei, China
Model Number:
DTM100
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Best-selling Surveying Equipment Total Station Battery ChargerUS$ 990 - 1,299MOQ: 1 Set -
High Technology Durable High Quality Surveying Equipment Station TotalUS$ 999 - 1,299MOQ: 1 Set
-
Hsuperior Performance Igh Precision Low Price Total StationUS$ 1,200 - 2,000MOQ: 1 Set
-
Super Quality High Configuration Surveying Equipment Dadi Total StationUS$ 1,200 - 2,000MOQ: 1 Set
-
Quality Assurance ASTM GB Standard Total StationUS$ 1,200 - 2,000MOQ: 1 Set
Brand Name
BT
Place of Origin
Hebei, China
Model Number
DTM100
TOTAL STATION DTM100 SERIES
SPECIFICATIONS
| Telescope | ||
| Length | 150mm | |
| Magnification | 30X | |
| Image | Erect | |
| Shortest sighting distance | 1.0m | |
| Additive constant | 0 | |
| Objective lens aperture | φ48 | |
| Resolving power | 3.75" | |
| Field of view | 1°30'(26m/1000m) | |
| Stadia proportion | 100 | |
| Angle measurement | ||
| Measuring mode | absolute encoder system | |
| Minimum reading | 1?,5",10" | |
| Accuracy | 2",5",10" | |
| Compensator | ||
| Type | Single axis liquid tilt sensor | |
| Range | ±3’ | |
| Accuracy | 3" | |
| Distance measurement | ||
| Measurement range | Average weather condition, visibility is about 23.5km | |
| Single prism | 1000m | 1800m |
| Three prism | 1600m | 2600m |
| Minimum display | Accurate mode: 1mm | |
| Track mode: 10mm | ||
| Accuracy | ±(3mm+2ppm•D) | |
| Measuring time | ||
| Accurate mode | 2" | |
| Track mode | 0.8" | |
| Display | ||
| Display | Graphic lattice LCD on both sides | |
| Horizontal angle display range | 0°~359°5'59" | |
| Vertical angle display range | 0°~359°59’59"or 0°±89°59'59"-999.99%~999.99% | |
| Applied measuring module | ||
| Recession module | Area measure module | |
| Coordinate measuring module | Offset measurement module | |
| Laying-out | Missing line measurement module | |
| Remote elevation measurement module | Memory≥15,000 dots | |
| Measuring mode | ||
| Horizontal angle | Left angle, right angle, set mode | |
| Vertical angle | Zenith 0°, horizontal 0°, horizontal 0°±90°,slope% | |
| Measuring time | Less than 0.5 second | |
| Angular unit | degree,gon,mil | |
| Others | ||
| Level sensitivity | Plate level:20"/mm,30"/mm | |
| Circular level:8'/2mm | ||
| Laser plummet | ||
| Data output | Asynchronous serial in RS-232/USB(option) | |
| Height | 232mm | |
| Weight | 6.2kg | |
| Power supply | Rechargeable battery:BDC1800mAh,6v (Ni-MH Battery) | |
| Battery working time | Distance measurement:6 hours | |
| Angle measurement:100 hours | ||
