Best-selling surveying equipment total station battery charger

FOB Price

USD $990 - $1,299 / Set

1 Set(Min.Order)

Product Details

Brand Name:

Place of Origin:

Hebei, China

Model Number:

DTM100

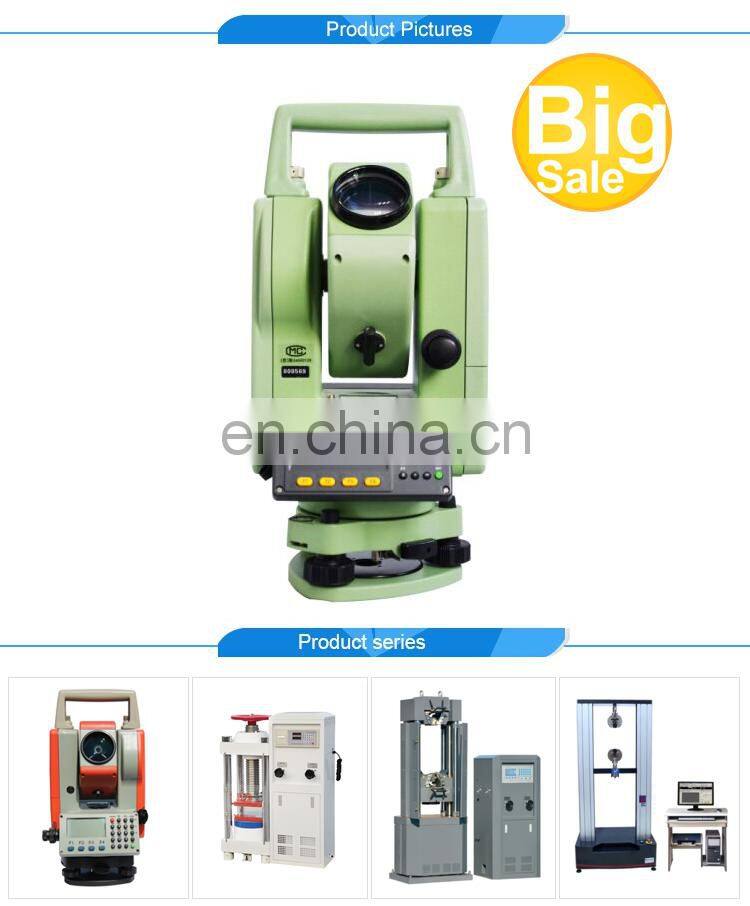

TOTAL STATION DTM100 SERIES

SPECIFICATIONS

Telescope
Length	150mm
Magnification	30X
Image	Erect
Shortest sighting distance	1.0m
Additive constant	0
Objective lens aperture	φ48
Resolving power	3.75"
Field of view	1°30'(26m/1000m)
Stadia proportion	100
Angle measurement
Measuring mode	absolute encoder system
Minimum reading	1?,5",10"
Accuracy	2",5",10"
Compensator
Type	Single axis liquid tilt sensor
Range	±3’
Accuracy	3"
Distance measurement
Measurement range	Average weather condition, visibility is about 23.5km
Single prism	1000m	1800m
Three prism	1600m	2600m
Minimum display	Accurate mode: 1mm
	Track mode: 10mm
Accuracy	±(3mm+2ppm•D)
Measuring time
Accurate mode	2"
Track mode	0.8"
Display
Display	Graphic lattice LCD on both sides
Horizontal angle display range	0°~359°5'59"
Vertical angle display range	0°~359°59’59"or 0°±89°59'59"-999.99%~999.99%

Applied measuring module
Recession module	Area measure module
Coordinate measuring module	Offset measurement module
Laying-out	Missing line measurement module
Remote elevation measurement module	Memory≥15,000 dots
Measuring mode
Horizontal angle	Left angle, right angle, set mode
Vertical angle	Zenith 0°, horizontal 0°, horizontal 0°±90°,slope%
Measuring time	Less than 0.5 second
Angular unit	degree,gon,mil
Others
Level sensitivity	Plate level:20"/mm,30"/mm

	Circular level:8'/2mm
Laser plummet
Data output	Asynchronous serial in RS-232/USB(option)
Height	232mm
Weight	6.2kg
Power supply	Rechargeable battery:BDC1800mAh,6v (Ni-MH Battery)
Battery working time	Distance measurement:6 hours
	Angle measurement:100 hours
