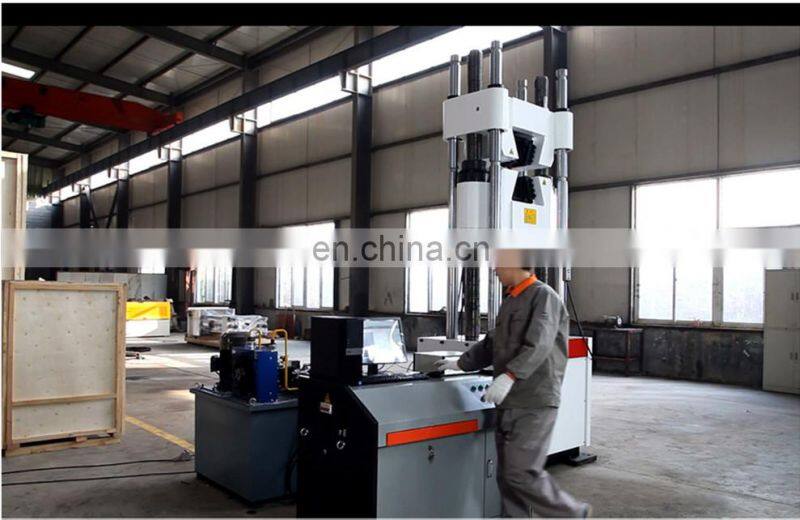

WB-2000D Computer Control Electronic Universal Tensile Test Instrument/Equipment

WB-2000D 2000kN Computer Controlled

         Electro-hydraulic Servo Universal Testing Machine

1. Application

Computer Control Electro-Hydraulic Servo Tensile Testing Equipment is equipped with computer, printer, and general test software, to give an accurate determination of metal the material tensile strength, yield strength, the provisions of non-proportional extension strength, elongation, elastic modulus mechanical properties. Test results can print (force - displacement, force - deformation, stress - displacement, stress - deformation, force - time distortion - time) six kinds of curves and related test data, with the software self-test function that can self-diagnose problems. It is ideal testing equipment for the industrial and mining enterprises, scientific research units, universities, engineering quality supervision station. They are perfect testing instrument project quality testing section, universities and colleges, research institution and industrial and mining.

2. Standard

ASTM E8: Standard Test Methods for Tension Testing of Metallic Materials

ASTM E4 -16 Standard Practices for Force Verification of Testing Machines

ISO6892-1:2016 Metallic materials — Tensile testing — Part 1: Method of test at

room temperature

ISO75000-1:Metallic materials--Verification of static uni-axial testing machines--Part 1:

Tension/compression testing machines--Verification and calibration of the force-measuring system

3. Main Technical Parameters

 Packing size and weight

4. Main Unit Feature

4.1 Rigid in block cast base with fuel tank mounted under the host and upper space for tensile and lower one for compression and bending test

4.2 Solid four columns and two screws design guarantees the strong stability for the machines.

4.3 Middle beam adopts adjustable gap screw-nut mechanism, eliminating the gap and improving the measurement performance.

4.4 Italian imported gear pump features high pressure and low-noise as with working pressure up to 33MPa, the system maximum actual pressure of 28MPa.

4.5 With reference to hydraulic system, the electromagnetic valve, relief valve, pressure relief valve, valve pressure and other hydraulic components are applied well-known brands. Servo valve, as the corn parts, applies Atos Brand.

4.6 Load automatic withstanding, stress, strain control, cycle control and self-programming.

4.7 Precise load sensor for guarantee accurate and stable measure

4.8 Overload protection: Emergency stop switch, overload limiter, ram-stroke limiter, hydraulic pump motor over-current & over heating protection, leak / over current protection, automatic stop control, safety Guard.
