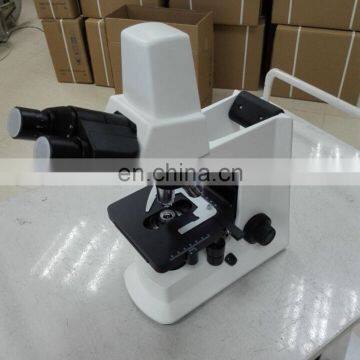

Aspheric illuminators biological microscope with optional accessories

Items

Specification

SMART-1

SMART-2

SMART-3

Eyepiece

WF 10X-18 mm

**

WF 10X-20 mm

**

**

WF 16X-13 mm#

Reticule Eyepiece WF 10X-18 mm (0.1mm)

#

#

#

Reticule Eyepiece WF 10X-20 mm (0.1mm)

#

#

Achromatic

Objective

4X

*

10X

*

40X(S)

*

100X/1.25 (Oil) (S)

*

20X

#

60X (S)

#

Plan Objective

4X

*

10X

*

40X/0.65 (S)

*

100X/1.25 (Oil) (S)

*

20X

#

60X (S)

#

Infinity E-Plan

Objectives

4X

*

10X

*

40X (S)

*

100X (Oil) (S)

*

Plan 20X

#

Plan 60X (S)

#

Seidentopf Binocular Head

Inclined 30°,Rotatable 360°,

Interpupilary Distance 50-75mm

*

*

*

Seidentopf

Trinocular Head

Inclined 30°,Rotatable 360°,

Interpupilary Distance 50-75mm,

Light Distribution: 20:80

#

#

#

Nosepiece

Quadplex

*

*

*

Stage Size: 145X140mm

Travel: 76mmX52mm, Scale: 0.1mm

Coaxial Coarse and Fine Focusing Knobs

Travel Range: 26mm, Scale: 2um

Two Slide Holder

*

*

*

Condenser

Abbe N.A. 1.25(Iris Diaphragm)

*

*

*

Illumination

6V/20W Halogen Lamp

*

*

*

6V/30W Halogen Lamp

#

#

#

3W-LED Illumination Systems (non-rechargeable)

#

#

#

0.3W-LED Illumination Systems (Rechargeable)

#

#

#

Field Diaphragm

#

#

#

Dark Field Unit

N.A.0.9 (Dry)

#

#

#

Polarizing Attachment

Analyzer/Polarizer

#

#

Independent phase contrast unit

10X /20X /40X /100X

#

Fluorescence unit

Epi Fluorescence unit (three-hole slide)

(B,G, 100W mercury lamp )

#

#

#

Epi Fluorescence unit (three-hole slide)

(B,G, 3W-LED lamp )

#

#

#

Filter

Blue

*

*

*

Green

#

#

#

Yellow

#

#

#

C-Mount

0.47X (Focus adjustable)

#

#

#

1X

#

#

#

Mirror

#

#

#

Wire winding device

#

#

#
