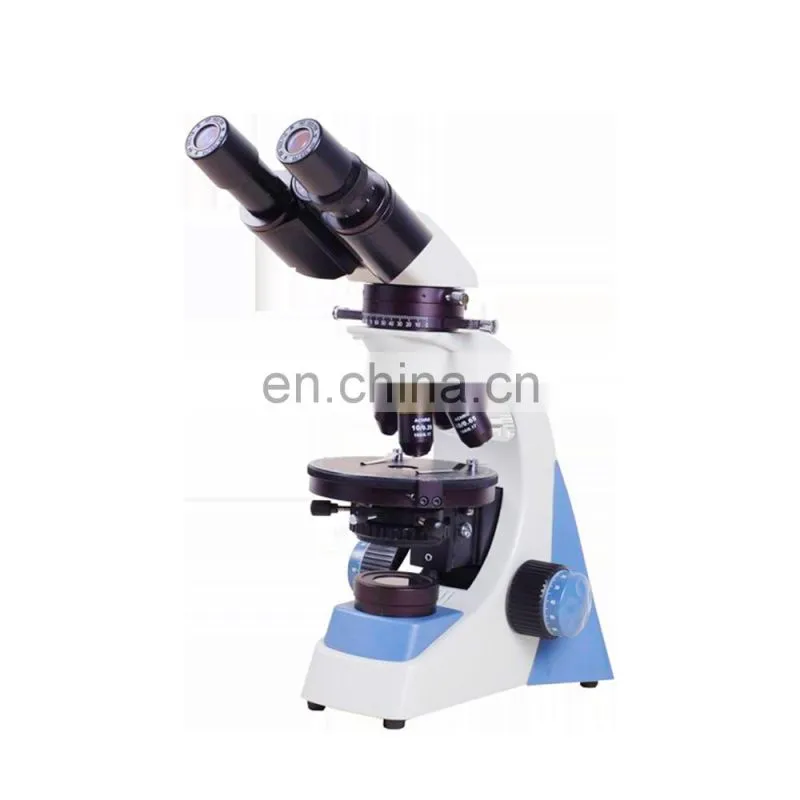

Binocular Polarizing Microscope DW-2005BP

Binocular Polarizing Microscope DW-2005BP photo-1
US$ 290 - 365 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Drawell
Place of Origin:
Shanghai, China
Model Number:
DW-2005BP
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Drawell
Place of Origin Shanghai, China
Model Number DW-2005BP



DW-2005BP Binocular Polarizing Microscope



Polarizing microscope is widely used in mineral, polymer, fiber, glass, semiconductor, chemical and other fields,using the lights' polarization characteristic to  research and identify double refraction material; users are able to make  single polarization observation, orthogonal polarization observation, cone light observation etc.



Eyepiece

Wide Field Plan-scope Eyepiece: WF10X/18mm

Objective

45mm DIN Achromatic Objective: 4X,10X,40X(S), 100(S,Oil)

Head

Articulated Free Binocular Head, Interpupillary Distance:55-75mm;

30°Inclined, 360°Rotatable;

Rotatable Analyzer with Graduation 0°-90°, Sliding out of Optical Path;

Stage

Revolving Round Stage: 160mm; 360° Rotatable and Graduated 1° Increments, Minimum Resolution 6’;

Condenser

ABBE Condenser: N.A.1.25; 2-30mm Iris Diaphragm and 32 Filter

Focusing Adjustment

Coaxial Coarse and Fine Focusing Adjustable Mechanism: 14mm, precision: 0.01mm

Others

Optical Compensator:λSlip(First Class  Red), 1/4 λSlip

Polarize: On The Light Collector; 360° Rotatable

Illumination

Built-in Adjustable Brightness 1W LED Lamp

Optional

Eyepieces WF16X;

Net Weight

4kg







Binocular Polarizing Microscope DW-2005BP
