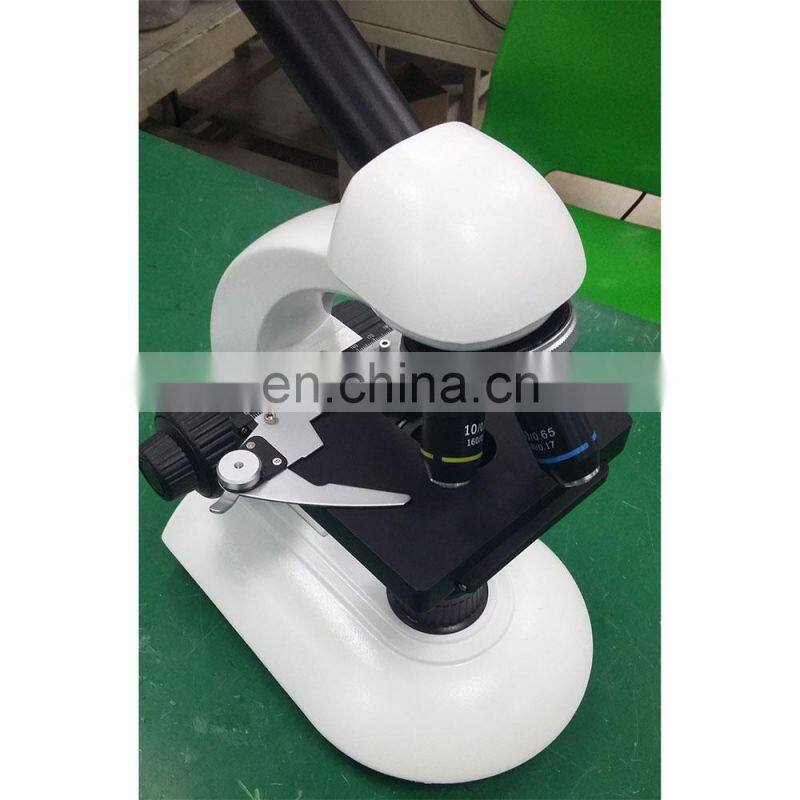

DW-23 / DW-23A Monocular Student microscope
This series microscope is a basic model and high precision instrument designed and produced by our company.It is specially designed for clinical examination and teaching demonstration in medical and health establishments, laboratories, agricultural science and technology field, research institutes. It is used for routine work and research in biology, bacteriology cytology and pharmacology.
DW-23
Eyepiece | Wide Field Plan-scope Eyepiece: WF10X/18mm;Total Magnification: 40X-640X |
Objective | Achromatic Objectives: 4X,10X,40X(S) |
Head | Monocular Head, 45°Inclined, 360° Rotatable |
Stage | Plain Stage With Paired Clips: 95X105mm |
Condenser | Single Lens Condenser: N.A.0.65; Five-Stop Dial Diaphragm |
Focusing Adjustment | Coarse Focusing Adjustable Mechanism: 16mm; |
Illumination | LED Lamp |
Optional | 1.WF16X, WF20X; 2.Rechargeable Batteries 3.Top LED Lamp |
Net Weight | 1.5kg |
|
|
DW-23A
Eyepiece | Wide Field Plan-scope Eyepiece: WF10X/18mm;Total Magnification: 40X-640X |
Objective | Achromatic Objectives: 4X,10X,40X(S) |
Head | Monocular Head, 45°Inclined, 360°Rotatable |
Stage | Double layers Mechanical Stage: 95X105mm |
Condenser | Single Lens Condenser: N.A.0.65; Φ2-Φ30mm Iris Diaphragm |
Focusing Adjustment | Coaxial Coarse and Fine Focusing Adjustable Mechanism: 16mm; Precision:0.002mm |
Illumination | LED Lamp |
Optional | 1.WF16X, WF20X; 2.Rechargeable Batteries 3.Top LED Lamp |
Net Weight | 1.5kg |
