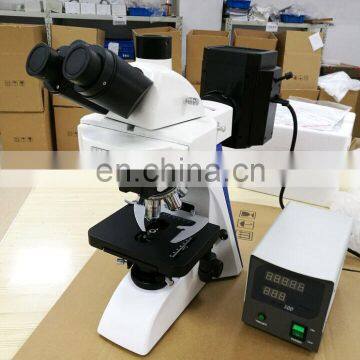

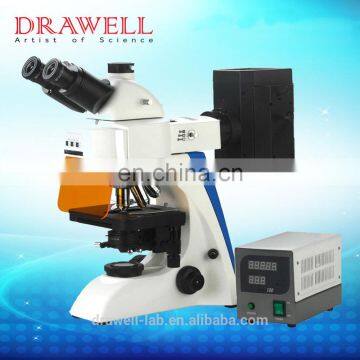

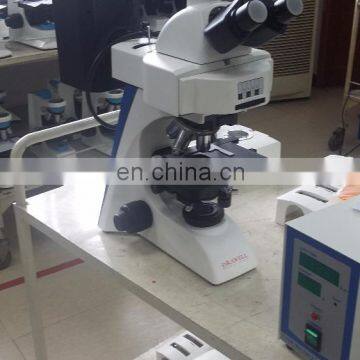

USB digital Biological Microscope

Items

Specification

Outfits

Eyepiece

WF10×/20mm (23.2)

**

Infinity Plan Objectives

PLAN 4×/0.10

W.D.=12.10mm

*

PLAN 10×/0.25

W.D.=4.64mm

*

PLAN 20×/0.40(S)

W.D.=2.41mm

*

PLAN 40×/0.66(S)

W.D.=0.65mm

*

PLAN 100×/1.25(S, Oil)

W.D.=0.12mm

*

PLAN 2.5×/0.07

W.D.=8.47mm

 #

PLAN 60×/0.80(S)

W.D.=0.33mm

#

PLAN 100×/1.15(S, W)

W.D.=0.19mm

 #

Seidentopf Binocular Head

Inclined 30°,Rotatable 360°, Interpupilary Distance: 48mm -75mm

*

Seidentopf Trinocular Head

Inclined 30°,Rotatable 360°, Interpupilary Distance: 48mm-75mm

Light Distribution: 100: 0 / 80:20

#

Nosepiece

Quintuple

*

Mechanical Stage

Stage Size: 175X145mm,Travel: 78mm×55mm
Coaxial Coarse and Fine Focusing Knobs
Two Slide Holder

*

Swing Out Condenser

Abbe N.A. 1.25 with iris diaphragm.

*

Koehler Illumination

Wide voltage input: 100V~240V

Field diaphragm , center adjustable

6V/20W Halogen Lamp

*

6V/30W Halogen Lamp

3W-LED Illumination

Filter

Blue

*

Green

#

Amber

#

Grey

#

C-mount

1×C-mount ( better for digital photograph)

#

0.57× C-Mount (focus adjustable, better for digital camera)

#

Adaptor for Digital Photograph

Used for CANON/NIKON/OLYMPUS etc.

#

Fluorescence Attachment

Epi fluorescence unit ( six-hole disc media which can be fixed with Uv /V/B/G and another filters) ,100W mercury lamp.

#

Epi fluorescence unit ( six-hole disc media which can be fixed Uv /V/B/G), LED fluorescence lamp.

#

Phase Contrast Unit

Quintuple hole turret

10× /20× /40× /100× phase contrast objective

#

Independent slot

10× /20× /40× /100× phase contrast objective

#

Dark Field Unit

Dark field condenser (dry),apply to 4×- 40× objective

#

Dark field condenser (wet),apply to 100× objective

#

Polarizing Attachment

Analyzer / Polarizer

#
