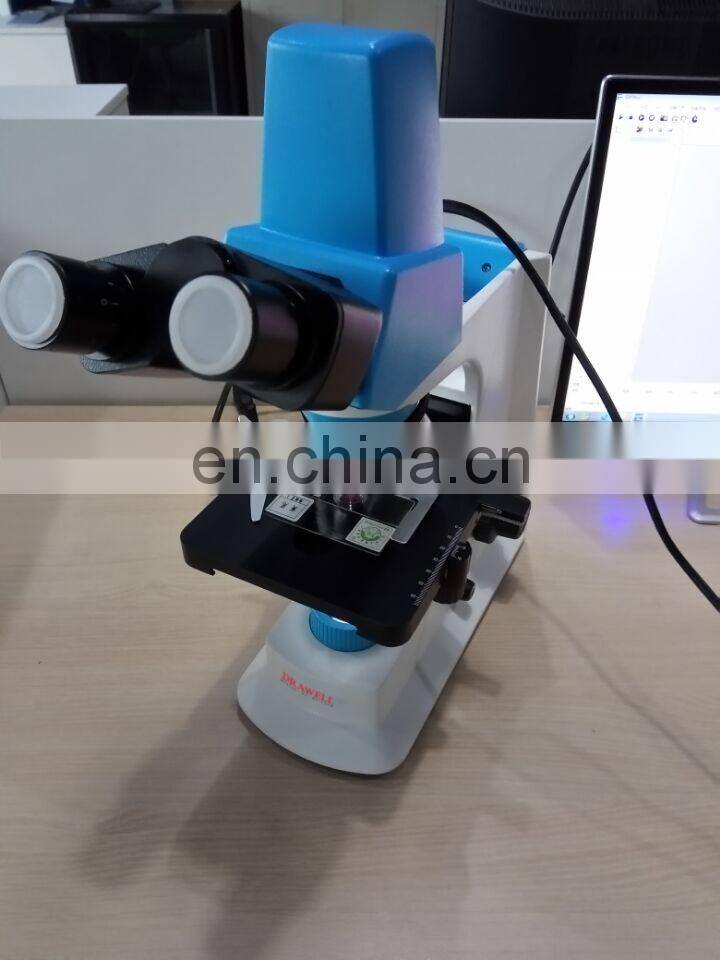

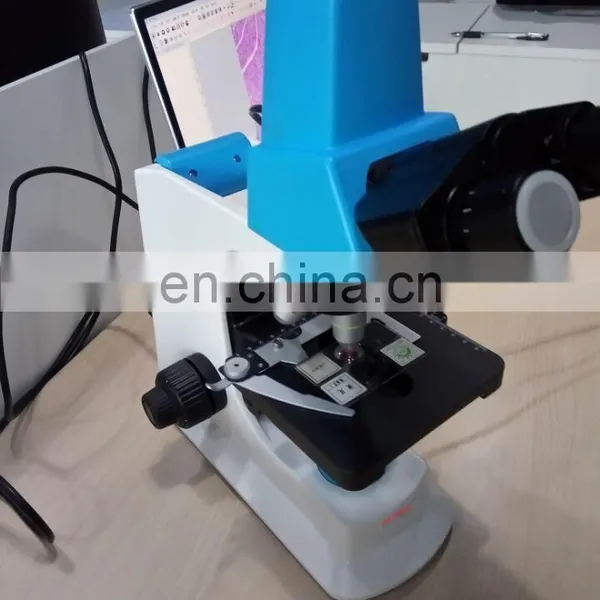

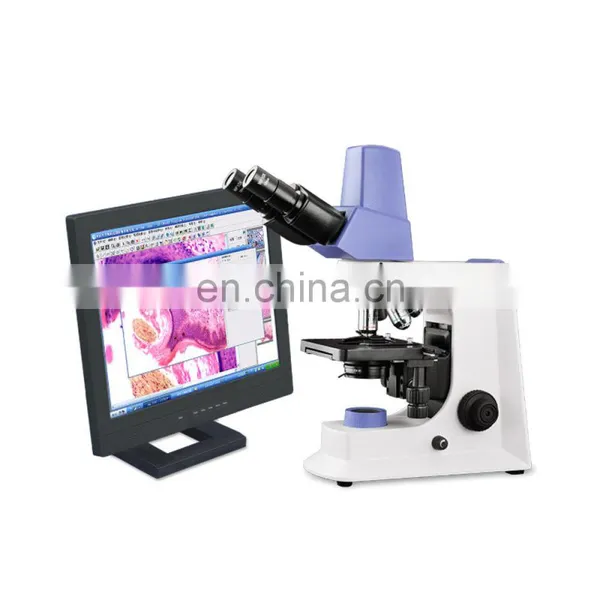

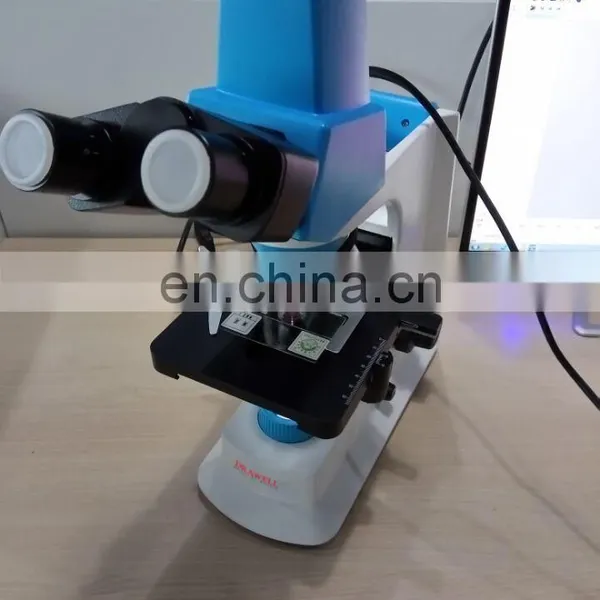

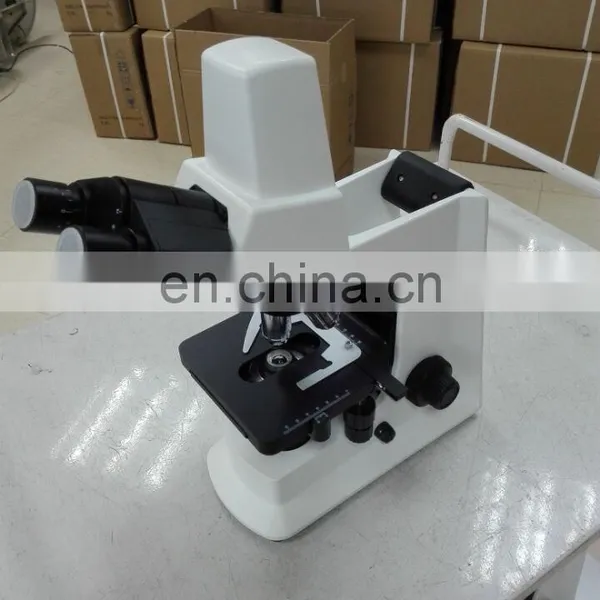

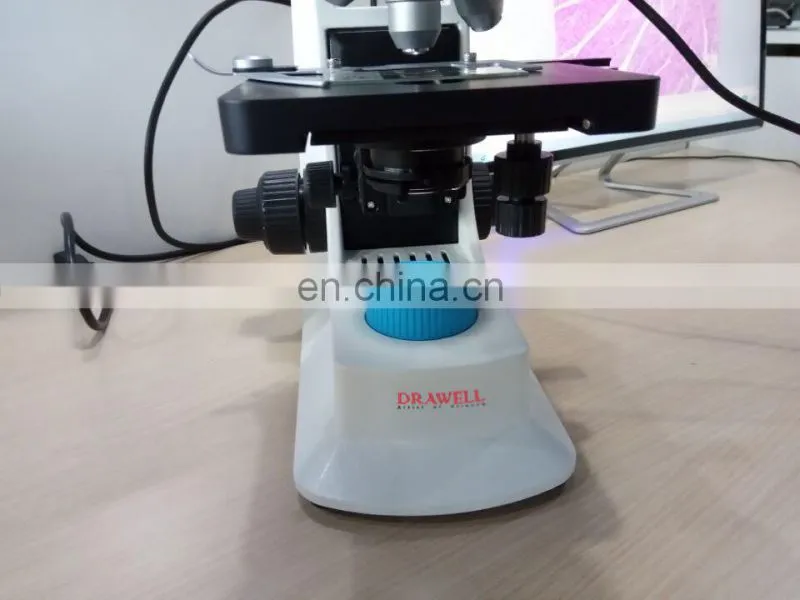

Smart-E series USB Digital Microscope Camera

Name: Smart-E series USB Digital Microscope Camera
Brand: Drawell
Price: USD $650 - 800 / Piece

FOB Price

USD $650 - $800 / Piece

1 Piece(Min.Order)

Product Details

Brand Name:

Drawell

Place of Origin:

Shanghai, China

Model Number:

SMART-e500

SMART-e320/500 Digital Microscope Characteristics

1 Dustproof, moisture-proof, built-in chip.

2Light distribution 20:80, eyepiece observation synchronized with digital imaging without switching.

3 Built-in 3MP/5MP digital camera system,1/2’’CMOS color sequential scanning.

4 USB2.0 connection without external power supply.

5 Available for WINDOWS 2000/XP/7/Vista system.

SMART-e Digital Microscope Outfits

Items	Specification	SMART-e320	SMART-e500
Eyepiece	WF 10X-20mm	**	*
Infinity EPlan Objective	4X	*	*
	10X	*	*
	40X/0.65 (S)	*	*
	100X/1.25 (Oil) (S)	*	*
Seidentopf Binocular Head	Inclined 30°,Rotatable 360°,Interpupilary Distance: 50-75mm	*	*
Nosepiece	Quadplex	*	*
Mechanical Stage	Stage Size: 145X140mm Travel: 76mm×52mm, Scale: 0.1mm,Two Slide Holder	*	*
Condenser	Abbe N.A. 1.25(Iris Diaphragm)	*	*
Illumination	6V/20W Halogen Lamp	*	*
	6V/30W Halogen Lamp	#	#
	LED Illumination Systems(W/O Rechargeable)	#	#
Filter	Blue(Built In)	*	*
Image Systems		3.2MP Pixel	5 MP Pixel

Note: "*"In Table Is Standard outfits, "#" Is Optional Accessories.

Packing Size: 570mm×275mm×450mm Gross Weight: 8 kgs Net Weight: 7 kgs
