Home > Products > Microscope > SMART Series digital electronic Biological Microscope

SMART Series digital electronic Biological Microscope

FOB Price

US$ 300 - 400 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Drawell		Place of Origin	Shanghai, China
Model Number	SMART-2

SMART Series Biological Microscope

² Excellent infinity optical system, outstanding resolution and definition.

² Original integrated stand for excellent stability.

² Unique aspheric illumination system, provide bright and comfortable lighting.

² Various colorful matching looking can provide lively environment and happy mood.

² Various accessories for upgrading.

SMART Series Biological Microscope Outfits

Items	Specification	SMART-1	SMART-2	SMART-3
Eyepiece	WF 10X-18 mm	**
	WF 10X-20 mm		**	**
	WF 16X-13 mm#		#	#
	Reticule Eyepiece WF 10X-18 mm (0.1mm)	#	#	#
	Reticule Eyepiece WF 10X-20 mm (0.1mm)	#	#	#
Achromatic Objective	4X	*
	10X	*
	40X(S)	*
	100X/1.25 (Oil) (S)	*
	20X	#
	60X (S)	#
Plan Objective	4X		*
	10X		*
	40X/0.65 (S)		*
	100X/1.25 (Oil) (S)		*
	20X		#
	60X (S)		#
Infinity E-Plan Objectives	4X			*
	10X			*
	40X (S)			*
	100X (Oil) (S)			*
	Plan 20X			#
	Plan 60X (S)			#
Seidentopf Binocular Head	Inclined 30°,Rotatable 360°, Interpupilary Distance 50-75mm	*	*	*
Seidentopf Trinocular Head	Inclined 30°,Rotatable 360°, Interpupilary Distance 50-75mm, Light Distribution: 20:80	#	#	#
Nosepiece	Quadplex	*	*	*
	Stage Size: 145X140mm Travel: 76mmX52mm, Scale: 0.1mm Coaxial Coarse and Fine Focusing Knobs Travel Range: 26mm, Scale: 2um Two Slide Holder	*	*	*
Condenser	Abbe N.A. 1.25(Iris Diaphragm)	*	*	*
Illumination	6V/20W Halogen Lamp	*	*	*
	6V/30W Halogen Lamp	#	#	#
	3W-LED Illumination Systems (non-rechargeable)	#	#	#
	0.3W-LED Illumination Systems (Rechargeable)	#	#	#
Field Diaphragm		#	#	#
Dark Field Unit	N.A.0.9 (Dry)	#	#	#
Polarizing Attachment	Analyzer/Polarizer	#	#	#
Independent phase contrast unit	10X /20X /40X /100X			#
Fluorescence unit	Epi Fluorescence unit (three-hole slide) (B,G, 100W mercury lamp )	#	#	#
Fluorescence unit	Epi Fluorescence unit (three-hole slide) (B,G, 3W-LED lamp )	#	#	#
Filter	Blue	*	*	*
	Green	#	#	#
	Yellow	#	#	#
C-Mount	0.47X (Focus adjustable)	#	#	#
C-Mount	1X	#	#	#
Mirror		#	#	#
Wire winding device		#	#	#

Note: "*"In Table Is Standard outfits, "#" Is Optional Accessories.

Packing Size: 420mm×275mm×450mm Gross Weight: 7.5 kgs Net Weight: 6.5 kgs

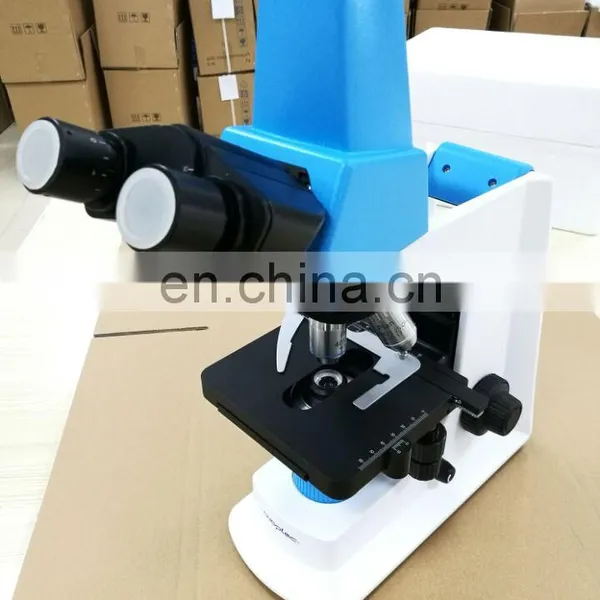

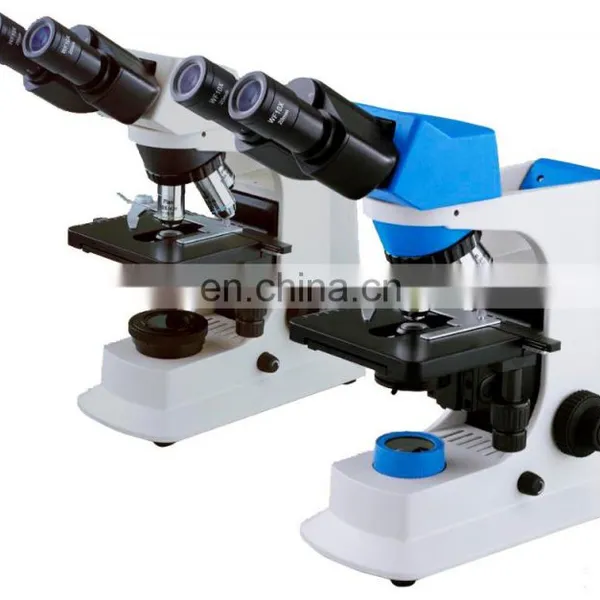

Product display

case

company profile

exhibition

FAQ

payment methods

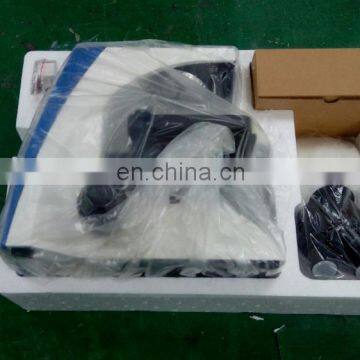

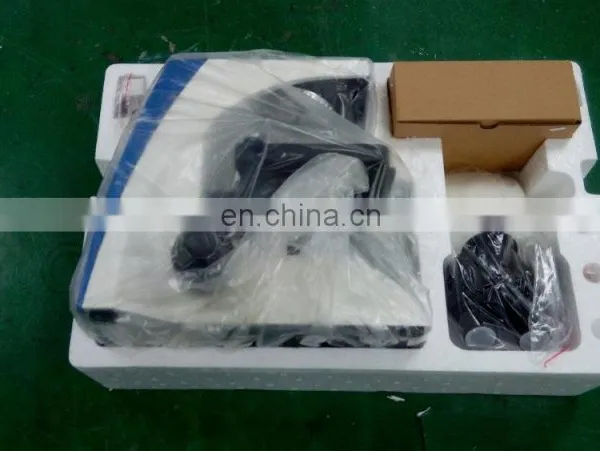

packing
