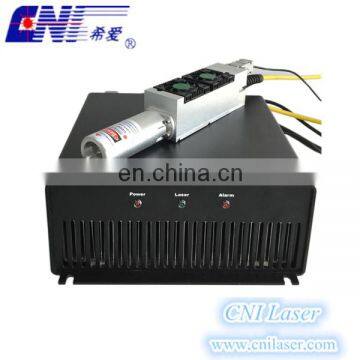

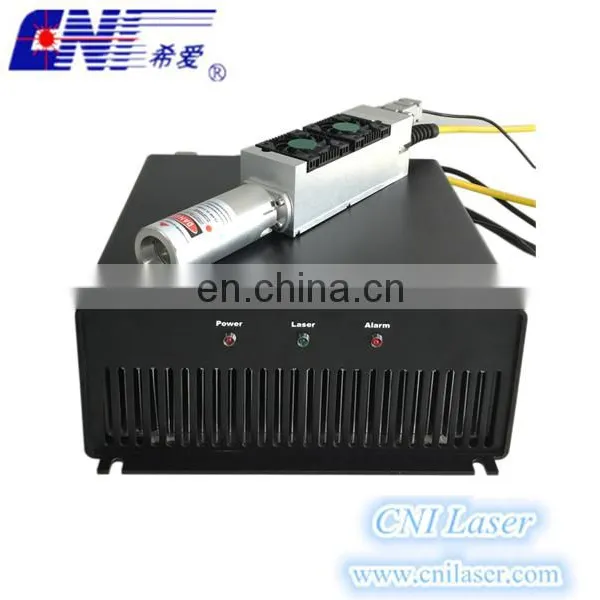

532nm Green Laser Marking Source for PPR/PVC/Plastic/Glass

Features

Application

532nm wavelength semi cold light source, suitable for sensitive materials.

FL-532 series laser based on the advantages of short pulse duration and low heat effect, can be widely used in food and drug plastic packing bag marking.

5ns short pulse duration, short acting time, low heat effect.

Small volume can match with market mainstream rack.

Scientific research quality standard, <1% power stability.

No touch, no bubbles and burnt after marking, fully meet the safety requirement of food and drug packaging.

Industrial product flow, 12 quality inspection procedures, stable and reliable product quality.

Specifications

Wavelength (nm)

532±1

Work pattern

Q-switched

Model

FL-532-1.5W

FL-532-3W

Average output power (W)

~1.5W

~3W

Pulse width (ns)

~5ns

Peak power  (kW)

~15kW

~30kW

Pulse repetition rate (kHz)

~20kHz

Power stability (rms, over 8 hours)

<1%, <3%

Transverse mode

TEM₀₀

Beam divergence, full angle (mrad)

<2mrad

Beam diameter at aperture (mm)

~6.0mm

Beam height from base plate (mm)

16.5mm

Operating Temp. (℃)

10~35℃

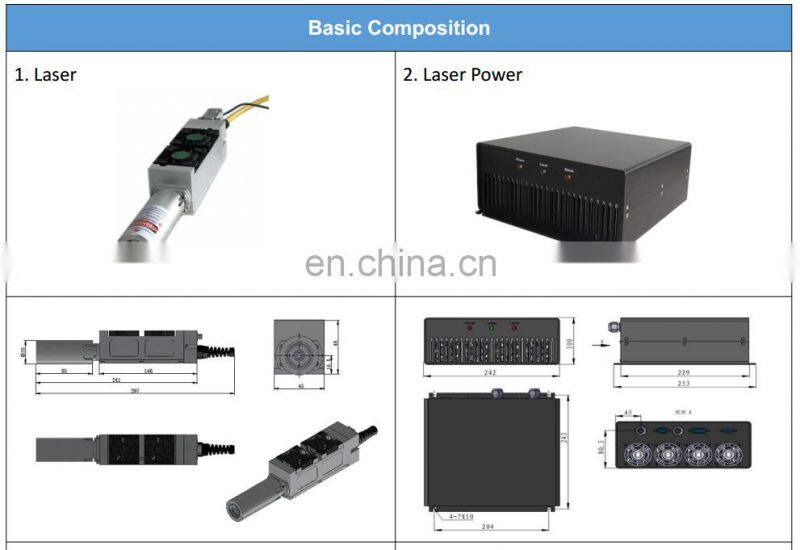

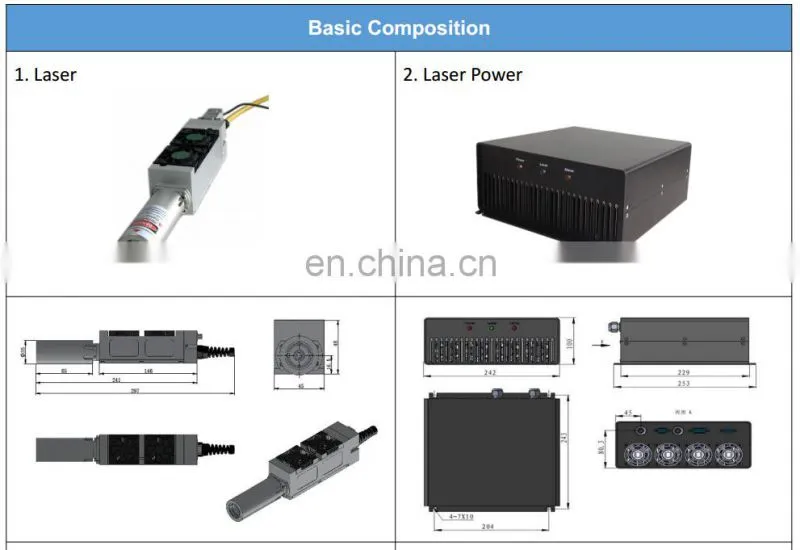

Laser head size

297(L)×45(W) ×48(H) mm3, 0.9 kg

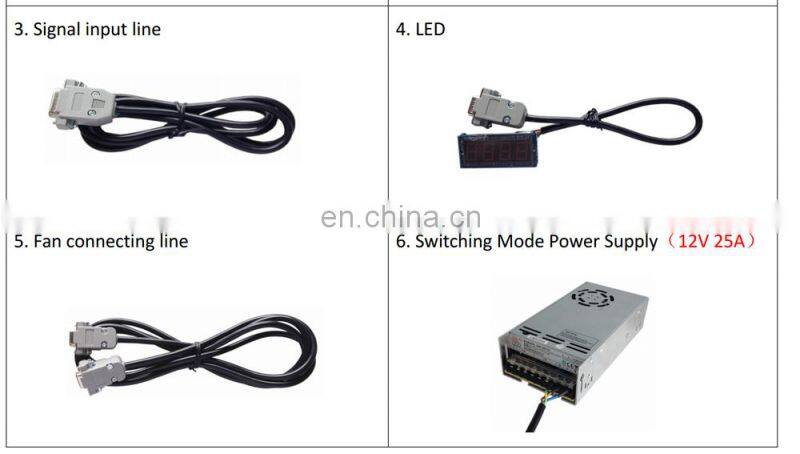

Power supply(12VDC)

PSU-FL-FDA (12V/25A DC ) Portable power supply 253(L) ×242(W) ×100(H) mm3, 5.5 kg

Expected lifetime (hours)

20000

Warranty

1 year

A perfect alternative of fiber laser for marking application.

Marking Samples

PPR,PVC,PET

PC,ABS,HIPS

Fruit/Egg

Glass
