3W~ 6W 1064nm Laser for Marking Metal

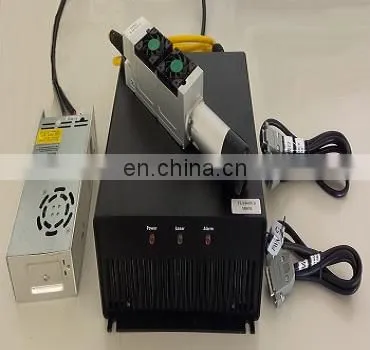

3W~ 6W 1064nm Laser for Marking Metal photo-1
US$ 900 - 1,080 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
CNI
Place of Origin:
Jilin, China
Model Number:
FL-1064
Payment & Shipping
Payment Methods:
Port of Shipment:
Changchun
Delivery Detail:
Delivery time depends on order quantity.
Brand Name CNI
Place of Origin Jilin, China
Model Number FL-1064
Product Description

CNI Q-switched DPSS lasers have the advantages of high peak power, narrow pulse duration <2ns and compact dimension, these lasers are widely used in laser process technology, such as rapid laser shaping, laser welding, laser cutting, laser drilling, laser marking, laser weight adjusting balance, laser etching, laser trimming, laser cleaning, laser heat-treatment and surface treatment.

Features

40~100kW peak power, higher than ordinary fiber laser marking machine.

2ns short pulse duration, short acting time, low heat effect.

Small volume can match with market mainstream rack.

Scientific research quality standard, <1% power stability.

Industrial product flow, 12 quality inspection procedures, stable and reliable product quality.

Specifications
 Specifications for 1064nm Laser for marking metal
Wavelength (nm)
1064±1
Work pattern
Q-switched
Model
FL-532-1.5W
FL-532-3W
Average output power (W)
~3W
~6W
Pulse width (ns)
~5ns
~8ns
Peak power (kW)
~30kW
Pulse repetition rate (kHz)
~20kHz
Power stability (rms, over 8 hours)
<1%, <3%
Transverse mode
TEM00
Beam divergence, full angle (mrad)
<1.5mrad
<2mrad
Beam diameter at aperture (mm)
~6.0mm
Beam height from base plate (mm)
16.5mm
Operating Temp. (℃)
10~35℃
Laser head size
297(L)× 45(W)× 48(H) mm3, 0.9 kg
Power supply(12VDC)
PSU-FL-FDA (12V/25A DC ) Portable power supply 253(L)×100(H) mm3, 5.5 kg 242(W)
Expected lifetime (hours)
20000
Warranty
1year
Marking Samples

                       Button

                      jewellery

                   Illumination

                              Metal

Certifications
Packing & Delivery
Company Information

    Changchun New Industries (CNI) founded in 1996, located in Changchun, CHINA, is a leading manufacturer of solid-state and diode laser systems. Our products include green laser, blue laser, yellow laser, red laser, RGB laser, infrared laser, UV laser, single longitudinal mode laser and Q-switched laser systems. CNI lasers are featured with high performance, low cost and excellent laser beam quality, which are specifically designed for OEM, scientific, industrial and instrumentation use. In addition, CNI lasers are ISO-9001, FDA, CE and JQA certified.

    CNI also provides laser components and accessories, we aim to offer customers complete laser solutions for all solid state lasers, diode lasers, laser marking system with our most convenient and rapid service.

Exhibitions
Contact Us

FAQ

1. What about the delivery?

      TNT     UPS     FEDEX     DHL

2. What about the warranty?

       For 1 year

3.How to pay?

      T/T     Western Union


4. How to visit our factory?

 You can contact us by following ways to apply for visiting our factory:

(1) International Tel: +86-431-85603799

(2) Fax: +86-431-87020258

5. How to find nore product of our company?

 Search our web to find more products(including more contact way )
