Diamind Marking Laser, Diamond waist line marking code, LOGO, scribe
CNI can offer laser source for diamond marking:
| Features |
| • Good laser beam quality, small focusing spot |
| • Short material interaction time and minimal heat effect |
| • Repeat engraving, high positioning accuracy |
| • Nicely marking, anti-counterfeiting micro engraving |
| • Minimum character height 40 um |
| • Minimum marking line width 5 um |
| Applications |
| • Diamond waist line marking code, LOGO |
| • Jewelry factory, diamond wholesalers |
| • Jewelry sales outlets, jewelry testing industry |
The total system of diamond marking is available on customers' request.
Features
Small volume, easy of use;
High micro marking speed, fine graphics, fine lines;
Repeat carving, make up carving, select carving, high repeat positioning accuracy.
Application Industries:

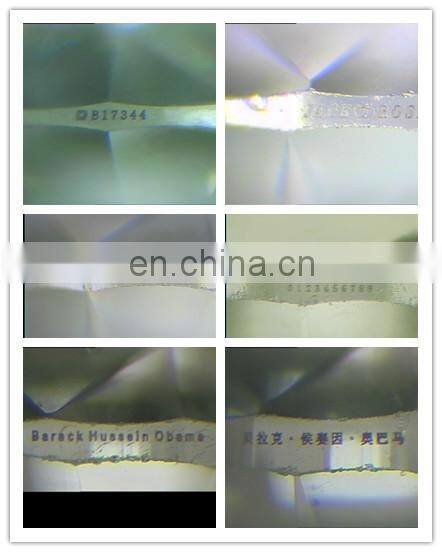

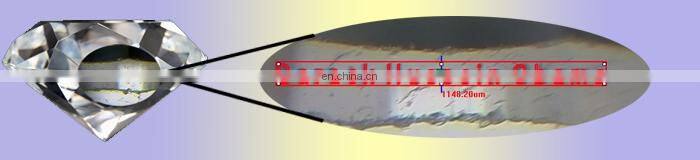

Suitable for the industries of a jewelry factory, diamond wholesalers and jewelry testing industry, which can accurately engraved on the diamond girdle such as product number or certificate number, LOGO, graphics, personalized imprint.
Repeat positioning accuracy | ±1μm |
Maximum marking line speed | 2mm/s |
Minimum marking character height | 40um |
Minimum marking line width | 5um |
Cooling method | Air cooled |
Power consumption | <200W |
Dimensions | 510mm(L)*415mm(W)*345mm(H) |
Weight | 30kg |
Lifetime | 10000 hours |
Warranty | 1 year |

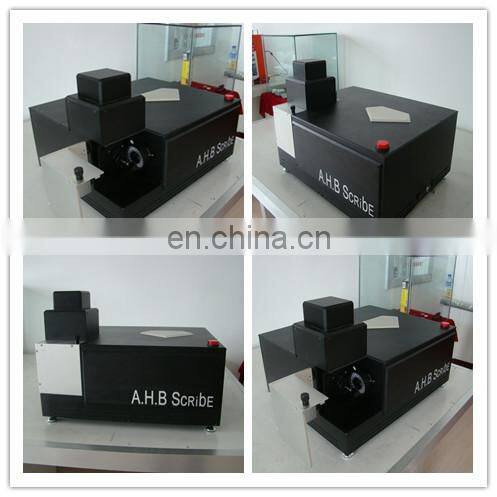

CNI laser released a diamond laser marking machine which is researched and designed by a number of domestic famous laser, optical design and NC experts in CIOMP.
It is characterized by:
1. Using the independent research and development Q-switched lasers with international leading level; excellent beam quality, pulsed duration less than 3ns, very small thermal effect;
2.High-power beam expander and dual-band aberration focusing mirror is used in conjunction with the perfect design to a small focused spot to 5μ m ;
3.Using high precision X-Y-Z CNC electronic displacement platform, repeat positioning accuracy up to 1μ m;
4.The use of laser and CCD microscopy confocal aiming optical system to display the micron engraved diamond image and laser engraved lines clearly at the same time, and the operator eyes don't fatigue;
5.Specially designed software to input and edit any text and graphics, easy to operate;
6. Operation lifetime >20000 hours, total power consumption <200 W, air-cooled, no need to maintance.
