Desktop Raman Spectrometer With Adjustable and Stable Excitation Laser Source for Diamond Tester

Changchun New Industries Optoelectronics Tech Co., Ltd.
Desktop Raman Spectrometer With Adjustable and Stable Excitation Laser Source for Diamond Tester thumbnail-1
Desktop Raman Spectrometer With Adjustable and Stable Excitation Laser Source for Diamond Tester photo-1
US$ 14,999 - 19,999 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
CNI
Place of Origin:
Jilin, China
Model Number:
T-RamanSys
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Changchun
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CNI
Place of Origin Jilin, China
Model Number T-RamanSys
Size 420x 272x 160 mm
Weight 1kg
Measurement Range 200-1100nm
Wavelength Range 200-1100nm
Focal Length 405±0.5
Specifications
Specifications for Desktop Raman Spectrometer

Laser

Wavelength (nm)
405±0.5
532±0.5
785±0.3
830±5
Mode
Single
Single
Single
Multi-
Spectral line width (cm-1)
1.8
3.5/ 0.1/ 0.0003
<3.2
<28
Output power (mW)
1-500
1-1000
1-500
1-900
Power stability (pk-pk, 4 hours)
<1%,<3%,<5%
<1%,<3%,<5%
<2%
<1%,<3%,<5%
Parameter of fiber
100um@ 0.22NA
100um@ 0.22NA
100um@ 0.22NA
100um@ 0.22NA
Noise of amplitude(rms)
-
<0.5%
<0.5%,<1%
<0.5%,<1%
Operationg mode
CW
CW
CW
CW
Warm-up time(minutes)
<5
<10
<5
<5
Operating temperature (℃)
10-35
15-35
-10-40
-10-40
Expected lifetime (hours)
10000
10000
10000
10000
Warranty
1 year
1 year
1 year
1 year

Spectrometer


Wavelength range
-500nm405
(405nm excitation)
532-700nm
(532nm excitation)
785-1100nm
(785nm excitation)
830-1000nm
(785nm excitation)
Optical resolution
  8-12cm-1
(405nm excitation)
8-12cm-1
(532nm excitation)
5-8cm-1
(785nm excitation)
5-7cm-1
(830nm excitation)
Pixels
2048 pixels
Pixels size
14um*14um
Dimensions (mm)
149*109*50
Weight (g)
1000
Signal-to-noise ratio
1000:1
Integration time
17ms-10s
Power consumption
450mA@ 5VDC

Data transfer speed
Full scans into memory every 4 milliseconds with USB 2.0
Full scans into memory every 18 milliseconds with USB 1.1
Inputs/outputs
5 inputs and 5 outputs ports
Analog channels
One 12 analog input one 12 analog output
Connector
30pin connector

Basic Composition


RPB-405 Raman probe
RPB-532 Raman probe
RPB-785 Raman probe
RPB-830 Raman probe
405 Fiber laser
405 Fiber laser
785 Fiber laser
830 Fiber laser
Fiber spectrometer: Raman Standard: Sunshine TG-Raman
PC data processing unit
Man-machine interface

Software

Optical spectrum analysis
Spectral Analysis / Raman Analysis 2.0
Operating system
Windows XP/Win7 (32bits or 64 bits)

Applications:

(1)  Raman spectral analysis

(2)  Chemical or biological research

(3)  Environmental sciences

(4)  Diamond identification

(5)  Food safety testing

(6)  Judicial identification

(7)  Pharmaceutical and medical diagnosis

(8)  Geological exploration

(9)  Hazard detection

Main Features:

(1) Spectrometer resolution:
       T-RamanSys-405:<12cm-1

       T-RamanSys-532: <12cm-1
       T-RamanSys-785: <5cm-1
(2) Broad spectral range, Raman drift range:
       T-RamanSys-405:300-4700cm-1
       T-RamanSys-532: 200-4500cm-1
       T-RamanSys-785: 175-4000cm-1
(3) Customized wavelength range and resolution:
       Fit various applications
      Compatible with software Raman Analysis 2.0

Characteristic:

(1) Dimensions: 420x 272x 160 mm
(2) With adjustable and stable 405/ 532/ 785 excitation laser source
(3) Raman probes can be connected externally
(4) Simple, fast measurement and easy operation

(5 )Function with matching library and searching, provided convenient self-built library function

(6) Flexible and stable sampling, various forms in analyzing samples
(7) External power supply (charging), with vehicle-mounted charger
(8) Dustproof, waterproof, anti-vibration, Anti-glare interference in wild environment usage

Applications

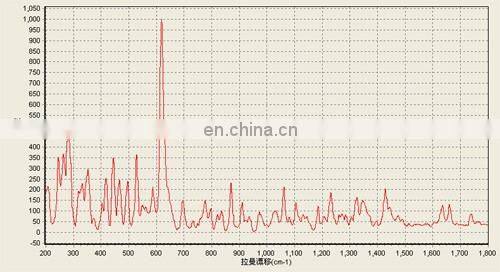

Raman spectrogram

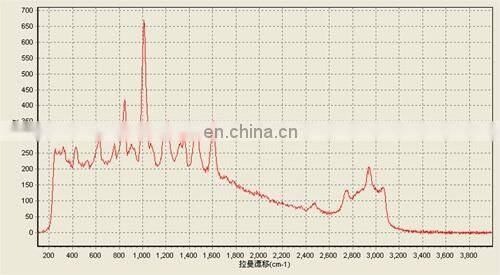

Raman spectrogram of drags


Raman spectrogram of drags

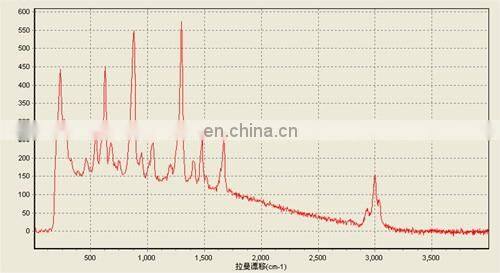

Raman spectrogram of TNT

Raman spectrogram of PETN

Accessories

Optical Filter



Laser Power Meter

              Laser Goggles


Spectrum Calibration Laser

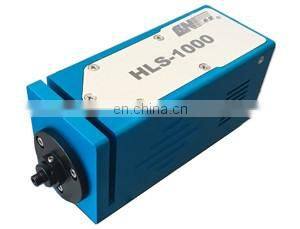

HLS-1000 Halogen Tungsten Light Source


Laser Safety Protection Board
