355nm High Energy Diode Pumped All-Solid-State Q-switched Laser

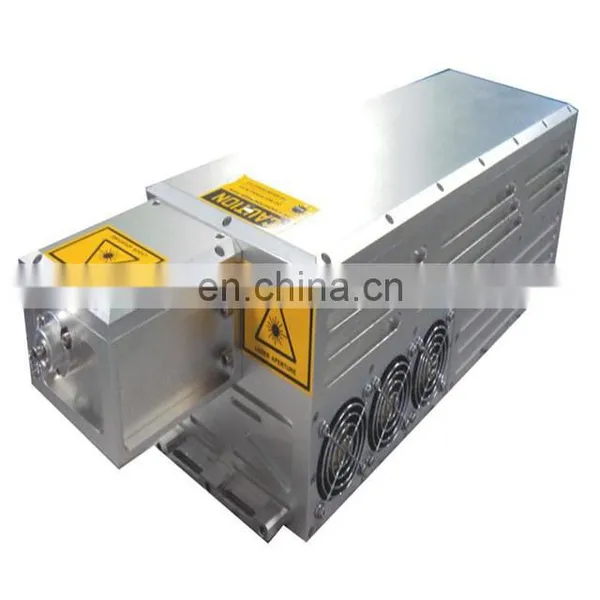

355nm High Energy Diode Pumped All-Solid-State Q-switched Laser photo-1
US$ 16,445 - 28,405 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
CNI
Place of Origin:
Jilin, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Changchun
Delivery Detail:
Delivery time depends on order quantity.
Brand Name CNI
Place of Origin Jilin, China
Product Description

High energy laser includes lamp pumped (LPS series) and diode pumped (DPS series) lasers. It is widely used in medical, military defense, scientific research, material processing and industrial applications. Available with 266 nm, 355 nm, 532 nm, 1064 nm, 1573 nm, etc... The single pulsed energy of 532 nm green laser can be up to 450 mJ and the energy of 1064 nm infrared laser can be up to 20 J.

High energy diode pumped all solid state Q-switched laser at 355nm has the features of high single pulse energy,short pulse duration,and high peak power,which is widely used in LIBS, LIF, PIV, ICP-MS,LCD repair, scientific research, laser processing, military ,and so on.

SPECIFICATIONS
Wavelength (nm)
355±1
Operating mode
Q-switched: EOM (Electro-optic modulation)
Single pulse energy (mJ)
2
5
10
Pulse duration (ns)
<10
Rep. rate (Hz)
1~100 (adjustable)
Energy stability
<4%
Beam divergence, full angle (mrad)
<3
Beam diameter (mm)
~2
~2.5
~3
Warm-up time (minutes)
<15
Beam height from base plate (mm)
55
Cooled method
Water Cooled
Operating temperature (℃)
15~30
Power supply (220VAC)
PSU-DPS-Q-I
Expected lifetime (pulses)
109
Warranty period
1 year

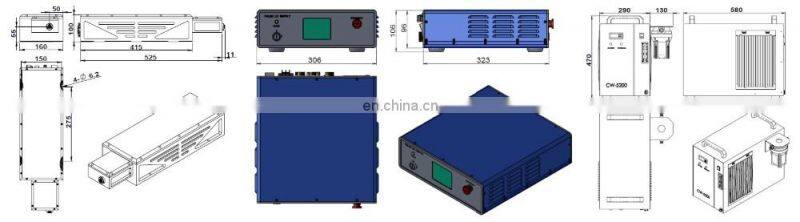

Dimensions
Packaging & Delivery
Certifications
Company Information

Changchun New Industries (CNI) founded in 1996, located in Changchun, CHINA, is a leading manufacturer of solid-state and diode laser systems. Our products include green laser, blue laser, yellow laser, red laser, RGB laser, infrared laser, UV laser, single longitudinal mode laser and Q-switched laser systems. CNI lasers are featured with high performance, low cost and excellent laser beam quality, which are specifically designed for OEM, scientific, industrial and instrumentation use. In addition, CNI lasers are ISO-9001, FDA, CE and JQA certified.
CNI also provides laser components and accessories, we aim to offer customers complete laser solutions for all solid state lasers, diode lasers, laser marking system with our most convenient and rapid service.
