355nm High Energy Lamp Pumped Solid State Q-Switched Laser for 80-200mJ

355nm High Energy Lamp Pumped Solid State Q-Switched Laser for 80-200mJ photo-1
355nm High Energy Lamp Pumped Solid State Q-Switched Laser for 80-200mJ photo-2
355nm High Energy Lamp Pumped Solid State Q-Switched Laser for 80-200mJ photo-3
US$ 21,600 - 33,600 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
CNI
Place of Origin:
Jilin, China
Model Number:
LPS-355-L
Payment & Shipping
Payment Methods:
Port of Shipment:
Changchun
Delivery Detail:
Delivery time depends on order quantity.
Brand Name CNI
Place of Origin Jilin, China
Model Number LPS-355-L
Product Description

High energy laser includes lamp pumped (LPS series) and diode pumped (DPS series) lasers. It is widely used in medical, military defense, scientific research, material processing and industrial applications. Available with 266 nm, 355 nm, 532 nm, 1064 nm, 1573 nm, etc... The single pulsed energy of 532 nm green laser can be up to 450 mJ and the energy of 1064 nm infrared laser can be up to 20 J.

High energy lamp pumped solid state Q-switched laser at 355nm has the features of high single pulse energy,short pulse duration,and high peak power,which is widely used in LIBS, LIF, PIV, ICP-MS,LCD repair, scientific research, laser processing, military,and so on.

SPECIFICATIONS
Wavelength (nm)
355±1
Operating mode
Q-switched: EOM (Electro-optic modulation)
Single pulse energy (mJ)
100
150
200
Pulse duration (ns)
<10
Rep. rate (Hz)
1~10 (adjustable)
Energy stability
<3%
Beam divergence, full angle (mrad)
<3
Beam diameter (mm)
~7
Warm-up time (minutes)
<15
Beam height from base plate (mm)
80
Cooled method
Water Cooled
Operating temperature (℃)
15~35
Power supply (220/110VAC)
PSU-LPS-L (3U)
Expected lifetime (pulses)
108
Warranty period
1 year
Available Options
Higher repetition rates:≤20Hz; Jitter :~1ns (Sdev); Accessories
Dimentions

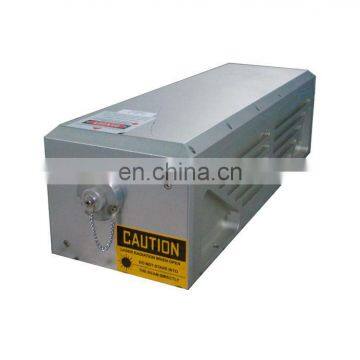

Laser Head---LPS-355-L

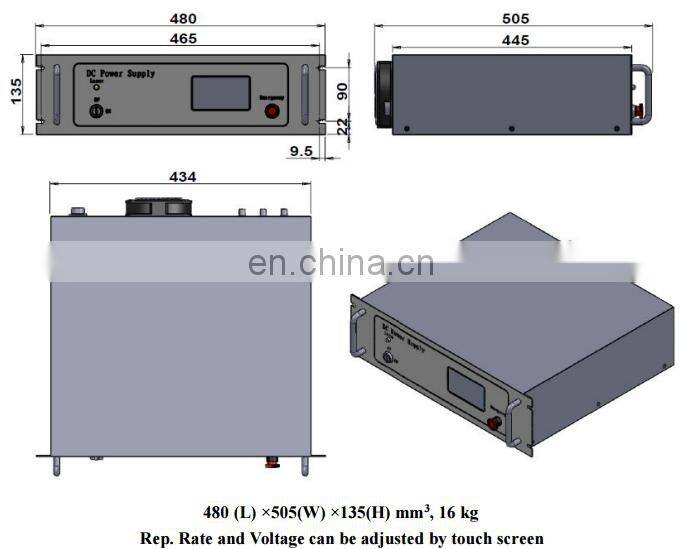

Power Supply---PSU-LPS-L (3U)
