Help Center100uJ 2000mW 532nm Green LD Pumped All Solid State Q-switched Laser
Related Products
-
800nm Infrared Laser Round BeamUS$ 1,050 - 2,800MOQ: 1 Unit -
CNI DPSS Actively Q-switched Laser at 532nmUS$ 14,500 - 32,700MOQ: 1 Unit
-
Picosecond Laser for Absorption Spectroscopy and Fluorescence ExcitationUS$ 6,760 - 8,450MOQ: 1 Unit
-
Ultra Compact DFB Laser as Gas Detector With Narrow LinewidthUS$ 3,380 - 5,070MOQ: 1 Unit
-
High Stability 532nm Laser for Confocal MicroscopyUS$ 1,180 - 1,690MOQ: 1 Unit
APPLICATIONS:
All solid state Q-switched laser at 532nm has the features of high peak power, high repetition rate, and short pulse duration, which is widely used in industry, such as marking on highly reflective metals, semiconductors, carbide, rubbers, ceramics and composites.
SPECIFICATIONS:
Wavelength (nm) |
532±1 |
||
Operating mode |
Q-switched pulsed laser |
||
Single pulse energy (µJ) |
1~100uJ |
||
Pulse duration (ns) |
~5
|
||
Peak power (kW) |
1~20 |
||
Rep. rate (kHz) |
Uncontrollable |
Undefined rep. rate among 25k-30kHz and unstable laser pulse emitting. Suitable for the applications only needing high peak power pulses. |
|
Average power (mW) |
Average power (mW) = Single pulse energy (µJ) * Rep. rate (kHz) |
||
Ave power stability (over 4 hours) |
<1%,<3%, <5% |
||
Transverse mode |
TEM00 |
||
Warm-up time (minutes) |
<10 |
||
M2 factor |
<1.5 |
||
Beam divergence, full angle (mrad) |
<2. 0 |
||
Beam diameter at the aperture (mm) |
~2. 0 |
||
Beam height from base plate (mm) |
84 |
||
Operating temperature (℃) |
10~35 |
||
Power supply (90-264VAC) |

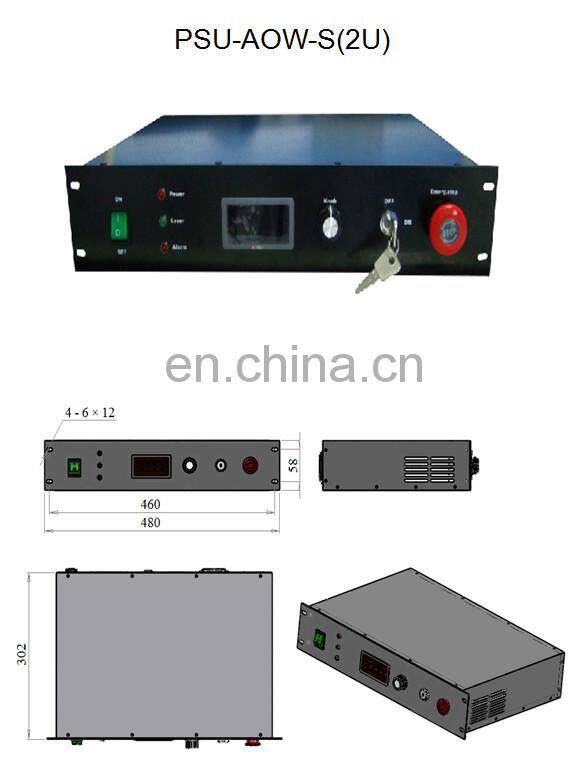

PSU-AOM-S(2U) |

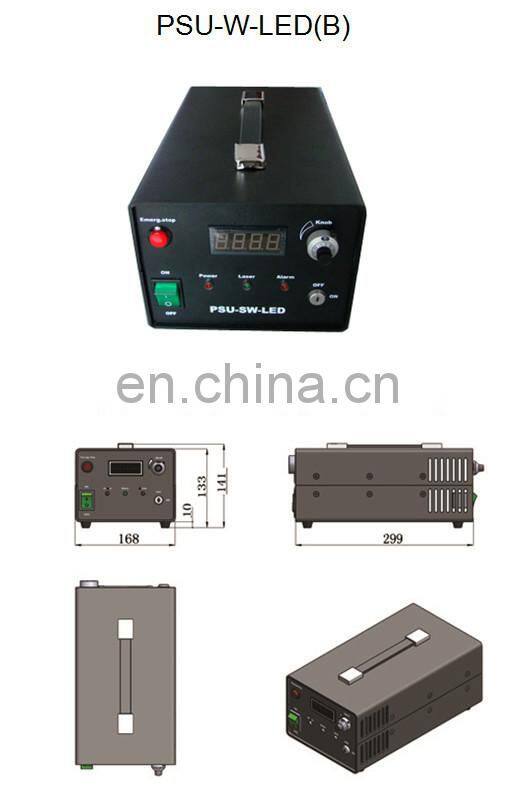

PSU-W-LED(B) |
|
Expected lifetime (hours) |
10000 |
||
Warranty period |
1 year |
||

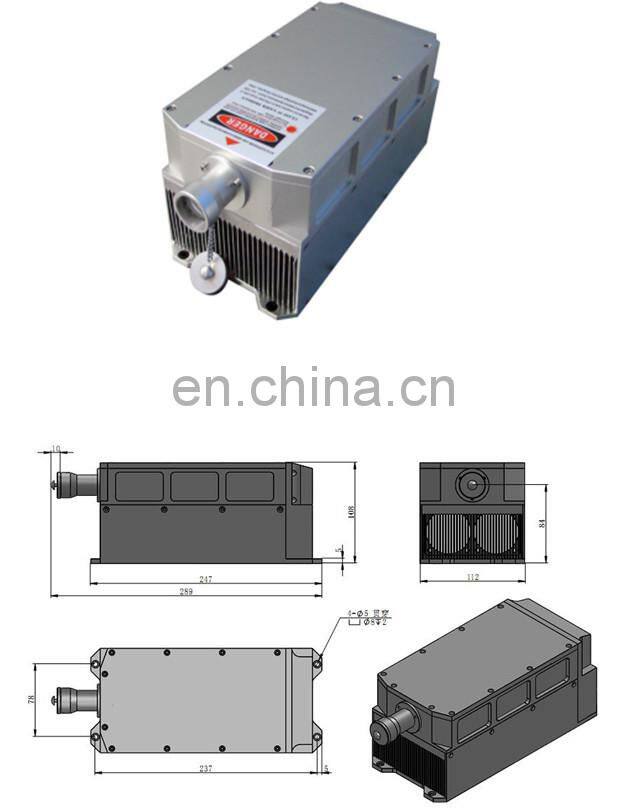

Laser Head
