CNI 500mw 577nm Yellow Laser Collimator

CNI 500mw 577nm Yellow Laser Collimator photo-1
US$ 2,808 - 7,800 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
CNI
Place of Origin:
Jilin, China
Payment & Shipping
Payment Methods:
Port of Shipment:
changchun
Delivery Detail:
Delivery time depends on order quantity.
Brand Name CNI
Place of Origin Jilin, China
Product Description

CNI DPSSL 500mw 577nm Yellow Laser

All solid state 577nm yellow laser is made features of ultra compact, long lifetime, cost -effectiveness and easy operating, which is widely used in collimation, laser medical treatment, scientific experiment, optical instrument, laser display, laser lighting show, etc.

Central wavelength (nm)
577±2
Operating mode
CW
Output power (mW)
>10, 20, 50, ..., 100mW
>100, ..., 500mW
Power stability (rms, over 4 hours)
<1%, <3%,<5%
<3%,<5%,<10%
Transverse mode
TEM00
M2 factor
<1.2
<1.5
Beam diameter at the aperture (1/e2,mm)
~1.0
Beam divergence, full angle (mrad)
<1.5
Beam height from base plate (mm)
27.4
Polarization ratio
>100:1 Horizontal±5 degree (Vertical Optional)
Warm-up time (minutes)
<10
Pointing stability after warm-up (mrad)
<0.05
Operating temperature (℃)
10~35
Power supply (90-264VAC)
PSU-H-LED
PSU-H-FDA
Modulation option
TTL on/off, 1Hz-1KHz
Expected lifetime (hours)
10000
Warranty period
1 year
Detailed Images

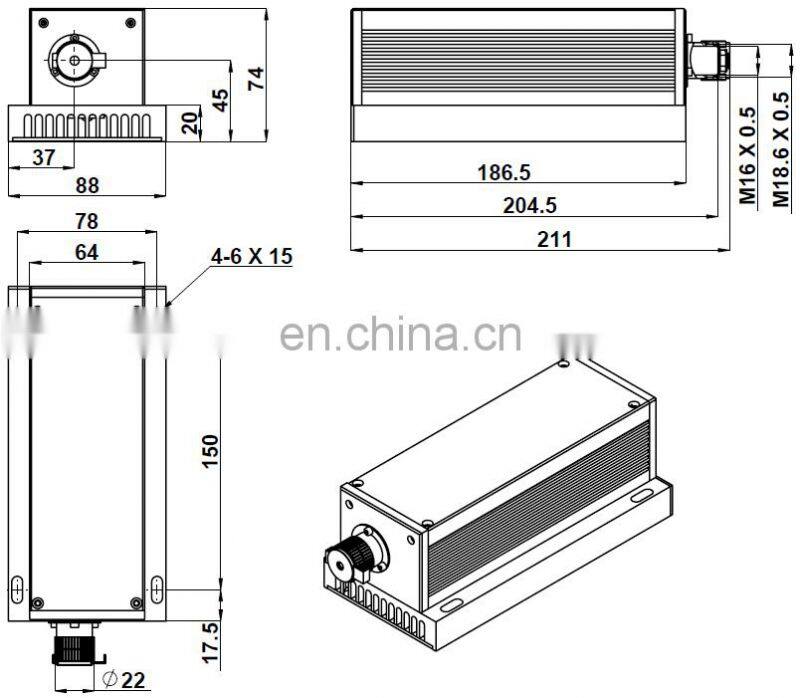

MGL-U-577nm Yellow Laser Head


211 (L) ×88 (W) ×74 (H) mm3, 1.6 kg

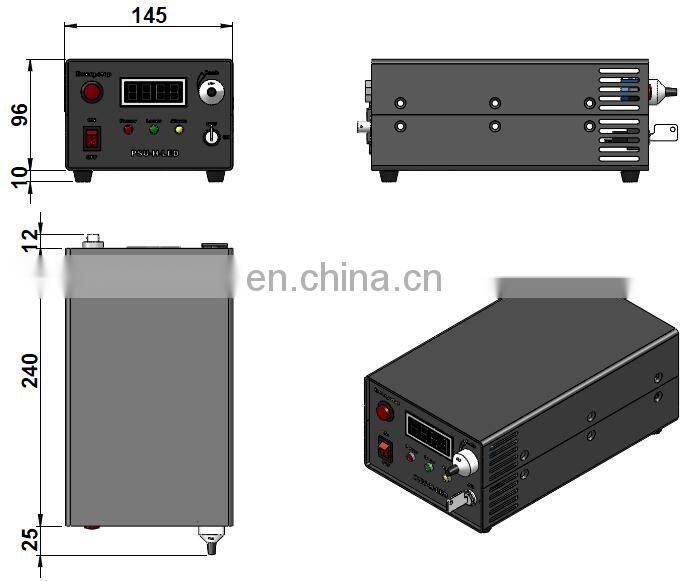

PSU-H-LED Power supply

277 (L) ×145 (W) ×106 (H) mm3, 2.6 kg

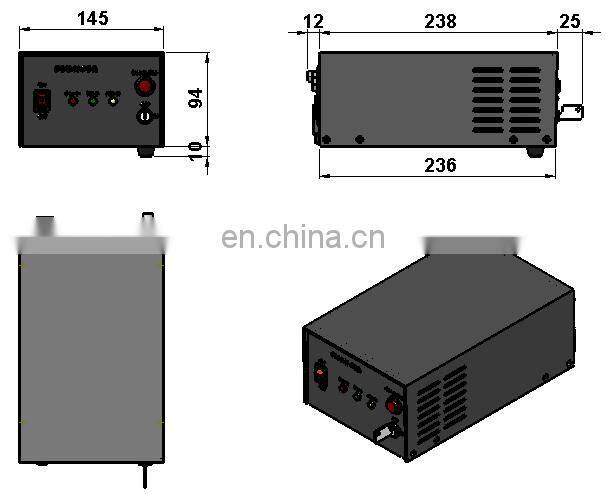

PSU-H-FDA Power supply


236 (L) ×145 (W) ×104 (H) mm3, 2.3 kg

Certifications
Packing & Delivery
Company Information

    Changchun New Industries (CNI) founded in 1996, located in Changchun, CHINA, is a leading manufacturer of solid-state and diode laser systems. Our products include green laser, blue laser, yellow laser, red laser, RGB laser, infrared laser, UV laser, single longitudinal mode laser and Q-switched laser systems. CNI lasers are featured with high performance, low cost and excellent laser beam quality, which are specifically designed for OEM, scientific, industrial and instrumentation use. In addition, CNI lasers are ISO-9001, FDA, CE and JQA certified.

    CNI also provides laser components and accessories, we aim to offer customers complete laser solutions for all solid state lasers, diode lasers, laser marking system with our most convenient and rapid service.
