532nm 1000mW Green Laser Module

FOB Price

US$ 2,000 - 3,400 / Unit

1 Unit(Min. Order)

Port ChangChun
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	CNI		Place of Origin	Jilin, China
Model Number	MGL-FN-532

Product Description

532nm 1000mW Green Laser Module

All solid state 532nm green laser is made features of high output power stability, good beam profile, ultra compact, long lifetime, low cost and easy operating, which is widely used in collimation, laser medical treatment, scientific experiment, optical instrument, etc.

SPECIFICATIONS

Wavelength (nm)	532±1
Operating mode	CW
Output power (mW)	>1, 5, 10, 20, … , 1000	>1000, 1100, …, 1500
Power stability (rms, over 4 hours)	<1%, <2%, <3%	<2%, <3%
Transverse mode	TEM00
M2 factor	<1.2(<1.1 optional)	<1.2
Beam diameter at the aperture (1/e2, mm)	~2.0
Beam divergence, full angle (mrad)	<1. 5
Beam height from base plate (mm)	27.4
Polarization ratio	>100:1 Horizontal±5 degree (Vertical Optional)
Warm-up time (minutes)	<10
Pointing stability after warm-up (mrad)	<0.05
Operating temperature (℃)	10~35
Power supply (90-264VAC)	PSU-H-LED	PSU-H-FDA
Modulation option	TTL on/off, 1Hz-1KHz, 1KHz-10KHz, 10KHz-30KHz; and Analog modulation option
Expected lifetime (hours)	10000
Warranty	1 year

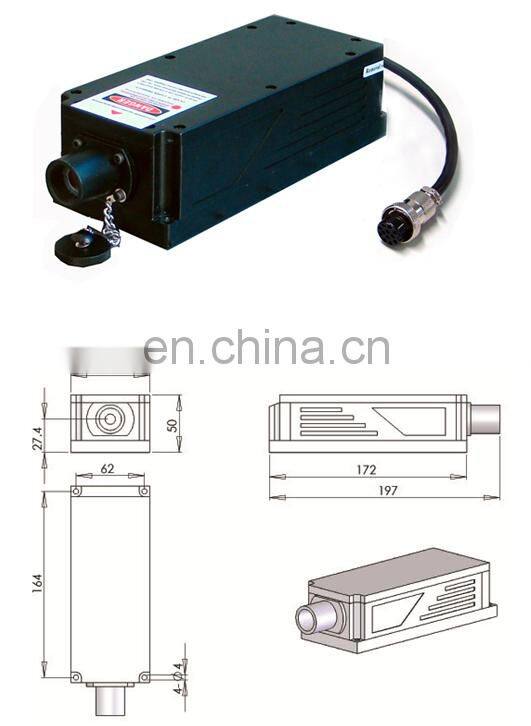

Dimensions

Laser Head---MGL-FN-532

Power Supply---PSU-H-LED

Power Supply---PSU-H-FDA

Certifications

Packing & Delivery

Company Information

Changchun New Industries (CNI) founded in 1996, located in Changchun, CHINA, is a leading manufacturer of solid-state and diode laser systems. Our products include green laser, blue laser, yellow laser, red laser, RGB laser, infrared laser, UV laser, single longitudinal mode laser and Q-switched laser systems. CNI lasers are featured with high performance, low cost and excellent laser beam quality, which are specifically designed for OEM, scientific, industrial and instrumentation use. In addition, CNI lasers are ISO-9001, FDA, CE and JQA certified.

CNI also provides laser components and accessories, we aim to offer customers complete laser solutions for all solid state lasers, diode lasers, laser marking system with our most convenient and rapid service.

Customer Visit

Exhibitions

FAQ

1. What about the delivery?

TNT UPS FEDEX DHL

2. What about the warranty?

For 1 year

3.How to pay?

T/T Western Union

4. How to visit our factory?

You can contact us by following ways to apply for visiting our factory:

（1） International Tel: +86-431-85603799

（2） Fax: +86-431-87020258

5. How to find more product of our company?

Search our web to find more products(including more contact way )
