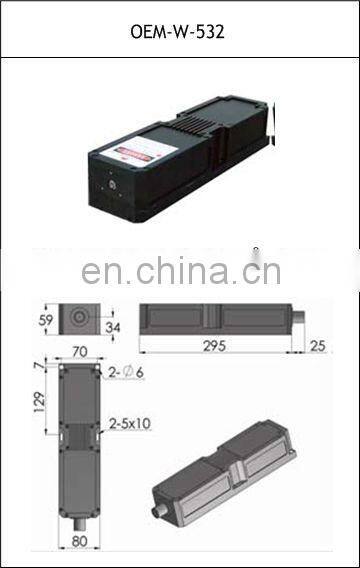

532nm 8W Green Laser

Wavelength (nm)

532±1

Model

OEM-SW

OEM-W

Output power (mW)

>5000, 6000…, 9000

10000, …, 18000

Transverse mode

Near TEM₀₀

Operating mode

CW

Power stability (rms, over 4 hours)

<1%, <3%, <5%, <10%

Warm-up time (minutes)

<10

M² factor

3.0-6.0

Beam divergence, full angle (mrad)

<17

Beam diameter at the aperture (mm)

~2. 0

Beam height from base plate (mm)

34

Polarization ratio

>100:1

Pointing stability after warm-up (mrad)

<0.05

Operating temperature (°C)

22.5+/-2.5

Modulation option

TTL on/off, 1Hz-1KHz, 1KHz-10KHz, 10KHz-30KHz; and Analog modulation option

Expected lifetime (hours)

10000

Warranty time

The warranty is 3 months, excluding the LD failure.
