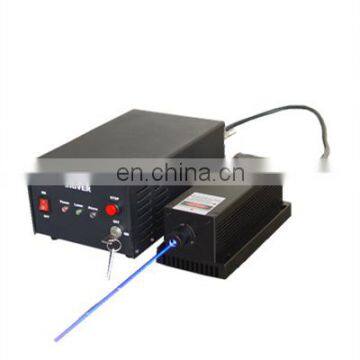

50mW 488nm Blue Laser for Medical Imaging

50mW 488nm Blue Laser for Medical Imaging photo-1
50mW 488nm Blue Laser for Medical Imaging photo-2
50mW 488nm Blue Laser for Medical Imaging photo-3
US$ 2,500 - 4,290 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
CNI
Place of Origin:
Jilin, China
Model Number:
MDL-III-488L
Payment & Shipping
Payment Methods:
Port of Shipment:
Chancghun
Delivery Detail:
Delivery time depends on order quantity.
Brand Name CNI
Place of Origin Jilin, China
Model Number MDL-III-488L
Product Description

50mW 488nm blue laser for medical imaging

It features ultra compact design, long lifetime, cost-effectiveness and easy operation. They are used in medical imaging, flow cytometry, DNA sequencing, etc.

Central wavelength (nm)
488±5
Operating mode
CW
Output power (mW)
>1, 10, 20, …, 50
Power stability (rms, over 4 hours)
<1%, <2%, <3% (<0.5%, optional)
Transverse mode
Near TEM00
M2 factor
<2.0 (<1.5 optional)
Beam diameter at the aperture (1/e2,mm)
~3.5
Beam divergence, full angle (mrad)
~1.0
Polarization ratio
>50:1 (>100:1, optional)

Horizontal±5 degree (Vertical Optional)
Warm-up time (minutes)
<5
Pointing stability after warm-up (mrad)
<0.05
Beam height from base plate (mm)
24.8
Operating temperature (℃)
10~35

Power supply
85-264VAC
PSU-III-LED/ PSU-III-FDA (Frequency for 1Hz-30kHz)
100-240VAC
PSU-A-D (Frequency for 30kHz -100kHz)
TTL / Analog modulation
TTL or Analog with 1Hz-1kHz 1kHz-10kHz, 10kHz-30kHz, 30kHz-100kHz optional
Expected lifetime (hours)
10000
Warranty
1 year
Dimensions

Laser Head

Power Supply

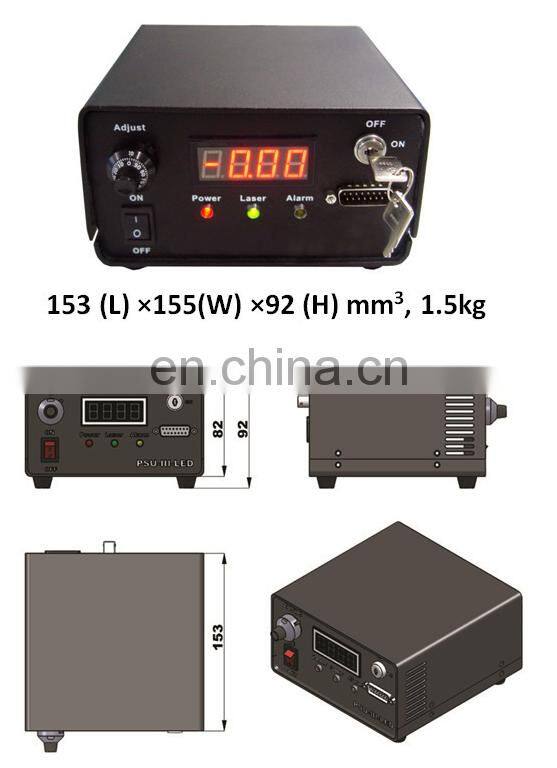

PSU-III-LED

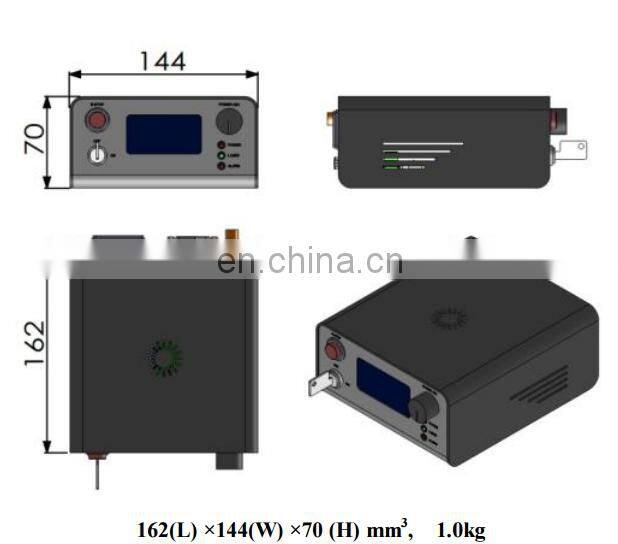

PSU-III-FDA

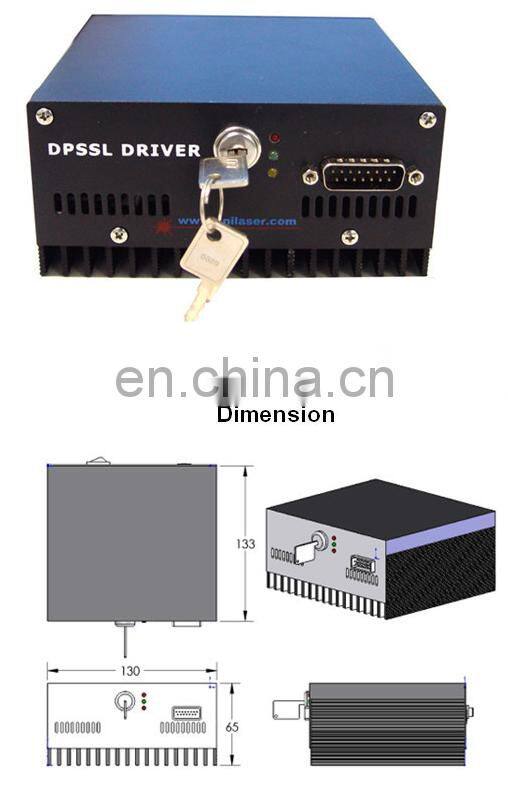

PSU-A-D

Certifications
Company Information

    Changchun New Industries (CNI) founded in 1996, located in Changchun, CHINA, is a leading manufacturer of solid-state and diode laser systems. Our products include green laser, blue laser, yellow laser, red laser, RGB laser, infrared laser, UV laser, single longitudinal mode laser and Q-switched laser systems. CNI lasers are featured with high performance, low cost and excellent laser beam quality, which are specifically designed for OEM, scientific, industrial and instrumentation use. In addition, CNI lasers are ISO-9001, FDA, CE and JQA certified.

    CNI also provides laser components and accessories, we aim to offer customers complete laser solutions for all solid state lasers, diode lasers, laser marking system with our most convenient and rapid service.
