All solid state single longitudinal mode red laser at 660nm is made features of ultra compact, long lifetime, low cost and easy operating, which is used in DNA sequencing, flow cytometry, cell sorting, optical instrument, spectrum analysis, interference, measurement, holography, physics experiment, etc.
Model |
MSL-FN-660 |
||
Central wavelength (nm) |
660±1 |
||
Operating mode |
CW |
||
Output power (mW) |
>1, 2, 3, … , 20 |
||
Power stability (rms, over 4 hours) |
<3%, <5% |
||
Transverse mode |
TEM00 |
||
Longitudinal mode |
Single |
||
Spectral linewidth (nm) |
<0.00001 |
||
Coherent length (m) |
>50 |
||
Noise of amplitude (rms, 1Hz~20MHz) |
<1%,typical<0.5% |
||
M2 factor |
<1.2 |
||
Beam diameter at the aperture 1/e 2 (mm) |
<2.0 |
||
Beam divergence, full angle (mrad) |
<1.2 |
||
Warm-up time (minutes) |
<10 |
||
Pointing stability after warm-up (mrad) |
<0.05 |
||
Beam height from base plate (mm) |
27.4 |
||
Operating temperature (℃) |
15-35 |
||
Power supply (100-240VAC) |
PSU-H-FDA |
||
Expected lifetime (hours) |
10000 |
||
Warranty period |
1 YEAR |
||

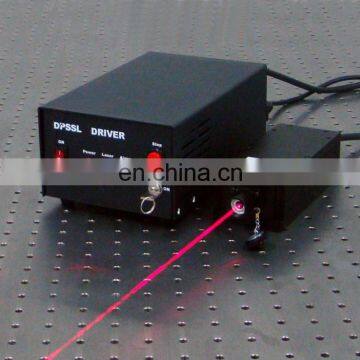

MSL-FN-660 Laser Head and Power Supply
Changchun New Industries (CNI) founded in 1996, located in Changchun, CHINA, is a leading manufacturer of solid-state and diode laser systems. Our products include green laser, blue laser, yellow laser, red laser, RGB laser, infrared laser, UV laser, single longitudinal mode laser and Q-switched laser systems. CNI lasers are featured with high performance, low cost and excellent laser beam quality, which are specifically designed for OEM, scientific, industrial and instrumentation use. In addition, CNI lasers are ISO-9001, FDA, CE and JQA certified.
CNI also provides laser components and accessories, we aim to offer customers complete laser solutions for all solid state lasers, diode lasers, laser marking system with our most convenient and rapid service.
