Help Center532nm CW Green Laser For Scientific Experiment
Related Products
-
532nm CW Green Laser For Scientific ExperimentUS$ 3,000 - 3,250MOQ: 1 Unit -
532nm CW Small Size Green LaserUS$ 1,775 - 2,366MOQ: 1 Unit
-
532nm CW High Power Green Laser For Scientific ExperimentUS$ 3,900 - 7,240MOQ: 1 Unit
-
532nm CW Green Laser For Scientific ExperimentUS$ 1,950 - 2,850MOQ: 1 Unit
-
532nm CW High Power Green LaserUS$ 8,450 - 20,280MOQ: 1 Unit
All solid state 532nm green laser is made features of high output power stability, good beam profile, ultra compact, long lifetime, low
cost and easy operating, which is widely used in collimation, laser medical treatment, scientific experiment, optical instrument, laser
display, laser lighting show, etc
Modle | MGL-III-532 |
Wavelength (nm) | 532±1 |
Operating mode | CW |
Output power (mW) | 1-200 |
Power stability (rms, over 4 hours) | <1%, <2%, <3% |
Transverse mode | TEM00 |
M2factor | <1.2(<1.1 optional) |
Beam diameter at the aperture 1/e2(mm) | ~1.2 |
Beam divergence, full angle (mrad) | <1.5 |
Polarization ratio | >100:1, Horizontal±5 degree (Vertical Optional) |
Warm-up time (minutes) | <10 |
Beam height from base plate (mm) | 24.8 |
Pointing stability after warm-up (mrad) | <0.05 |
Operating temperature (℃) | 10-35 |
Power supply (90-264VAC or 5VDC) | PSU-III-LED/PSU-III-FDA/PSU-OEM-97 |
Modulation option | TTL on/off, 1Hz-1KHz, 1KHz-10KHz, 10KHz-30KHz; and Analog modulation option |
Expected lifetime (hours) | 10000 |
Warranty period | 1 YEAR |

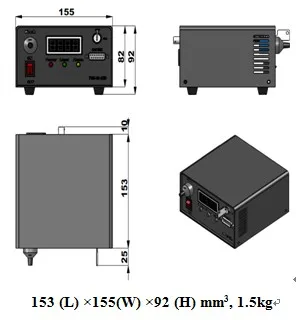

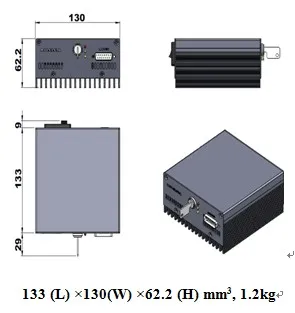

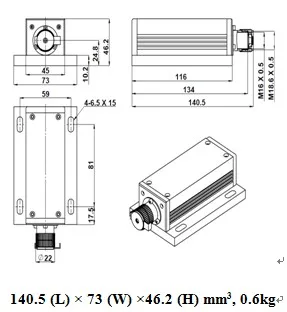

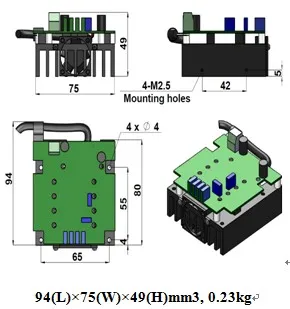

MGL-III-532 Laser Head and Power Supply
Changchun New Industries (CNI) founded in 1996, located in Changchun, CHINA, is a leading manufacturer of solid-state and diode laser systems. Our products include green laser, blue laser, yellow laser, red laser, RGB laser, infrared laser, UV laser, single longitudinal mode laser and Q-switched laser systems. CNI lasers are featured with high performance, low cost and excellent laser beam quality, which are specifically designed for OEM, scientific, industrial and instrumentation use. In addition, CNI lasers are ISO-9001, FDA, CE and JQA certified.
CNI also provides laser components and accessories, we aim to offer customers complete laser solutions for all solid state lasers, diode lasers, laser marking system with our most convenient and rapid service.
