All solid state laser at 589nm is made features of ultra compact, long lifetime, low cost and easy operating, which is used in scientific experiment, optical sensor, measurement, instrument, communication, spectrum analysis, etc.
Model | MBL-III-589 | ||
Central wavelength (nm) | 589±1 | ||
Operating mode | cw | ||
Output power (mW) | 1-50 | >150, 200, 250, … ,500 | |
Power stability (rms, over 4 hours) at 25℃ | <2%, <3%,<5% | <2%, <3%, <5% | |
Transverse mode | TEM00 | Near TEM00 | |
M2 factor | <1.5 | <1.5 | |
Beam diameter at the aperture (1/e2, mm) | ~1.2 | ~3.0 | |
Beam divergence, full angle (mrad) | <1.5 | ||
Polarization ratio | >100:1 Vertical±5 degree (Horizontal Optional) | ||
Warm-up time (minutes) | <10 | ||
Pointing stability after warm-up (mrad) | <0.05 | ||
Beam height from base plate (mm) | 24.8 | ||
Operating temperature (℃) | 10-35 | ||
Power supply (90-264VAC) | PSU-III-LED/FDA/PSU-III-OEM-97 | ||
Modulation option | TTL on/off, 1Hz-1KHz, 1KHz-10KHz, 10KHz-30KHz; and Analog modulation option | ||
Expected lifetime (hours) | 10000 | ||
Warranty | 1 YEAR | ||

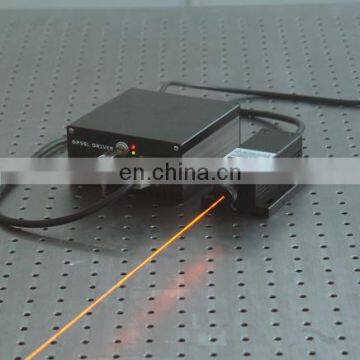

MGL-III-589 Laser Head and Power Supply
Changchun New Industries (CNI) founded in 1996, located in Changchun, CHINA, is a leading manufacturer of solid-state and diode laser systems. Our products include green laser, blue laser, yellow laser, red laser, RGB laser, infrared laser, UV laser, single longitudinal mode laser and Q-switched laser systems. CNI lasers are featured with high performance, low cost and excellent laser beam quality, which are specifically designed for OEM, scientific, industrial and instrumentation use. In addition, CNI lasers are ISO-9001, FDA, CE and JQA certified.
CNI also provides laser components and accessories, we aim to offer customers complete laser solutions for all solid state lasers, diode lasers, laser marking system with our most convenient and rapid service.
