UV High Modulation Frequency Narrow Pulse Duration Picosecond Pulse Fiber Laser

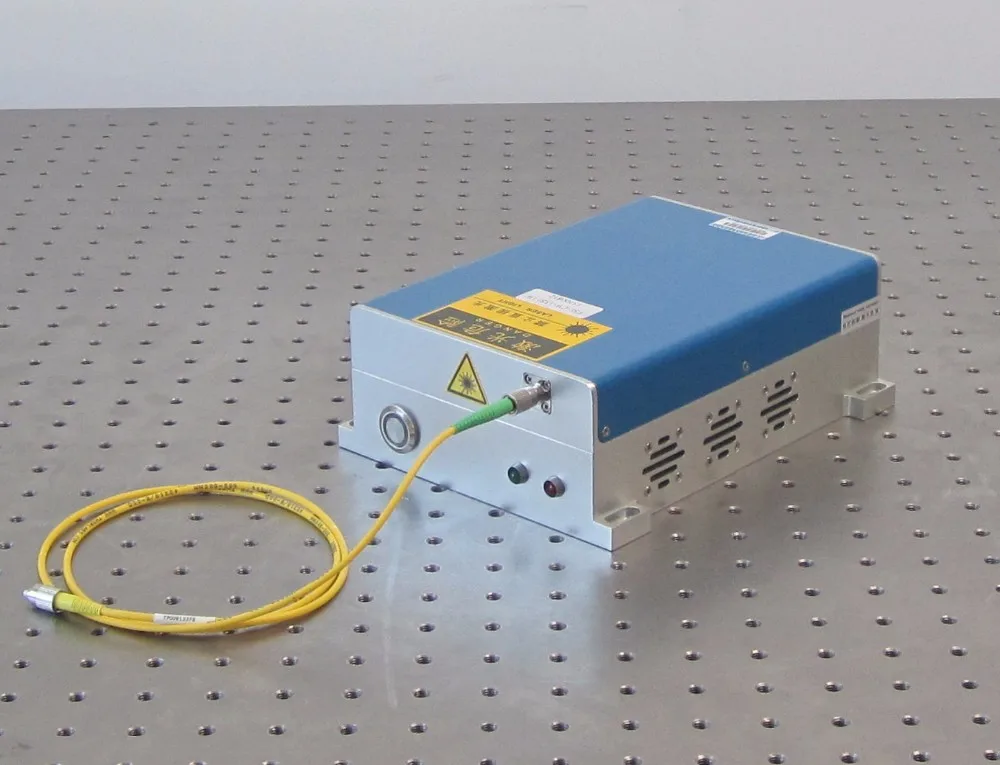

UV High Modulation Frequency Narrow Pulse Duration Picosecond Pulse Fiber Laser photo-1
US$ 11,000 - 13,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
CNI
Place of Origin:
Jilin, China
Payment & Shipping
Payment Methods:
Port of Shipment:
ChangChun
Delivery Detail:
Delivery time depends on order quantity.
Brand Name CNI
Place of Origin Jilin, China
Product Description

  Fiber Laser Series

  CNI offers fiber lasers with compact OEM modular design which is ideal for systems integration. They are widely used   in communication, radar, medical cosmetology, optical instrument, interference, holography, spectrum analysis, pump     source, measurement, physics experiment, etc. The 1550 nm fiber laser is in single longitudinal and polarized mode.       The pulsed mode up to 1 MHz modulation and pulse duration variation are also available.



         Applications:

           LIDAR

           Wind sensing

           Security

           Experimental research



Detailed Images

   SPECIFICATIONS:

Wavelength (nm)
266±1/343±1/355±1
Operating mode
Passive mode-locked
Output power (mW)
5-50
Power stability (rms, over 4 hours)
<3% <5%
Pulse width (ps)
<10
M 2 factor
<2
Repetition frequency (MHz)
One fixed value between(20-50)±1 MHz
Polarization ratio
> 15dB
Warm-up time (minutes)
<15
Beam height from base plate (mm)
30
Beam height from base plate (mm)
variable
Operating temperature (℃)
15~35
Power supply
220V AC / 5V DC
Expected lifetime (hours)
10000
Warranty
1 year

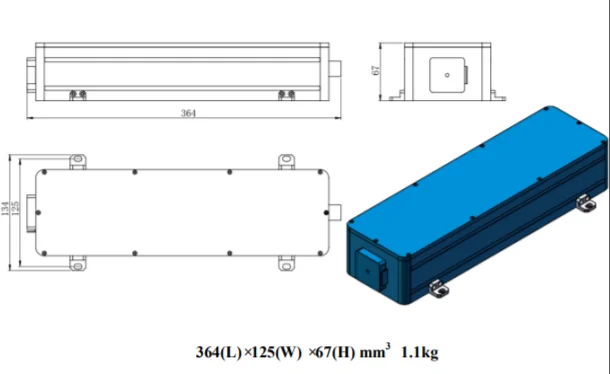

Demisions
Certifications
Company Information

    Changchun New Industries (CNI) founded in 1996, located in Changchun, CHINA, is a leading manufacturer of solid-state and diode laser systems. Our products include green laser, blue laser, yellow laser, red laser, RGB laser, infrared laser, UV laser, single longitudinal mode laser and Q-switched laser systems. CNI lasers are featured with high performance, low cost and excellent laser beam quality, which are specifically designed for OEM, scientific, industrial and instrumentation use. In addition, CNI lasers are ISO-9001, FDA, CE and JQA certified.

    CNI also provides laser components and accessories, we aim to offer customers complete laser solutions for all solid state lasers, diode lasers, laser marking system with our most convenient and rapid service.
