48v Brushless dc Motor 400w 500w 600w

48v Brushless dc Motor 400w 500w 600w thumbnail-1
48v Brushless dc Motor 400w 500w 600w thumbnail-2
48v Brushless dc Motor 400w 500w 600w thumbnail-3
48v Brushless dc Motor 400w 500w 600w thumbnail-4
48v Brushless dc Motor 400w 500w 600w thumbnail-5
48v Brushless dc Motor 400w 500w 600w thumbnail-6
48v Brushless dc Motor 400w 500w 600w photo-1
48v Brushless dc Motor 400w 500w 600w photo-2
48v Brushless dc Motor 400w 500w 600w photo-3
48v Brushless dc Motor 400w 500w 600w photo-4
48v Brushless dc Motor 400w 500w 600w photo-5
48v Brushless dc Motor 400w 500w 600w photo-6
US$ 30 - 100 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
Smart Automation
Place of Origin:
Jiangsu, China
Model Number:
86BL SERIES
Contact Supplier Request Quote Chat Now
Changzhou Smart Automation Motor Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Smart Automation
Place of Origin Jiangsu, China
Model Number 86BL SERIES
Type Servo Motor
Certification CE, ROHS
Torque customed
Usage Car, Electric Bicycle, Fan, Home Appliance
Construction Series Wound
Efficiency IE 1
Protect Feature Drip-proof
Voltage(V) 48v
Output Power upto 800w
Continuous Current(A) customed
Speed(RPM) customed
Commutation Brushless

size 86mm high torque high power electric bldc motor

12v, 24v, 36v, 48v, power 300w upto 800w, option for gearbox, brake, encoder









General specification:

Item

Specification

Winding type

Delta

Hall effect angle

120 degree electrical angle

Shaft run out

0.05mm

Radial play

0.06mm@450g

End play

0.08mm@450g

Max.radial force

220N@20mm from the flange

Max.axial force

80N

Insulation class

Class B

Dielectric Strength

500VDC for one minute

Insulation resistance

100MΩMin.500VDC

 Electric connection:

Lead NO.

Lead Color

Lead Gauge

Function

DESCRIPTION

1

Red

UL1007/26AWG

VCC

SUPPLY VOLTAGE FOR HALL SENSORS

2

Black

GND

GROUND FOR HALL SENSORS

3

Yellow

HALL A



4

Green

HALL B



5

Blue

HALL C



6

Yellow

UL1007/14AWG

PHASE U



7

Green

PHASE V



8

Blue

PHASE W

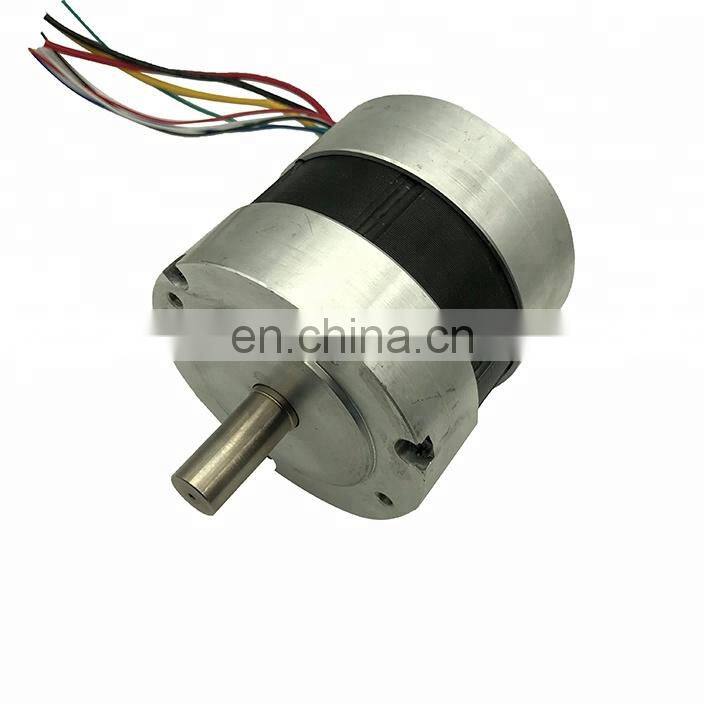

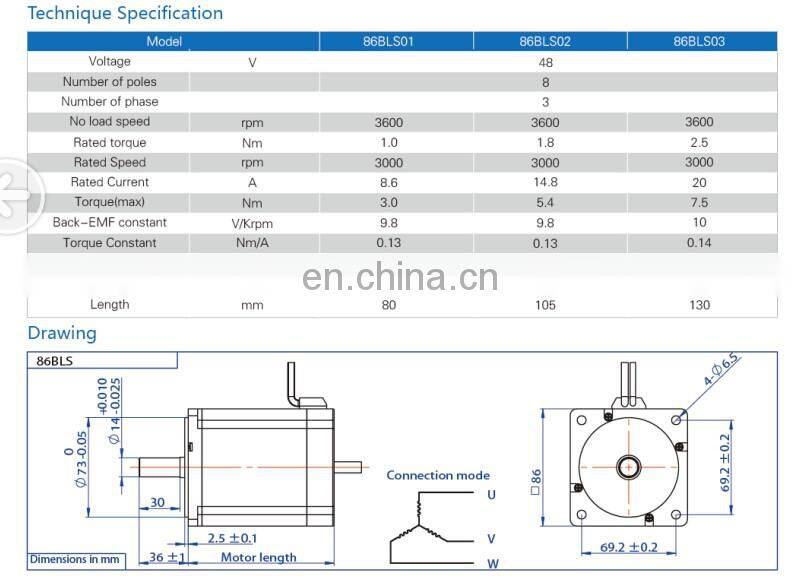

86BLS Series



48v brushless dc motor 400w 500w 600w









48v brushless dc motor 400w 500w 600w

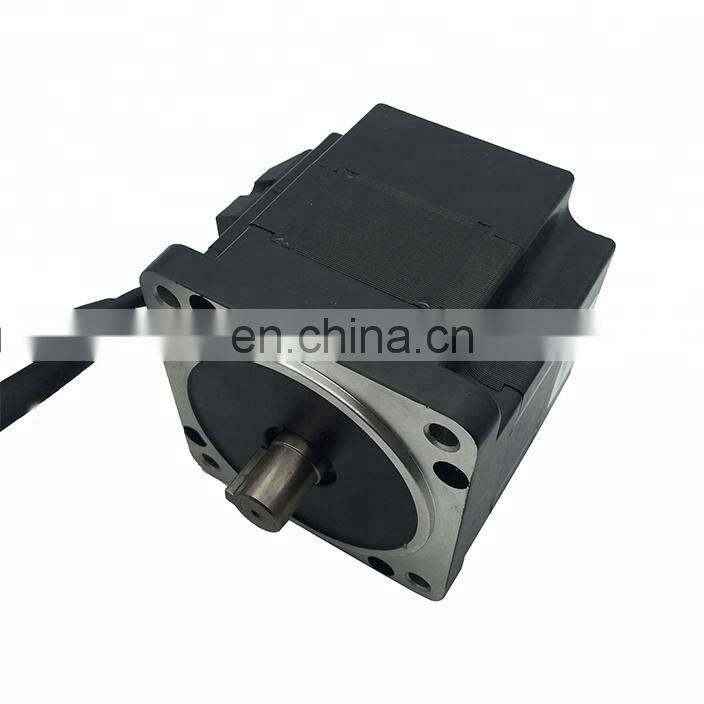

86RBLS Series





48v brushless dc motor 400w 500w 600w



48v brushless dc motor 400w 500w 600w

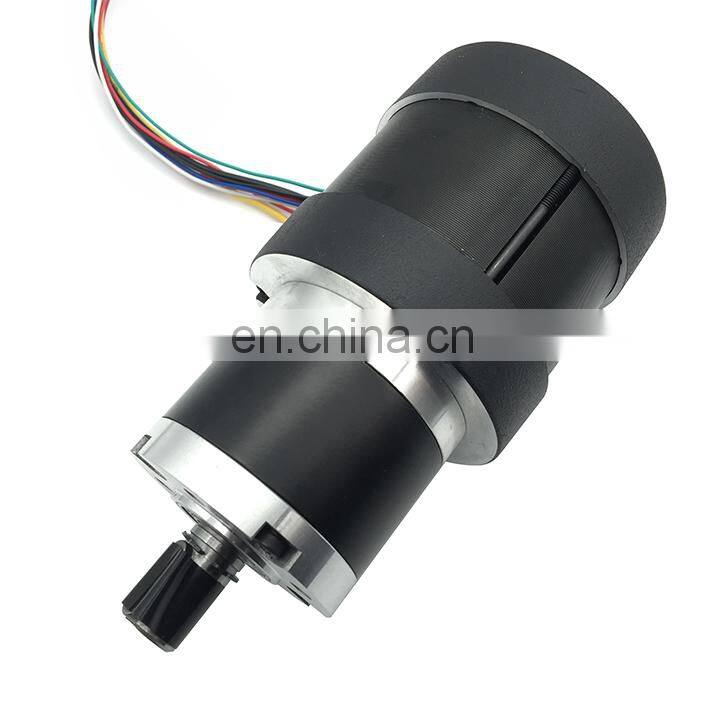

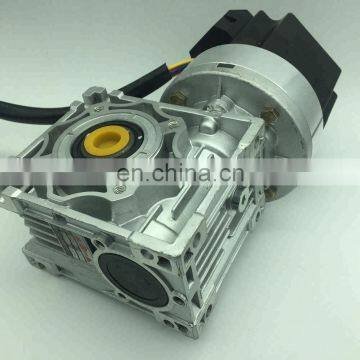

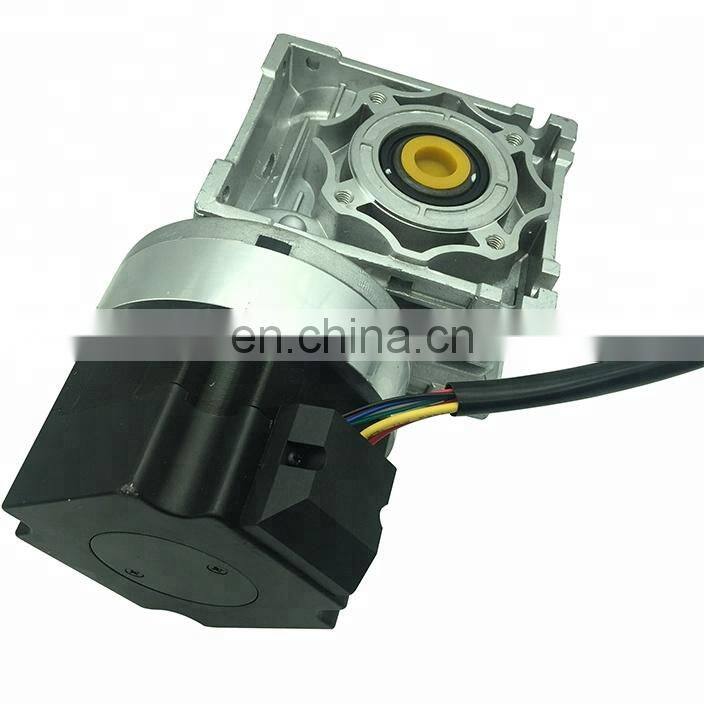

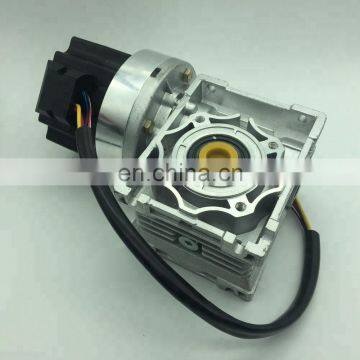

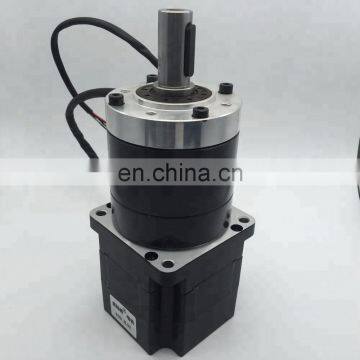

 Geared version

48v brushless dc motor 400w 500w 600w48v brushless dc motor 400w 500w 600w
