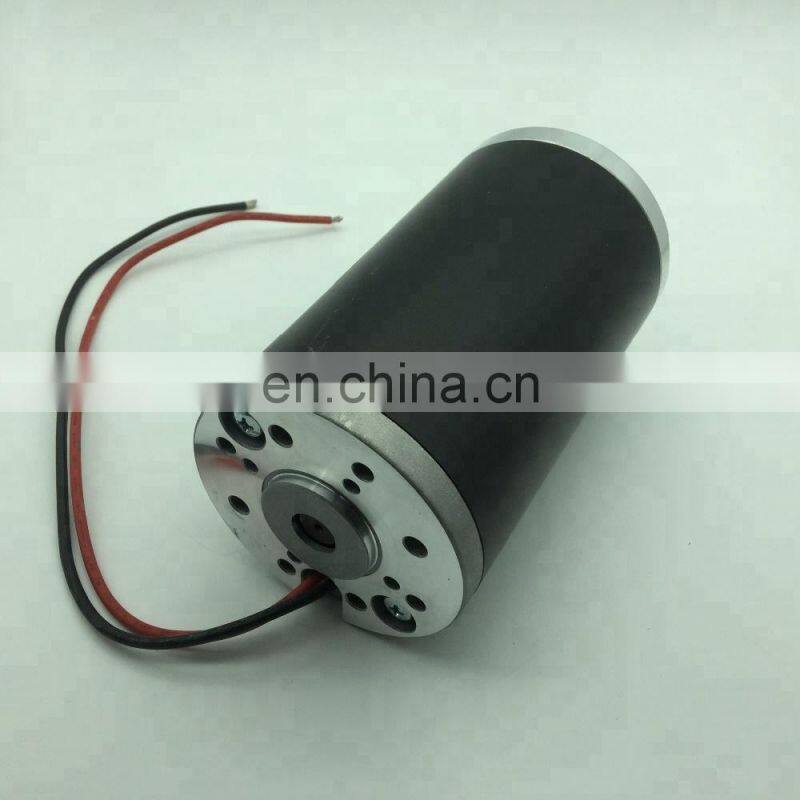

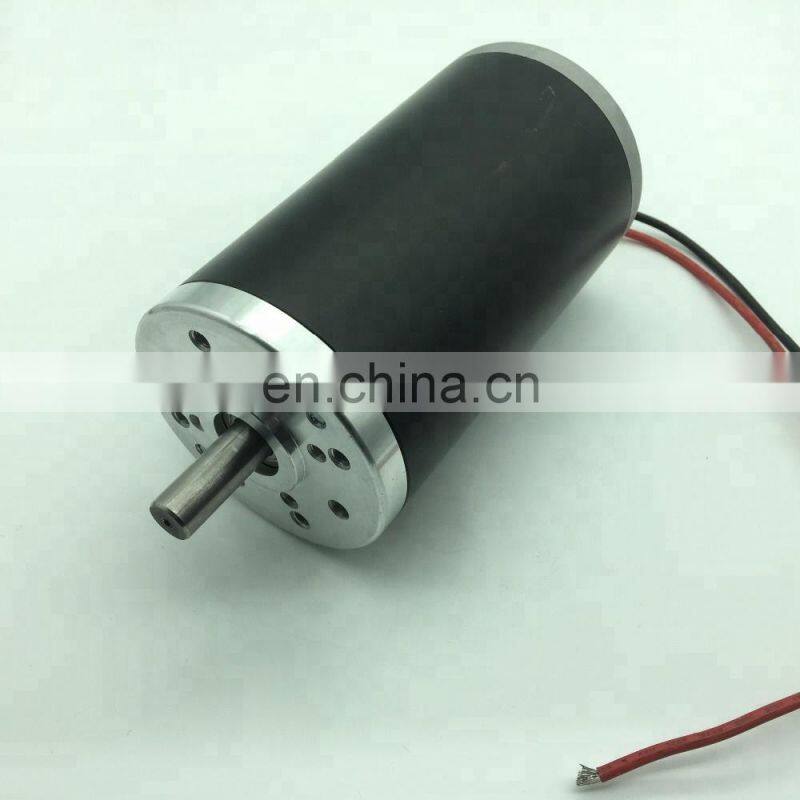

80ZYT01C 12v 24v High Speed Football dc Motors Used for Foot Balls Launch Machine
US$ 15 - 30
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
SmartAutomation
Place of Origin:
Jiangsu, China
Model Number:
80ZYT01C
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Dc Motor 12v for Tennis Ball Launch Machines No Load 5500rpm Option for Volley Ball / Football Pitching MachineUS$ 10 - 30MOQ: 5 Pieces -
NMRV040.80BL Brushless DC Gear Motors for Industrial Conveyor SystemUS$ 45 - 100MOQ: 5 Pieces
-
100w 200w 300w Brushed DC Gear Motors for Industrial Conveyor SystemUS$ 30 - 60MOQ: 3 Pieces
-
High Torque Geared Brush dc Motor Used for Lifting MachineUS$ 30 - 60MOQ: 3 Pieces
-
Used for Vehicle Wheel Steering Brushless Dc Motors, High Torque and Low CoggingUS$ 15 - 60MOQ: 5 Pieces
Brand Name
SmartAutomation
Place of Origin
Jiangsu, China
Model Number
80ZYT01C
Certification
CE, ROHS
Torque
0.6N.m
Usage
Car, Electric Bicycle, Fan, Home Appliance
Construction
Permanent Magnet
Efficiency
IE 1
Protect Feature
Drip-proof
Voltage(V)
12v, 24v~48V
Output Power
375w
Continuous Current(A)
customed
Speed(RPM)
6000rpm
Commutation
Brush
Motor technical parameter:
Shaft HRC 36~40 ; NMB ball bearing
Hard ferrit magnet, 2- poles
Protection class IP 50
Insulation class: F, operating temperature range:-40°C~+140°C
CE and ROHS certified
Options:
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection
High temperature Class H insulation
Model |
80ZYT01C |
|||
Rated voltage |
V dc |
12 |
24 |
40 |
Continuous rated speed |
rpm |
6000 |
6000 |
6000 |
Continuous rated torque |
N.m |
0.6 |
0.6 |
0.6 |
Continuous current |
A |
44 |
22 |
13.5 |
Stall torque |
N.m |
7.9 |
7.9 |
7.9 |
Starting current |
A |
530 |
265 |
150 |
No load speed |
rpm |
6500 |
6500 |
6500 |
No load current |
A |
4.0 |
3.0 |
2.0 |
Demagnetization current |
A |
1000 |
500 |
300 |
Rotor inertia |
Gcm2 |
1800 |
1800 |
1800 |
Weight of motor |
kg |
1.85 |
1.85 |
1.85 |
