Home > Products > Typical Applications > NMRV040.80BL Brushless DC gear motors for industrial conveyor system
NMRV040.80BL Brushless DC gear motors for industrial conveyor system
US$ 45 - 100
/ Piece
5 Pieces(Min. Order)
- SHANGHAI
- T/T Credit Card
You May Like
-
100w 200w 300w Brushed DC gear motors for industrial conveyor system
-
high torque geared brush dc motor used for lifting machine
-
Used for Vehicle Wheel Steering Brushless Dc Motors, high torque and low cogging
-
12v 24v 48v heavy duty worm gear dc motors for wheel steering
-
AGV steering system use brushed dc gear motor 30Nm 250w output, for Auto Guided Industrial Vehicles
-
63mm 12 volt 24 volt dc motors used for small hydraulic pumps 12v 24v
Product Details
| Brand Name | Smart Automation | Place of Origin | Jiangsu, China | |
| Model Number | NMRV040.80BL | Type | Servo Motor | |
| Certification | CE, ROHS | Torque | customed | |
| Usage | Car, Electric Bicycle, Fan, Home Appliance | Construction | Series Wound | |
| Efficiency | IE 1 | Protect Feature | Drip-proof | |
| Voltage(V) | 12v 24v 36v 48v | Output Power | UPTO 150W | |
| Continuous Current(A) | customed | Speed(RPM) | customed | |
| Commutation | Brushless |
Product Description

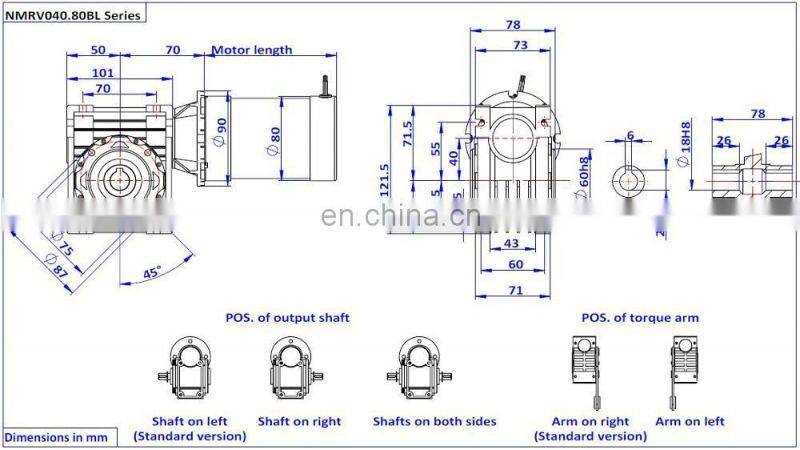

NMRV040.80BL Brushless Dc Worm Gear Motor
80BL Technique Specification
Model | 80RBL01M | 80RBL02M | 80RBL03M | 80RBL04M | 80RBL05M | |
Number of phase | 3 | |||||
Number of pole | 8 | |||||
Voltage | V | 24v (Option for 12v 36v 48v) | ||||
No load speed | rpm | 3100 | 3100 | 3100 | 3100 | 3100 |
Rated torque | Nm | 0.4 | 0.8 | 1.2 | 1.4 | 1.8 |
Rated Speed | rpm | 2200 | 2200 | 2200 | 2200 | 2200 |
Rated Power | W | 92 | 185 | 277 | 324 | 416 |
Length | mm | 60 | 80 | 100 | 115 | 135 |
