76mm 2'' 12v RV Dc Motors used for recreational vehicle
US$ 10 - 30
/ Piece
5 Pieces(Min. Order)
- T/T Credit Card
You May Like
-
80ZYT01C 12v 24v high speed football dc motors used for foot balls launch machine
-
Dc Motor 12v for Tennis Ball Launch Machines No Load 5500rpm Option for Volley Ball / Football Pitching Machine
-
NMRV040.80BL Brushless DC gear motors for industrial conveyor system
-
100w 200w 300w Brushed DC gear motors for industrial conveyor system
-
high torque geared brush dc motor used for lifting machine
-
Used for Vehicle Wheel Steering Brushless Dc Motors, high torque and low cogging
Product Details
| Brand Name | Smart Automation | Place of Origin | Jiangsu, China | |
| Model Number | 76ZYT | |||
| Certification | CE, ROHS | Torque | 0.2Nm | |
| Usage | Car, Electric Bicycle, Fan, Home Appliance, Other | Construction | Permanent Magnet | |
| Efficiency | IE 1 | Protect Feature | Drip-proof | |
| Voltage(V) | 12v | Continuous Current(A) | customed | |
| Speed(RPM) | 2250 | Commutation | Brush |
Product Description
Permanent Magnet Brush DC Motor 76ZYT02A

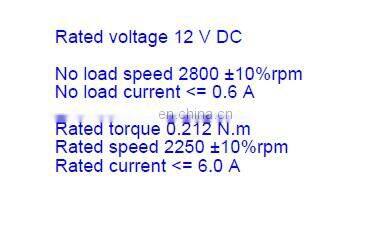

Motor Specifications
Shaft materials 3Cr13, HRC 36~40
High quality ball bearing
Hard ferrite magnet, 2- poles
Protection class IP 50
Insulation class: F, operating temperature range:-40℃~+140℃
CE and ROHS certified
Options
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation
