Home > Electrical & Electronics > Electric Motor > DC Motor > Higher Torque 24v Geared Brushless DC Electric Motor for Bus Doors Open
Higher Torque 24v Geared Brushless DC Electric Motor for Bus Doors Open
US$ 50 - 80
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
Smart Automation
Place of Origin:
Jiangsu, China
Model Number:
60JXE450K13.80RBL- 80
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
76mm 2'' 12v RV Dc Motors Used for Recreational VehicleUS$ 10 - 30MOQ: 5 Pieces -
80ZYT01C 12v 24v High Speed Football dc Motors Used for Foot Balls Launch MachineUS$ 15 - 30MOQ: 5 Pieces
-
Dc Motor 12v for Tennis Ball Launch Machines No Load 5500rpm Option for Volley Ball / Football Pitching MachineUS$ 10 - 30MOQ: 5 Pieces
-
NMRV040.80BL Brushless DC Gear Motors for Industrial Conveyor SystemUS$ 45 - 100MOQ: 5 Pieces
-
100w 200w 300w Brushed DC Gear Motors for Industrial Conveyor SystemUS$ 30 - 60MOQ: 3 Pieces
Brand Name
Smart Automation
Place of Origin
Jiangsu, China
Model Number
60JXE450K13.80RBL- 80
Type
Servo Motor
Certification
CE, ROHS
Torque
8 Nm
Usage
Car, Electric Bicycle, Fan
Construction
Series Wound
Efficiency
IE 1
Protect Feature
Drip-proof
Voltage(V)
12V, 24V, 36v 48v
Output Power
200W
Continuous Current(A)
customed
Speed(RPM)
250rpm
Commutation
Brushless
80RBL Series DC Motor Electric Connection:
60JXE450K Gearbox General Specification:
*Higher Rated Torque Version Gearbox
Ring Materials | Metal |
Bearings | Ball Bearings |
Max. Radial Load (12mm from flange) | 400N |
Max. shaft Axial Load | 120N |
Radial Play of Shaft | 0.08mm max. |
Axial Play of Shaft | 0.4mm max. |
Backlash at No load | 1.5 degree max. |
Shaft Press Fit Force | 300N max. |

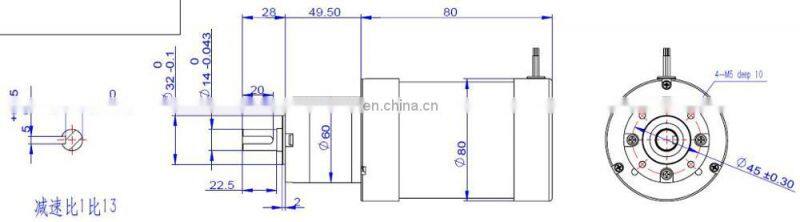

Planetary Gear Motor Drawing:
GER MOTOR PERFORMANCE
Rated voltage: 24v
Rated torque 8Nm
Rated speed 250rpm
No load 300rpm

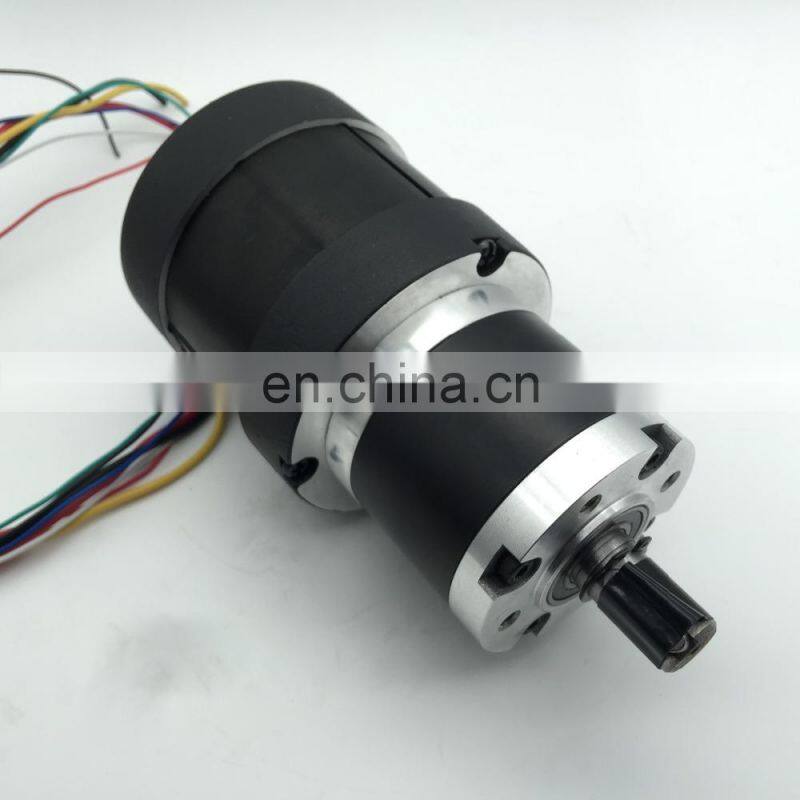

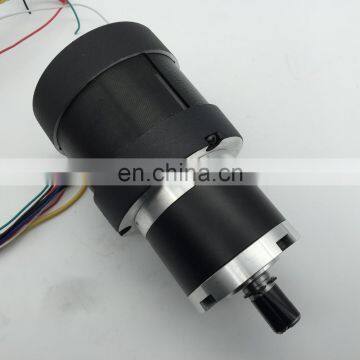

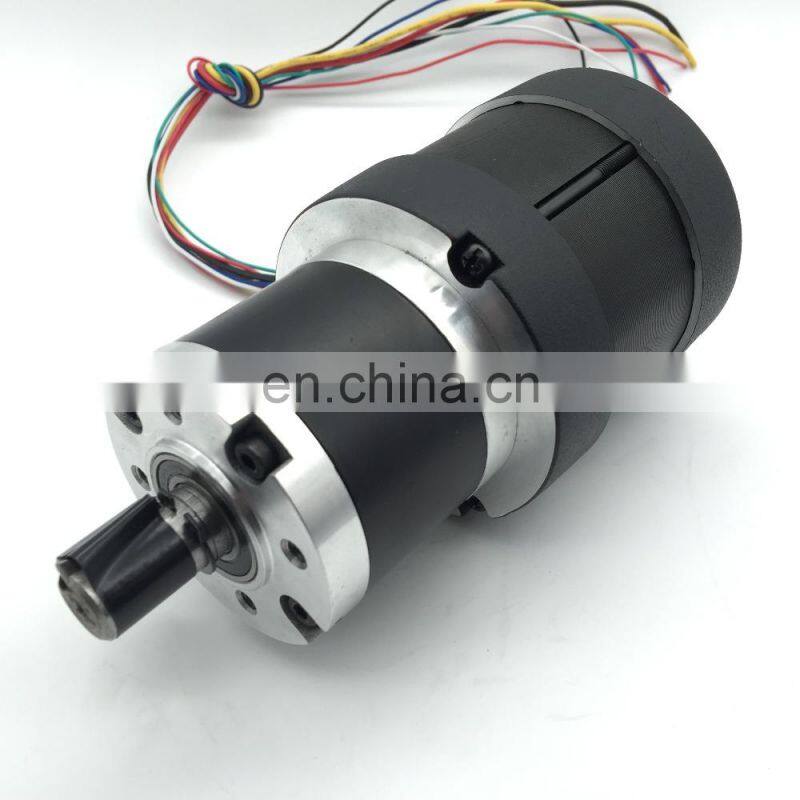

MOTOR PICTURES
MORE OPTIONS:

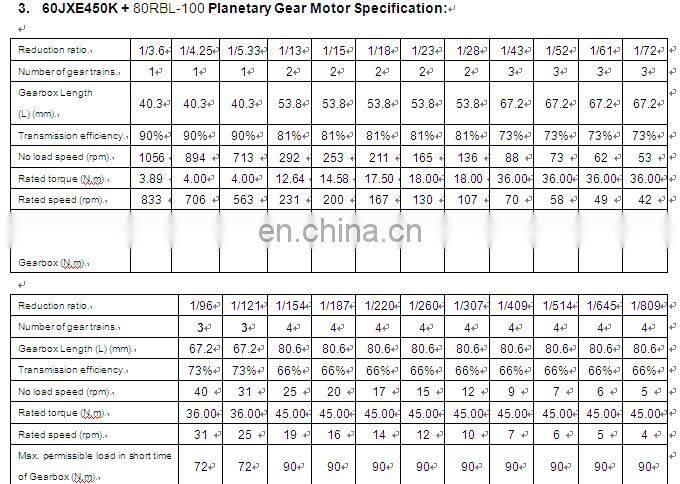

60JXE450K.80RBL Series Planetary Gear Motor Specification:

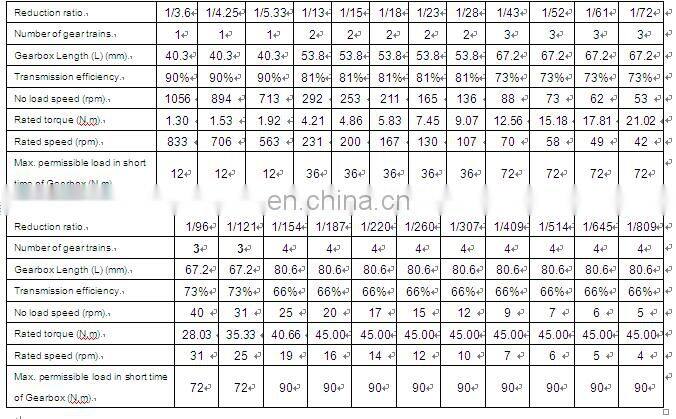

1.60JXE450K + 80RBL-60 Planetary Gear Motor Specification

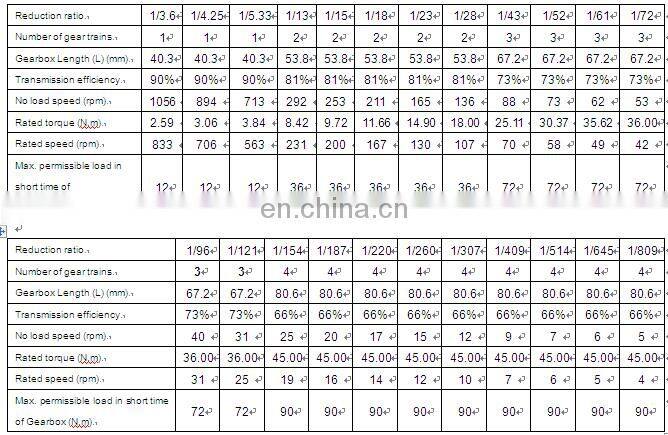

2.60JXE450K + 80RBL-80 Planetary Gear Motor Specification:
