Home > Electrical & Electronics > Electric Motor > DC Motor > 42ZYT01A 12v 24v Dc Diaphragm Vacuum Liquid Pump Motor

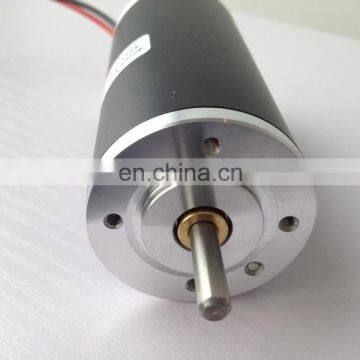

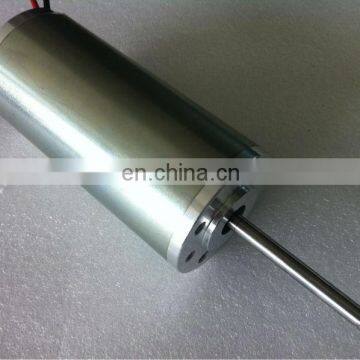

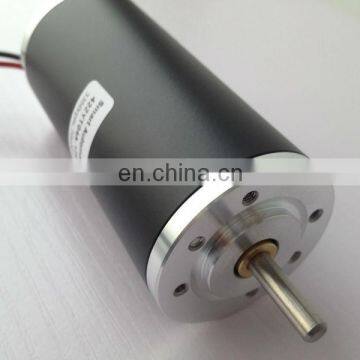

42ZYT01A 12v 24v Dc Diaphragm Vacuum Liquid Pump Motor
US$ 8 - 15
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
Smart Automation
Place of Origin:
Jiangsu, China
Model Number:
42ZYT01A
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
48v Brushless dc Motor 400w 500w 600wUS$ 30 - 100MOQ: 5 Pieces -
Higher Torque 24v Geared Brushless DC Electric Motor for Bus Doors OpenUS$ 50 - 80MOQ: 5 Pieces
-
76mm 2'' 12v RV Dc Motors Used for Recreational VehicleUS$ 10 - 30MOQ: 5 Pieces
-
80ZYT01C 12v 24v High Speed Football dc Motors Used for Foot Balls Launch MachineUS$ 15 - 30MOQ: 5 Pieces
-
Dc Motor 12v for Tennis Ball Launch Machines No Load 5500rpm Option for Volley Ball / Football Pitching MachineUS$ 10 - 30MOQ: 5 Pieces
Brand Name
Smart Automation
Place of Origin
Jiangsu, China
Model Number
42ZYT01A
Type
Micro Motor
Certification
CE, ROHS
Torque
39mNm ~ 100mNm
Usage
Car, Electric Bicycle, Fan, Home Appliance
Construction
Permanent Magnet
Efficiency
IE 1
Protect Feature
Drip-proof
Continuous Current(A)
customed
Speed(RPM)
3600RPM
Commutation
Brush
Motor technical parameter:
Shaft HRC 36~40 ; NMB ball bearing
Hard ferrit magnet, 2- poles
Protection class IP 50
Insulation class: F, operating temperature range:-40°C~+140°C
CE and ROHS certified
Options:
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection
High temperature Class H insulation
|
Model |
42ZYT01A |
|||
|
Rated voltage |
V dc |
12 |
24 |
40 |
|
Continuous rated speed |
rpm |
3450 |
3600 |
3700 |
|
Continuous rated torque |
mN.m |
39 |
38 |
39 |
|
Continuous current |
A |
1.9 |
0.9 |
0.6 |
|
Starting torque |
mN.m |
190 |
200 |
220 |
|
Starting current |
A |
7.8 |
4 |
2.76 |
|
No load speed |
rpm |
4350 |
4200 |
4400 |
|
No load current |
A |
0.34 |
0.17 |
0.11 |
|
Demagnetization current |
A |
14 |
6.5 |
4.1 |
|
Rotor inertia |
Gcm2 |
71 |
71 |
71 |
|
Weight of motor |
g |
390 |
390 |
390 |
