Home > Electrical & Electronics > Electric Motor > DC Motor > 63mm Planetary Gearbox Golf Cart DC Motor, 12V 8N.m, Option for Electric Brake
63mm Planetary Gearbox Golf Cart DC Motor, 12V 8N.m, Option for Electric Brake
US$ 25 - 60
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
Smart Automation
Place of Origin:
Jiangsu, China
Model Number:
56jx300k.63ZYT03
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Micro Vibrator Motor dc 12 Volt or 24 VoltUS$ 6 - 20MOQ: 5 Pieces -
42ZYT01A 12v 24v Dc Diaphragm Vacuum Liquid Pump MotorUS$ 8 - 15MOQ: 5 Pieces
-
48v Brushless dc Motor 400w 500w 600wUS$ 30 - 100MOQ: 5 Pieces
-
Higher Torque 24v Geared Brushless DC Electric Motor for Bus Doors OpenUS$ 50 - 80MOQ: 5 Pieces
-
76mm 2'' 12v RV Dc Motors Used for Recreational VehicleUS$ 10 - 30MOQ: 5 Pieces
Brand Name
Smart Automation
Place of Origin
Jiangsu, China
Model Number
56jx300k.63ZYT03
Type
Gear Motor
Certification
CE, ROHS
Torque
8N.m
Usage
Boat, Car, Fan, Home Appliance
Construction
Permanent Magnet
Efficiency
IE 1
Protect Feature
Drip-proof
Continuous Current(A)
customed
Speed(RPM)
150rpm
Commutation
Brush
Below are only some typical models.
For more information or a customed motor, Pls contact us.
Option for Electric Brake, Planetary Gearbox, Worm Gearbox, Optical Encoder Integrated
| Bearing | High quality ball bearing |
| Poles | 2- poles |
| Protection class | IP40 IP54 IP66 option |
| Insulation class | class: F |
CE and ROHS certified
Options
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation

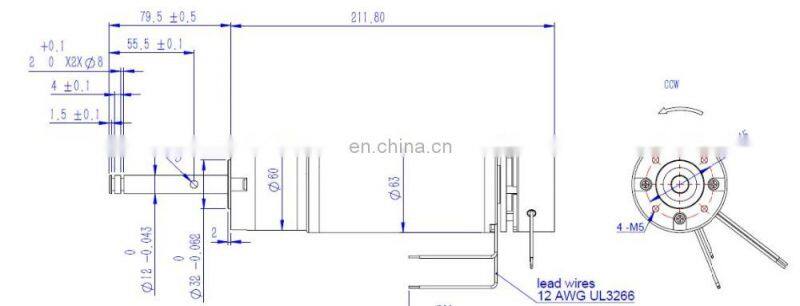

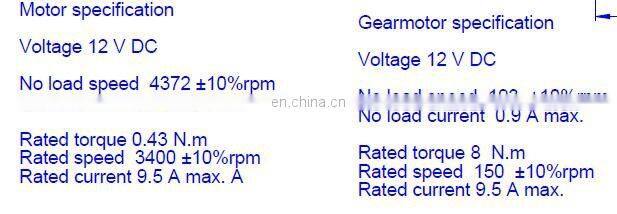

56JX300K.63ZYT SERIES PM DC PLANETARY GEAR MOTOR (with max. rated torque 30N.m)

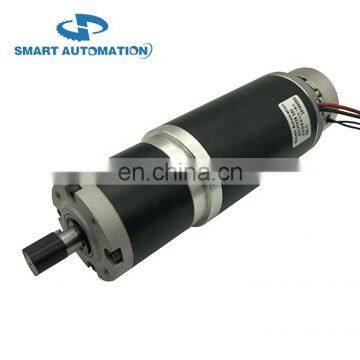

Motor picture:
