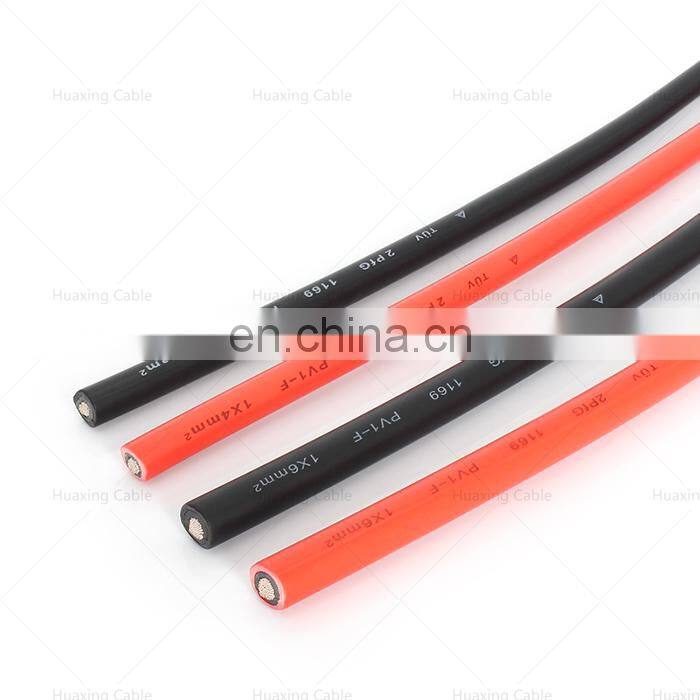

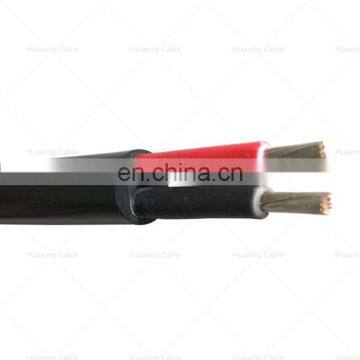

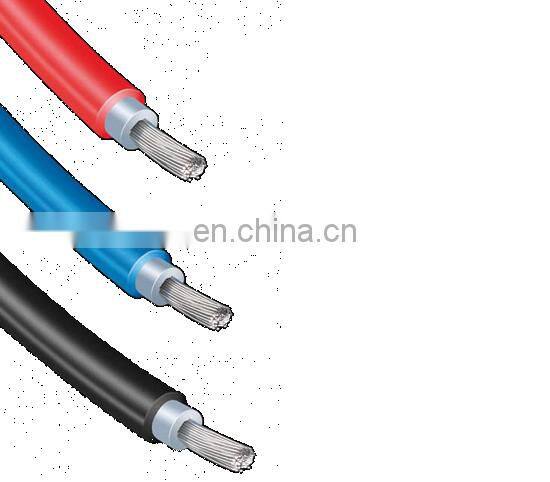

Solar PV Wire (Photovoltaic Wire/ UL 4703)
Such cables is mainly used for solar photovoytaic module, connectors etc which is characteristic of excellent UV resistance , Ozone resistance, damp heat resistance and chemical erosion resistance .
Solar cable Description
| 1.Rating:Voltage: 600/1000V Temperature:-40°C-- 90°C |
|
2.Description:
(1)Conductor:Tinned annealed copper
(2)Insulation:120°C XLPE , black
(3)Jacket:120°C XLPE , black or red
|
| 3.Marking: TÜV 2 PfG 1169 PV1-F 1×**mm2 |
4.Application: Specifically designed for connecting photovoltaic system components inside and outside of building and equipment with high mechanical requirements and extreme weather conditions For permanent installations. |
5.General characteristics: Cable made of electron-beam cross-linked insulation and coating; high resistance against heat,cold,oil,abrasion,ozone,UV and weather; with improved reaction in case of fire . |
We would like to introduce ourselves as an ISO9001/14001/18001 ,CCC ,UL certificated Manufacturer of different kinds of Cables ,our products have exported to more than 50 countries .
Henan Huaxing Cables and Wires Company .Ltd ,was found in 1984 and expanded in 2005, the workshop covers an area of 67,000m2, building area is about 28,000m2,,more than 260 employees , We serve under the skillful & experienced management which provide effective & efficient service to you.
We are also the Long term supplier of Ministry of Electric power of Yemen ,National Electric Energy Agency of Italy ,Electric power company of France, numbers of listed companies already established long business relationship with us .
Our hot products including Aluminum Rod ,All Aluminum Conductor( AAC),All Aluminum Alloy Conductor (AAAC),Aluminum Conductor Steel Reinforced(ASCR), Aerial Cable, Concentric Cable ,Power Cable ,PV Cable ,Electric Wire and so on;
1) Wrapped in rolls/coils/rings with Plastic film for small diameter cables like building wires.
2) Cables are normally supplied in lengths of 100 meters,500 meters and 1000 meters according to cable size.Other length could be supplied if required.
3) Treated wooden/steel-wooden drums for big diameter cables.
