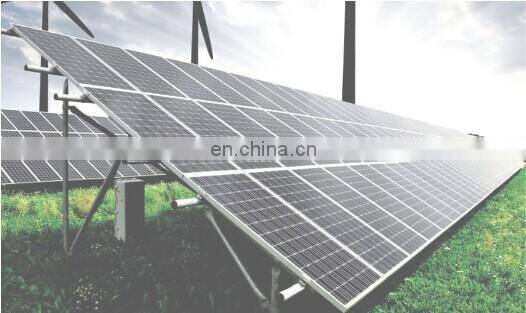

PV Cable (Solar cable): is the interconnection cable used in photovoltaic power generation. A solar cable interconnects solar panels and other electrical components of a photovoltaic system.
PV wire (Solar cables) are designed to be UV resistant and weather resistant. It can be used within a large temperature range and are generally laid outside
Applications:
Interconnection wiring of grounded and ungrounded photovoltaic power systems as described in section 690.31(A) and other applicable parts of the National Electrical Code (NEC), NFPA70.
Constructions:

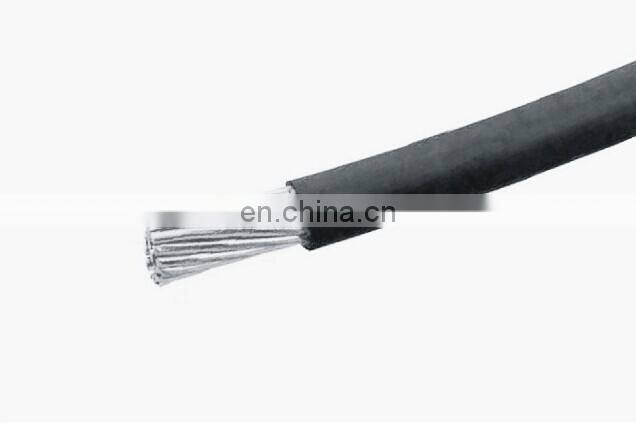

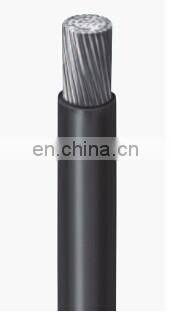

Conductor: Single copper conductor, stranded.
Insulation: XLP thermosetting chemically cross-linked Polyethylene, surface printed
Size: 8awg--1000mcm
Packing: cut to length and shipped on non-returnable reels.
Features:
1. Temperature rated 90Deg C wet and dry
2. Deformation-rersistant at high temperatures
3. Excellent moisture resistance, exceeds UL44
4. Stable electrical properties over a broad temperature range
5. Excellect resistance to crush and compression cuts
6. Resistance to most oild and chemicals
7. UV (Sunlight-resistance)
8. Meets cold bend test at -40Deg C
Compliances:
1.UL listed Type USE-2 1KV; Type PV 1KV; c(UL) listed RW90 1KV.
2. UL Standard 854: Standard for Safety for Service Entrance Cables.
3. UL Standard 4703: Outline of Investigation for Photovoltaic Wire, PV Wire.
4.UL Standard 44; sunlight resistant; VW-1 rated per UL 1685.
5.ICEA S-95-658/NEMA WC-70.
6.C(UL) RWU90 1kV
7.Ul 1581 VW-1 for sizes 1/0 and larger: IEEE 383, IEEE 1202/CSA Ft4
8.Suitable for use in 105°C dry system.
9.RoHS compliant.
