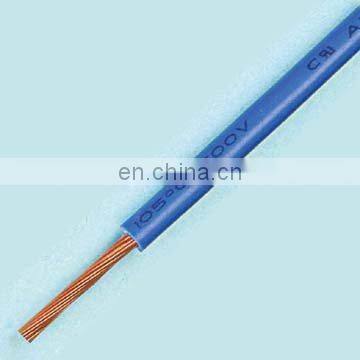

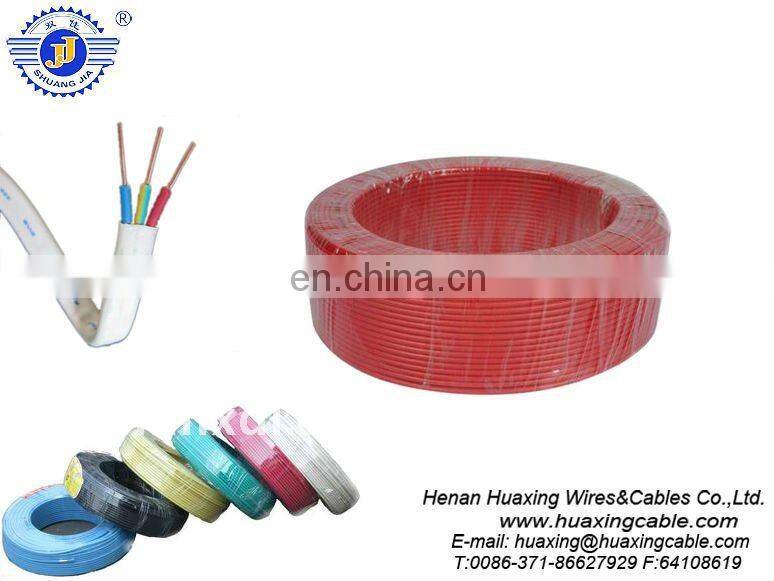

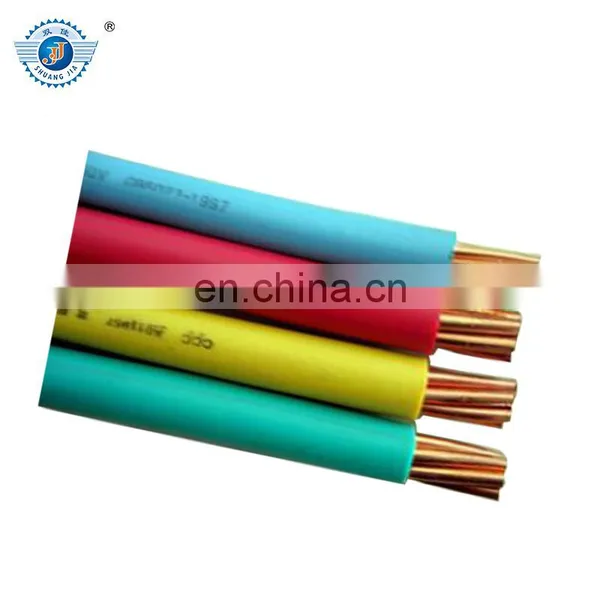

450/750v copper building wire Include:
1) Copper (aluminium) conductor PVC insulated wires (BV)
2) Copper conductor PVC insulated flexible wires (BVR)
3) Copper (aluminium) conductor PVC insulated PVC sheathed round wires
4) Copper (aluminium) conductor PVC insulated PVC sheathed flat wires
5) Copper conductor PVC insulated flat and flexible connectors
6) Copper conductor PVC insulated PVC sheathed round and flexible connectors
Size: 0.5-240 mm2
Usage:
This prodcut is widely used in the construction of buildings airports, power transportation, urban and rural power network reformation and other main projects.
450/750v Copper building wire with below technical data
Nominal |
Conductor |
Nominal Insulated thick |
Max overall |
Condcutor |
Min insulated |
Weight |
2.5 |
9/0.41 |
0.8 |
4.2 |
7.41 |
0.011 |
33.0 |
4 |
19/0.52 |
0.8 |
4.8 |
4.61 |
0.009 |
48.0 |
6 |
19/0.64 |
0.8 |
5.6 |
3.08 |
0.0084 |
68.0 |
10 |
49/0.52 |
1.0 |
7.6 |
1.83 |
0.0072 |
115.0 |
16 |
49/0.64 |
1.0 |
8.8 |
1.15 |
0.0062 |
176.0 |
25 |
98/0.58 |
1.2 |
11.0 |
0.727 |
0.0058 |
272.0 |
MOQ, Capacity& Payment method
For electric wire, aerial cable and power cable, the Minimum Order Quantity is 1000 meters each type. The capacity is 20 kilometers per day.
For electric conductor(AAC,ACSR,AAAC,AASC) for transmission line, the Minimum Order Quantity is 1 ton each type. The capacity is 50 tons per day.
Our payment term is 30% deposit in advance, 70% rest against copy of B/L; or 100% irrevocable L/C at sight
Packing Pictures:
if you are interested in our products, pls supply more specification, such as, how many cores, nominal section area, conductor material(aluminum or copper) and usuage
