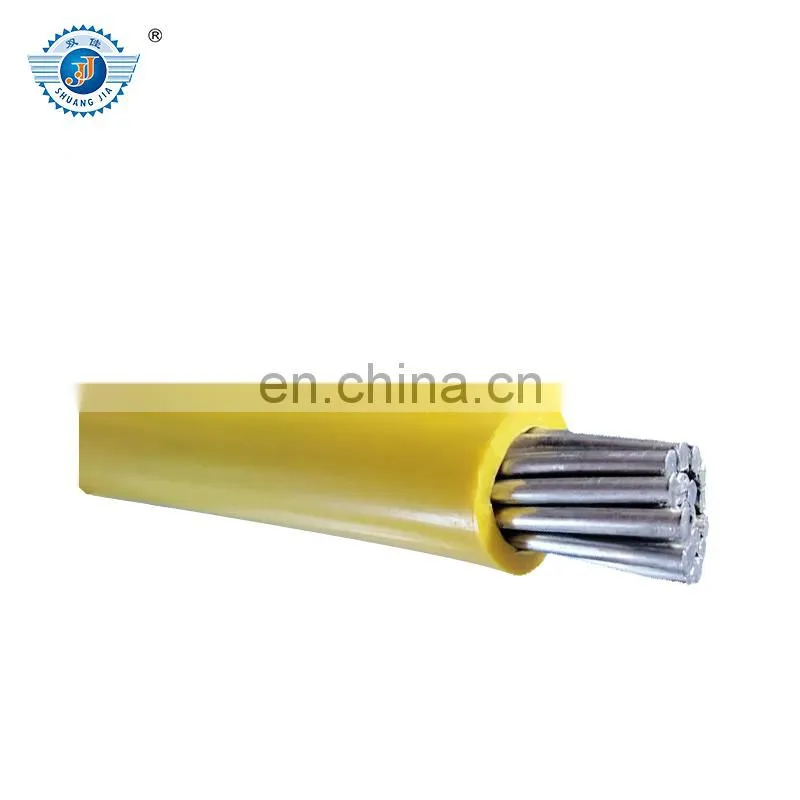

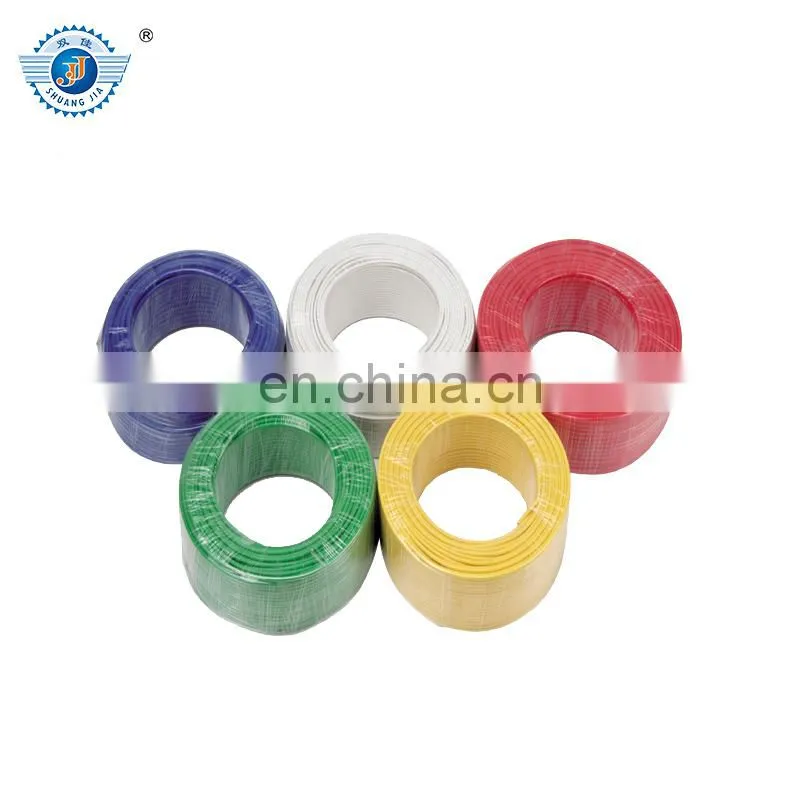

Help CenterBV Electric Wire 450/750
Related Products
-
Electrical Building Wire THW THHN Flat TPSUS$ 0.2 - 2.5MOQ: 5000 Meters -
Factory Supply Good Quality PVC Insulated Electric Wire for ProjectUS$ 0.1 - 10MOQ: 5 Meters
-
Factory Supply House Wiring IEC 60227 2.5sqmm Electric WireUS$ 0.1 - 0.5MOQ: 500 Meters
-
Good Quality Manufacturer Supply Electric Pvc Wire 2.5mmUS$ 0.1 - 10MOQ: 1 Meter
-
Factory Supply Aluminium Rod for Cable ManufactureUS$ 2,000 - 2,500MOQ: 1000 Tons
1 Standard
GB 5023.11997 , JB 8734.15-1998, Q/ZEL 02-2002, GB 5023.17-1997, IEC227
2 Voltages U0/U:
450/750V300/500V300/300V.(600/1000V also available)
Max. permissible continuous operating temperature of the conductor: 70
The ambient temperature under installation should not below 0.
Impedance (ohms): 100±2ohm
3 Application
The products is suitable for use in power installations, fixed wiring or flexible
connections for electrical appliances like lighting, electronic equipment, instrument
and communication equipment with rated voltage 450/750V or less
4 Model and Name
Model |
Name |
BV |
Copper Core PVC Insulation Wire |
BLV |
Aluminum Core PVC Insulation Wire |
BVR |
Copper Core PVC Insulation Flexible Wire |
BVV |
Copper Core PVC Insulation PVC Sheath Round Wire |
BVVB |
Copper Core PVC Insulation PVC Sheath Flat Wire |
BLVVB |
Aluminum Core PVC Insulation PVC Sheath Flat Wire |
BV-90 |
Copper Core Heat-resistance 105oC PVC Insulation |
5 Specification Size and Technical Data
Commen wire
| Nominal sectional area mm2 |
Conductor No/Dia. mm |
Nominal Insulated thick mm |
Max overall Dia. mm |
Condcutor Resistance at 20 |
Min insulated resistance at 70MΩ/km |
Weight Kg/km |
||
| Cu | Al | Cu | Al | |||||
| 1.5 | 1/1.38 | 0.7 | 3.3 | 12.1 | - | 0.011 | 19.2 | - |
| 1.5 | 7/0.52 | 0.7 | 3.5 | 12.1 | - | 0.010 | 20.6 | - |
| 2.5 | 1/1.78 | 0.8 | 3.9 | 7.41 | 11.8 | 0.010 | 30.8 | 15.0 |
| 4 | 1/2.25 | 0.8 | 4.4 | 4.61 | 7.39 | 0.0085 | 45.5 | 21.0 |
| 6 | 1/2.76 | 0.8 | 4.9 | 3.08 | 4.91 | 0.0070 | 65.0 | 29.0 |
| 10 | 7/1.35 | 1.0 | 7.0 | 1.83 | 3.08 | 0.0065 | 110.0 | 52.0 |
| 16 | 7/1.70 | 1.0 | 8.0 | 1.15 | 1.91 | 0.0050 | 170.0 | 70.0 |
| 25 | 7/2.14 | 1.2 | 10.0 | 0.727 | 1.20 | 0.0050 | 270.0 | 110.0 |
| 35 | 7/2.52 | 1.2 | 11.5 | 0.524 | 0.868 | 0.0040 | 364.0 | 150.0 |
| 50 | 19/1.78 | 1.4 | 13.0 | 0.387 | 0.641 | 0.0045 | 500.0 | 200.0 |
| 70 | 19/2.14 | 1.4 | 15.0 | 0.268 | 0.443 | 0.0035 | 688.0 | 269.0 |
| 95 | 19/2.52 | 1.6 | 17.5 | 0.193 | 0.320 | 0.0035 | 953.0 | 360.0 |
| 120 | 37/2.03 | 1.6 | 19.0 | 0.153 | 0.253 | 0.0032 | 1168.0 | 449.0 |
| 150 | 37/2.25 | 1.8 | 21.0 | 0.124 | 0.206 | 0.0032 | 1466.0 | 551.0 |
| 185 | 37/2.52 | 2.0 | 32.5 | 0.099 | 0.164 | 0.0032 | 1808.0 | 668.0 |
