Electric cable 70mm2 fire electrc cable:
Usage:
This prodcut is widely used in the construction of buildings airports, power transportation, urban and rural power network reformation and other main projects.
copper electrical cable wire Include following code and specification
Nominal sectional area mm 2 |
Conductor No/Dia. mm |
Nominal Insulated thick mm |
Max overall Dia. mm |
Condcutor Resistance at 20 |
Min insulated resistance at 70MΩ/km |
Weight Kg/km |
||
Cu |
Al |
Cu |
Al |
|||||
1.5 |
1/1.38 |
0.7 |
3.3 |
12.1 |
- |
0.011 |
19.2 |
- |
1.5 |
7/0.52 |
0.7 |
3.5 |
12.1 |
- |
0.010 |
20.6 |
- |
2.5 |
1/1.78 |
0.8 |
3.9 |
7.41 |
11.8 |
0.010 |
30.8 |
15.0 |
4 |
1/2.25 |
0.8 |
4.4 |
4.61 |
7.39 |
0.0085 |
45.5 |
21.0 |
6 |
1/2.76 |
0.8 |
4.9 |
3.08 |
4.91 |
0.0070 |
65.0 |
29.0 |
10 |
7/1.35 |
1.0 |
7.0 |
1.83 |
3.08 |
0.0065 |
110.0 |
52.0 |
16 |
7/1.70 |
1.0 |
8.0 |
1.15 |
1.91 |
0.0050 |
170.0 |
70.0 |
MOQ, Capacity& Payment method
For electric wire, aerial cable and power cable, the Minimum Order Quantity is 1000 meters each type. The capacity is 20 kilometers per day.
For electric conductor(AAC,ACSR,AAAC,AASC) for transmission line, the Minimum Order Quantity is 1 ton each type. The capacity is 50 tons per day.
Our payment term is 30% deposit in advance, 70% rest against copy of B/L; or 100% irrevocable L/C at sight

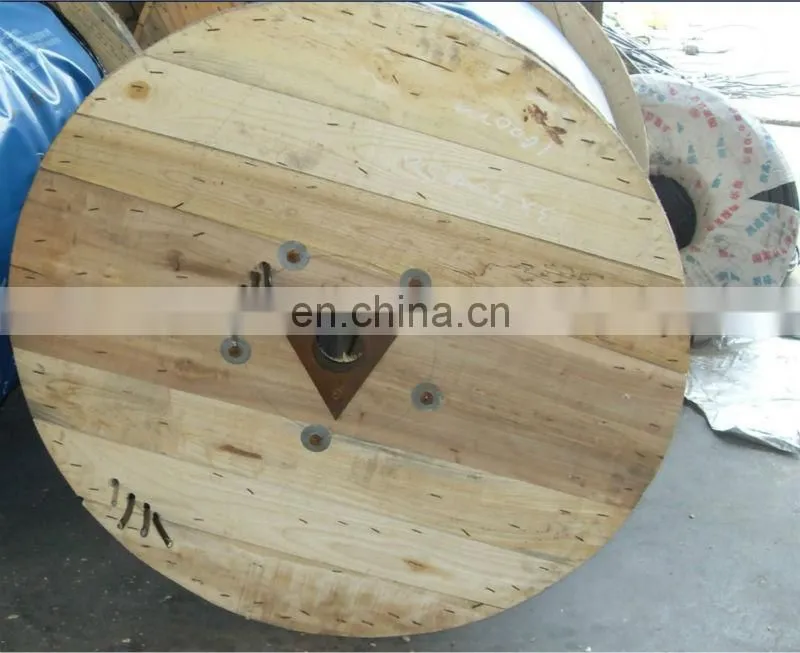

Packing Pictures:
