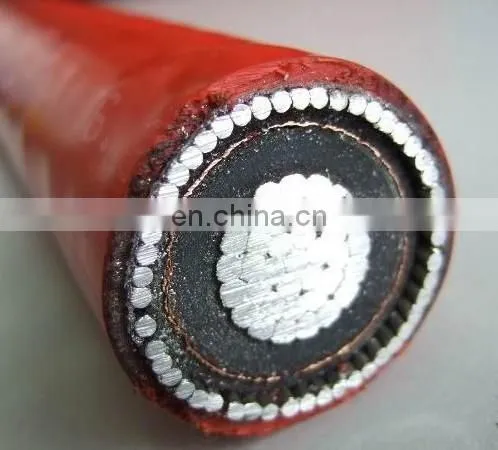

Aluminum Cable XLPE Insulated Aluminum Power Cable NA2XY
1.Rated Voltage from 1KV upto 35KV
2. Conductor: copper or aluminium
3. Section area: 1.5mm2---- 630mm2
4. Core No.: 1, 2, 3, 4, 5,3+1,4+1,3+2
5. Insulation: XLPE
6. Sheath: PVC
7. Armour: Stainless steel tape or not
8. Operation temperature: ≤90oC
9. Installation temperature: ≥0oC
10. Bending radius: A, Common bending radius:
a. ≥20D (1and 2cores)
b. ≥15D (3 cores)
c. ≥15D (2 cores with armour)
d. ≥12D (4,5,3+1,4+1,3+2 cores with armour)
D= outer diameter
B, Bending radius for the section which near the junction and connector:
a. ≥15D (1 and 2 cores)
b. ≥12D (3, 4,5,3+1,4+1,3+2 cores)
c. ≥12D (2 cores with armour)
d. ≥10D (3, 4, 5, 3+1,4+1,3+2 cores with armour)
10. For the armouring of single-core cables, non-magnetic materials shall be adopted.
11. They can be made into flame retardant and fireproof type.
12. They can be made according to customers' requirements.
standard electric cable
Application
1,The general type cable are suitable for rated AC voltage 0.6/1KV and below electric lines without flam-retardant or fire-resistance requirements.
2,The flame-retardant type cables are not easy to burn or their flame propagation is limited only in a certain length. . These cables are suitable for high installation density places like power station, subway, tunnel, high-building, large industrial enterprise, oil field and main etc.
3,The fire-resistant cables can not only operate in normal condition, but also can operate in fire during a certain time. These cable are suitable for power station, subway, high human density places where having fire-proof and fire-fight requirements.
Operating Features
1,Max .permissible operation temperature of conductor is 70°C.
2,Max. permissible temperature of conductor during short circuit(max. duration is not more than 5s) is not more than 165°C.
3,Ambient temperature of installation is not lower than 0°C
4,With good chemical stabilities, such as resistance to acid, alkali, salt, oil and organic solvent and flam-retardant..
5,With light weight, good character, easy to installation and maintenance.
type
Type |
Name |
Application |
|
YJV YJLV |
Copper (aluminum) conductor XLPE insulated PVC(PE)sheathed power cable |
For laying in doors, inductance, and kin tunnels, but unable to bear pulling force and pressure. |
|
YJV22 YJLV22 |
Copper(aluminum) conductor ,XLPE insulated steel-tape armored ,PVC(PE) sheathed power cable |
For laying in tunnels in doors and direct in ground, able to bear certain axis pulling force. |
|
YJV32 YJLV32 |
Copper(aluminum) conductor ,XLPE insulated fine steel-wire armored ,PVC(PE) sheathed power cable |
For laying down wells and under water ,able to bear certain axis pulling force. |
