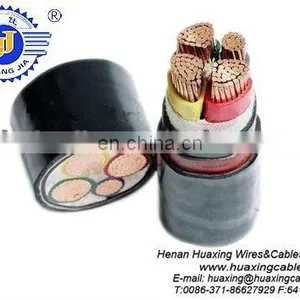

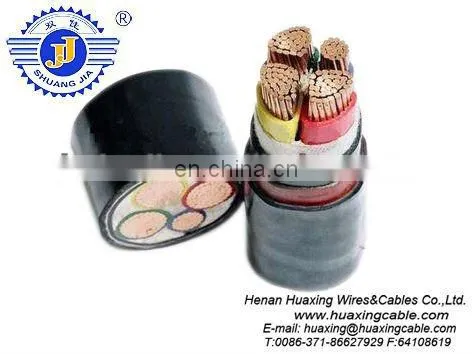

copper xlpe insualtion underground cable is with following Operating characteristic
1).The long-time working temperature of cable should not be higher than 70 degree.
2).When core is in short-circuit(max 5s)the temperature should not exceed 160 degree.
3).While installation the ambient temperature should not be lower than 0 degree, and the bending radius should not be less than 10 times of outer diameter of cable.
copper xlpe insualtion underground cable with following Model, name, main application
Nominal | Conductor | Nominal | Max overall | Condcutor | Min insulated | Weight |
2.5 | 9/0.41 | 0.8 | 4.2 | 7.41 | 0.011 | 33.0 |
4 | 19/0.52 | 0.8 | 4.8 | 4.61 | 0.009 | 48.0 |
6 | 19/0.64 | 0.8 | 5.6 | 3.08 | 0.0084 | 68.0 |
10 | 49/0.52 | 1.0 | 7.6 | 1.83 | 0.0072 | 115.0 |
16 | 49/0.64 | 1.0 | 8.8 | 1.15 | 0.0062 | 176.0 |
25 | 98/0.58 | 1.2 | 11.0 | 0.727 | 0.0058 | 272.0 |
35 | 133/0.58 | 1.2 | 12.5 | 0.524 | 0.0052 | 384.0 |
MOQ,Capacity&Payment method
For electric wire, aerial cable and power cable, the Minimum Order Quantity is 1000 meters each type. The capacity is 20 kilometers per day.
For electric conductor(AAC,ACSR,AAAC,AASC) for transmission line, the Minimum Order Quantity is 1 ton each type. The capacity is 50 tons per day.
Our payment term is 30% deposit in advance, 70% rest against copy of B/L; or 100% irrevocable L/C at sight
IF you are intested in our pruduct please contract me .I will send our details as soon as possible.

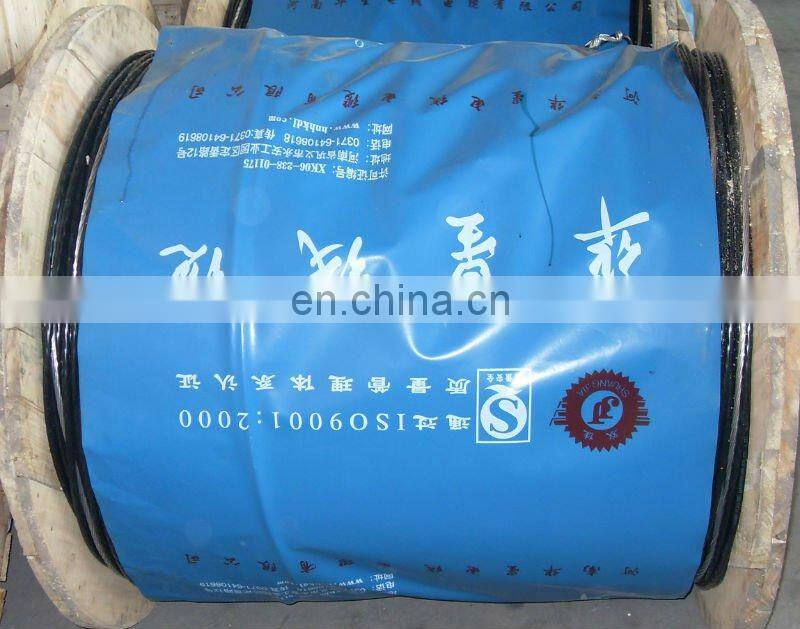

Packing Pictures:
