Application
This copper/aluminum conductor concentric cable is used in power distribution lines of rated voltage 600/1000V and below as the connecting cable from the power source to the electricity meter.
Construction
Conductor: Solid or stranded copper/Aluminum
Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC)
Filler: Polypropylene filament with lapped binding tape
Binder: Binding tape
Inner sheath: Polyvinyl chloride (PVC)
Armouring: Single Core: AWA (Aluminium Wire Armour)
Multi Core: SWA (Steel Wire Armour) STA (Steel Tape Armour)
Sheath: Polyvinyl chloride (PVC)
Number of cores:
1, 2, 3, 3+1, 3+2, 4, 4+1, 5 and so on.
Henan Huaxing Wires and Cables CO.,lTD is an ISO9001/14001/18001 ,CCC certificated Manufacturer of different kinds of Cables ,our products have exported to more than 50 countries .

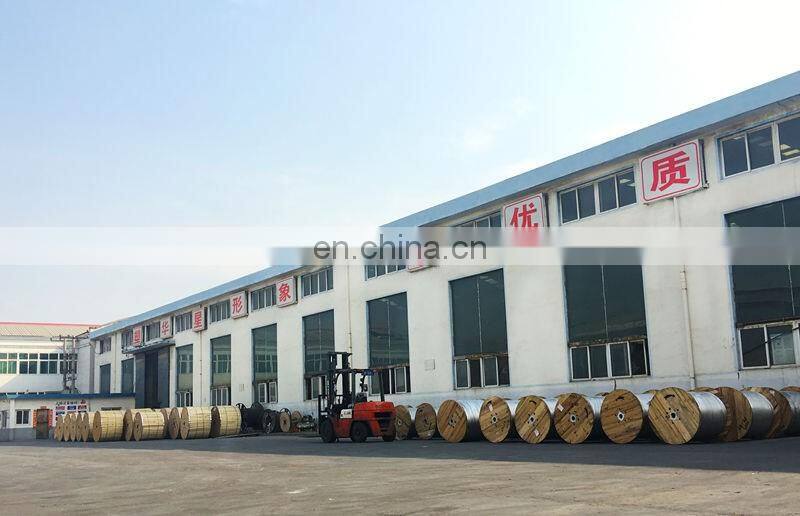

Henan Huaxing Cables and Wires Company .Ltd ,was found in 1984 and expanded in 2005, the workshop covers an area of 67,000 m2, building area is about 28,000 m2,,more than 260 employees , We serve under the skillful & experienced management which provide effective & efficient service to you.
We are also the Long-term supplier of Ministry of Electric power of Yemen ,National Electric Energy Agency of Italy ,Electric power company of France, numbers of listed companies already established long business relationship with us;
Our hot products including Aluminum Rod ,All Aluminum Conductor( AAC),All Aluminum Alloy Conductor (AAAC),Aluminum Conductor Steel Reinforced(ASCR), Aerial Cable, Concentric Cable ,Power Cable ,PV Cable ,Electric Wire and so on;

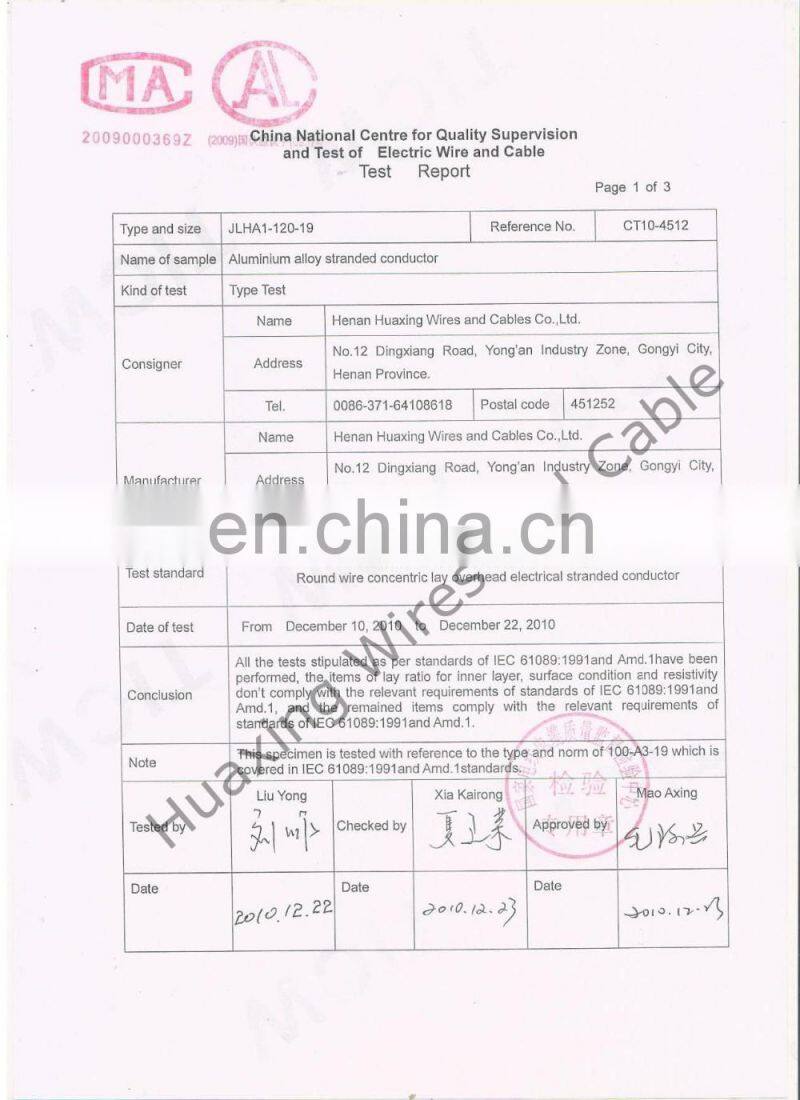

We has owned ISO9001,14001,18001 Internation Quality Certificate ,Environmental Health and Safety Management System Certificate ;CCC certificate for China Compulsory Product Certicate ,Ul Certificate for Solar Cable and SO on ;
1.Packing :Standard Export Packing ;
2.Packing Drum: Plastic Drum /Wooden Drum/Wooden-Steel Drum /Steel Drum
3.Packing Length : Standard Lengh or as required
