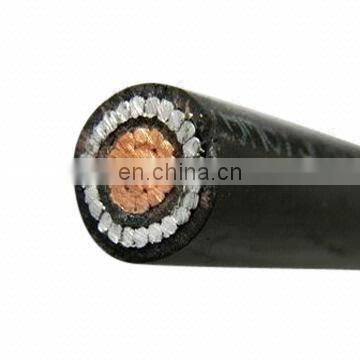

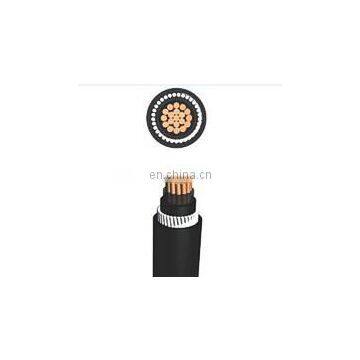

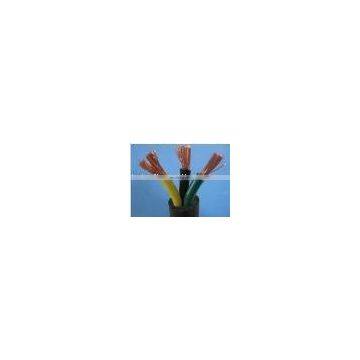

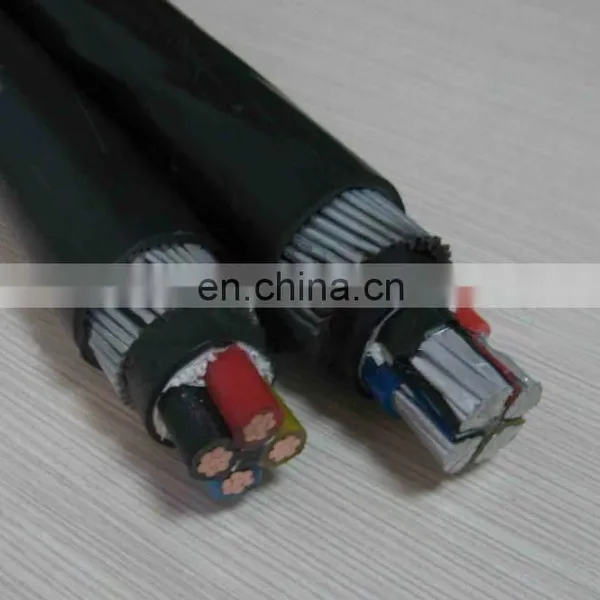

PVC insulation Steel Wire Armoured Power Cable:
Usage:
The cable is used as power distribution and transimssion line at rated voltage 0.6/ 1KV which can be fixed installed.
Operating Characteristc
1) The long-term working tempeture of cable should be not higher than 70 degree.
2) When core is in short-circuit (Max. 5s), the tempeture should not exceed 160 degree.
3) While installation the ambient tempeture should not be lower than o degree, and bending radius should not be less than 10 times of outer diameter.
Model, name and application
Model | Name | Main Application |
V V VLV | PVC Insulated Sheathed Power Cable | For laying in doors, pipe and kin tunels, but unable to bear pulling force. |
V V22 VLV22 | PVC Insulated steel tape armoured and PVC sheathed power cable | For laying on in indoor, tunels and underground, able to bear pulling force and pressure |
V V32 VLV32 | PVC insulated fine steel wire armoured and PVC sheathed power cable | For laying indoor, tunels and water, bear certain axis pulling force |
ZR-V V ZR-VLV | PVC insulated PVC sheathed flame retardant power cable | For laying indoor, pipe and kin tunels, but unable to bear pulling force and pressure. |
ZR-V V22 ZR- VLV22 | PVC insulated steel tape armoured and PVC sheathed flame retardant power cable | For laying indoor, tunnels and underground, able to bear pulling force and pressure |
ZR-V V32 ZR-VLV 32 | PVC insulated fine steel wire armoured and PVC sheathed flame retardant power cable | For laying indoor, tunnels and water, able to bear pulling force and pressure. |
ZR-V V42 ZR-VLV42 | PVC insulated steel wire armoured and PVC sheathed flame retardant power cable | For laying tunels, water and other upright place, bear certain axis pulling force |
If you are interested in our products, pls supply more specification, such as, how many cores, nominal section area, conductor material(aluminum or copper) and usuage to me. Then,I will send our best quotation to you.
