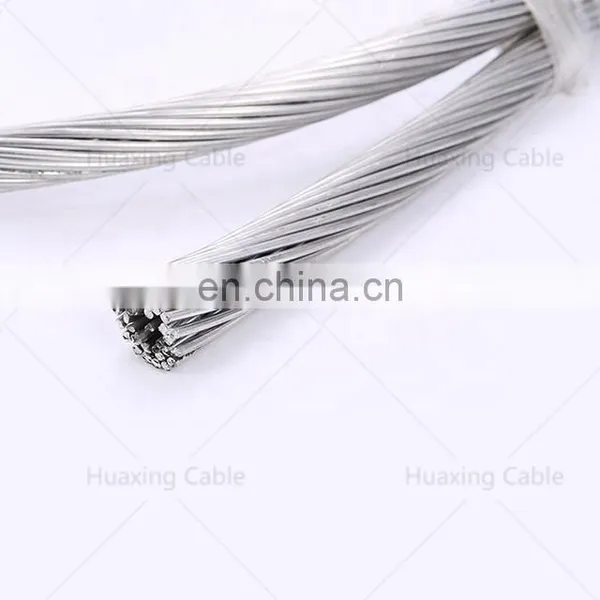

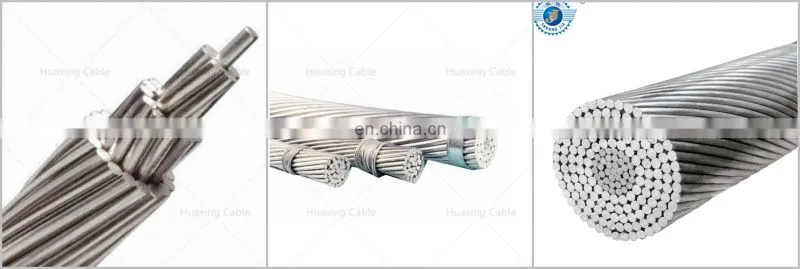

Help CenterPower Transmission Line AAC AAAC ACAR Overhead Conductor
Related Products
-
High Quality Factory Supply Aluminum Alloy RodUS$ 0.5 - 3.2MOQ: 3 Meters -
High Quality Heat-resisting Aluminum Alloy ConductorUS$ 0.5 - 3.5MOQ: 500 Meters
-
Bare Copper WireUS$ 0.1 - 1.5MOQ: 500 Meters
-
Bare Copper WireUS$ 0.1 - 1.5MOQ: 500 Meters
-
Galvanized Steel WireUS$ 0.5 - 1.5MOQ: 1000 Meters
1. Applications
Conductor(AAAC) have been widely used in power transmission lines with various voltage levels, and also used in power lines across great rivers, heavy ice area, and other places special geographical characteristics. The conductor have excellent advantages of high strength, large current carrying capacity and good catenary property as well as wear-resistance, anti-crush and corrosion-proof with simple structure, convenient installation and maintenance, low cost for the line, large transmission capacity.
2. Specifications
Conductor(AAAC) bear conductor meets or exceeds the following ASTM Specifications:
B-398 Aluminum Alloy 6201-T81 Wire for Electrical Purpose.
B-399 Concentrical-Lay-Stranded 6201-T81 Aluminum Alloy Conductors
3. Product Performance
(1). The electrical performance of AAAC is indicated in DCΩ /km(20oC). The resistivity of aluminum alloy wire for stranded wires is:
LHA1: not greater than 32.840nΩ . m
LHA2: not greater than 32.530nΩ . m
(2). The rated tensile strength of AAAC is denoted with the result of total cross-section areas of all aluminum alloy conductors multiplied by min. Tensile strength of corresponding size specified in the standard for aluminum alloy wire
We would like to introduce ourselves as an ISO9001/14001/18001 ,CCC ,UL certificated Manufacturer of different kinds of Cables ,our products have exported to more than 50 countries .
Henan Huaxing Cables and Wires Company .Ltd ,was found in 1984 and expanded in 2005, the workshop covers an area of 67,000m2, building area is about 28,000m2,,more than 260 employees , We serve under the skillful & experienced management which provide effective & efficient service to you.
We are also the Long term supplier of Ministry of Electric power of Yemen ,National Electric Energy Agency of Italy ,Electric power company of France, numbers of listed companies already established long business relationship with us .
Our hot products including Aluminum Rod ,All Aluminum Conductor( AAC),All Aluminum Alloy Conductor (AAAC),Aluminum Conductor Steel Reinforced(ASCR), Aerial Cable, Concentric Cable ,Power Cable ,PV Cable ,Electric Wire and so on;
1) Wrapped in rolls/coils/rings with Plastic film for small diameter cables like building wires.
2) Cables are normally supplied in lengths of 100 meters,500 meters and 1000 meters according to cable size.Other length could be supplied if required.
3) Treated wooden/steel-wooden drums for big diameter cables.
