Specifications
1.abc aerial cable with xlpe insulation voltage 0.6/1kv
2.abc aerial cable with XLPE bear 90degree
3.abc aerial cable do OEM
Standard: National Standard IEC and ASTM
Rated Voltage: 0.6/1KV
Construction: Phase conductor: aluminum stranded(AAC)
Neutral conductor: aluminum stranded(AAC), aluminum alloy stranded(AAAC), aluminum conductor steel reinforced(ACSR)
Insulation: XLPE or PVC
Application: The cables are designed for aerial power lines and room-entrance wires with voltage up to and including 0.6/1KV.
Uesd for overhead service application such as street linghting, outdoor lighting and temporary service for cunstruction.which improves the safety and reliance of electrified wire netting.
Code and specification
Code Word |
AWG or Kcmil |
Bare Neutral Messenger |
Phase Conductor |
Weight |
||
AL.-ALLOY Stranding and wires Dia(mm) |
Rated strength(lbs) |
Al. Stranding and wires Dia(mm) |
XLPE Insulated thickness(mm) |
(kg/km) |
||
Minex |
2*6AWG+1*30.58 |
7/1.68 |
1110 |
1/4.11 |
1.14 |
152 |
prawn |
2*4AWG+1*48.69 |
7/2.12 |
1760 |
1/5.19 |
1.14 |
229 |
Shrimp |
2*2AWG+1*77.47 |
7/2.67 |
2800 |
7/2.47 |
1.14 |
354 |
Cammarus |
2*1/0AWG+1*123.3 |
7/3.37 |
4460 |
7/3.12 |
1.52 |
569 |
Dungeness |
2*2/0AWG+1*155.4 |
7/3.78 |
5390 |
7/3.50 |
1.52 |
702 |
Cyclops |
2*3/0awg+1*155.4 |
7/3.78 |
5390 |
19/2.13 |
1.52 |
703 |
Flustra |
2*3/0AWG+1*195.7 |
7/4.25 |
6790 |
19/2.39 |
1.52 |
869 |
LEPAS |
2*4/0AWG+1*246.9 |
7/4.77 |
8560 |
19/2.68 |
1.52 |
1077 |
CRAB |
2*4AWG+1*30.58 |
7/1.68 |
1110 |
7/1.96 |
1.14 |
208 |
SDCRAB |
2*1/0AWG+1*77.47 |
7/2.67 |
2800 |
7/3.12 |
1.52 |
504 |

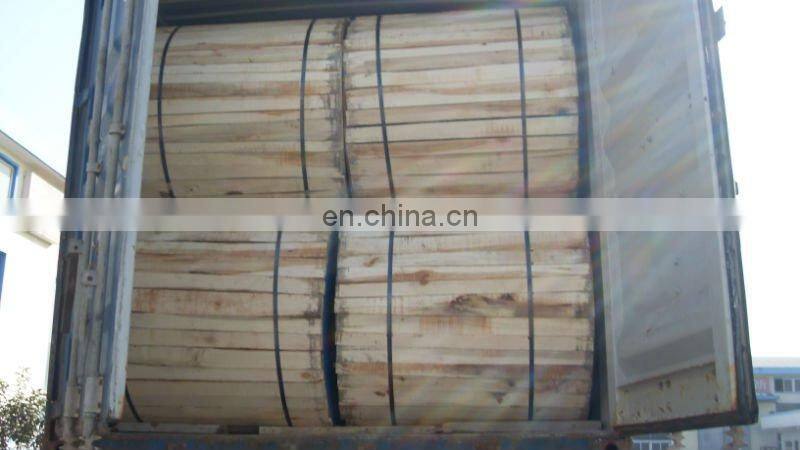

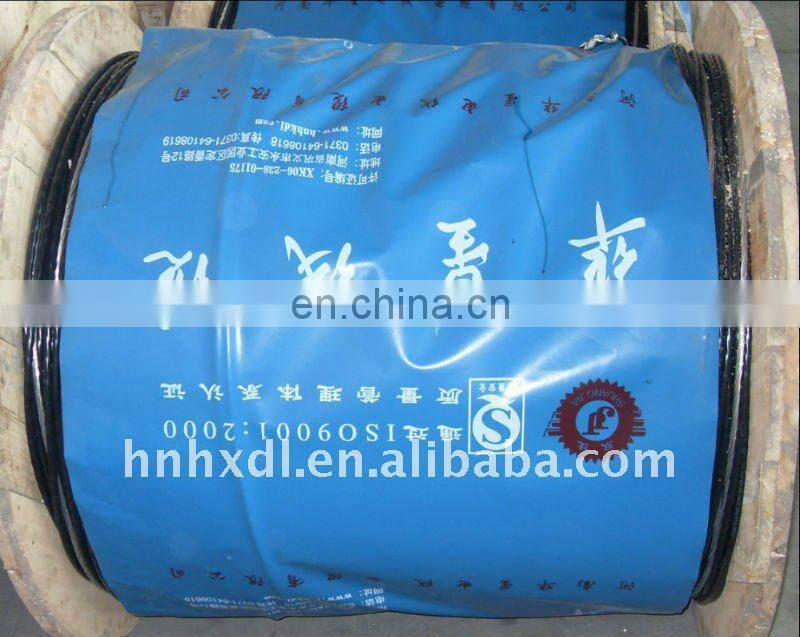

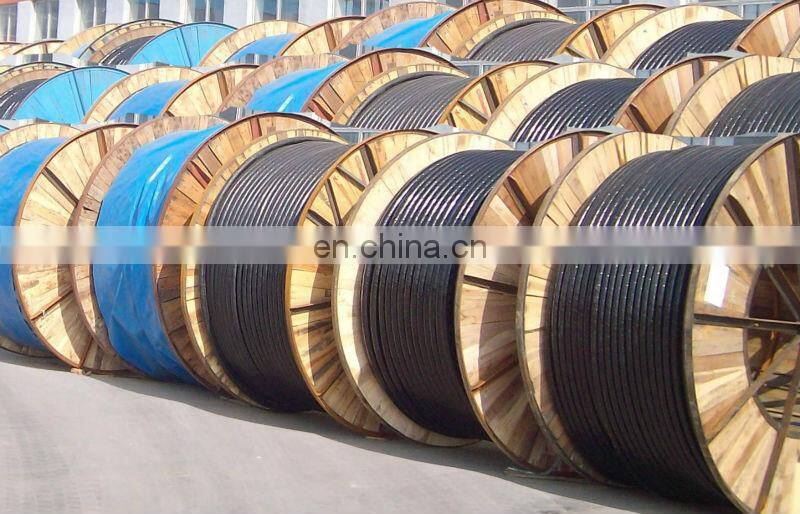

Packing: Standard wooden drum
Shipping: FOB/CIF QINGDAO
About the questions you want to know ,here are our answers:
1):Minimum order quantity : Usually it is 1km.But pls donot worry,no matter how much your quantity is ,we would like to be on service for you and do our best to meet your requirement.
2): FOB price : after your confirmation ,we will offer you our most competitive price.
3): FOB PORT: Usually it is Qingdao port in China.But if you need ,we also can do other ports.
4): Delivery lead time: In 10-25days after receiving 30%T/T,or According to your quantity.
5): Payment terms: 30% deposit by T/T, 70% T/T after checking the copy of B/L. Or irrevocable L/C at sight.
If any needs,pls contact us.We will try our best to meet your requiryments.Thanks.
