Specifications
Aerial cable(ABC) is applied to overhead power line with rated voltage 0.6/1kv and 10KV.

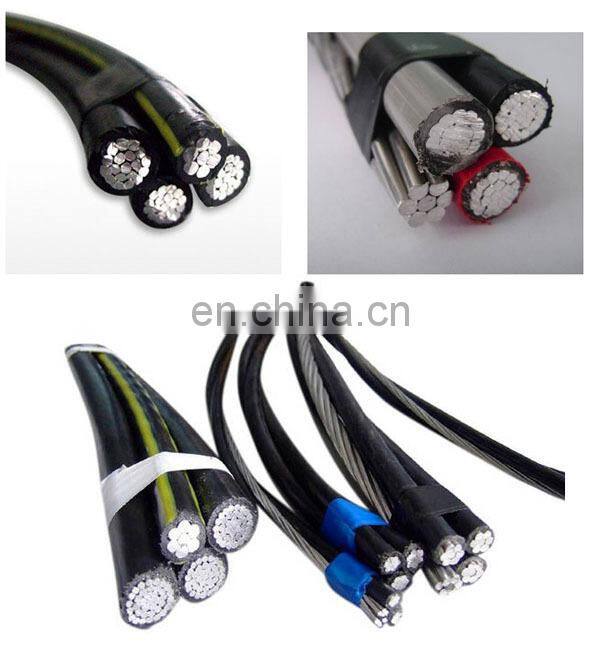

Aluminium stranded conductor(compacted or non- compacted), AAAC messenger core(or ACSR messenger core), XLPE(or HDPE) insulated, Twisted (or Parallel)power cable
The product is a new type of aerial cable for power transmitting, It is extensively used in overhead power transmission line, It improves the safety and reliance of electrified wire netting.
Model
Code Word |
AWG or Kcmil |
Bare Neutral Messenger |
Phase Conductor |
Weight |
||
AL.-ALLOY Stranding and wires Dia(mm) |
Rated strength(lbs) |
Al. Stranding and wires Dia(mm) |
XLPE Insulated thickness(mm) |
(kg/km) |
||
Minex |
2*6AWG+1*30.58 |
7/1.68 |
1110 |
1/4.11 |
1.14 |
152 |
prawn |
2*4AWG+1*48.69 |
7/2.12 |
1760 |
1/5.19 |
1.14 |
229 |
Shrimp |
2*2AWG+1*77.47 |
7/2.67 |
2800 |
7/2.47 |
1.14 |
354 |
Cammarus |
2*1/0AWG+1*123.3 |
7/3.37 |
4460 |
7/3.12 |
1.52 |
569 |
Dungeness |
2*2/0AWG+1*155.4 |
7/3.78 |
5390 |
7/3.50 |
1.52 |
702 |
Cyclops |
2*3/0awg+1*155.4 |
7/3.78 |
5390 |
19/2.13 |
1.52 |
703 |
Flustra |
2*3/0AWG+1*195.7 |
7/4.25 |
6790 |
19/2.39 |
1.52 |
869 |
LEPAS |
2*4/0AWG+1*246.9 |
7/4.77 |
8560 |
19/2.68 |
1.52 |
1077 |
CRAB |
2*4AWG+1*30.58 |
7/1.68 |
1110 |
7/1.96 |
1.14 |
208 |
SDCRAB |
2*1/0AWG+1*77.47 |
7/2.67 |
2800 |
7/3.12 |
1.52 |
504 |

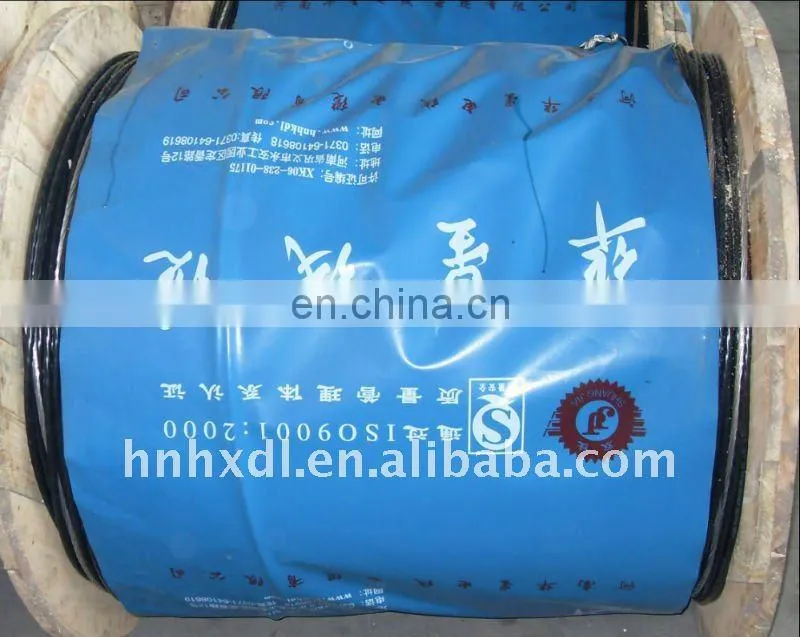

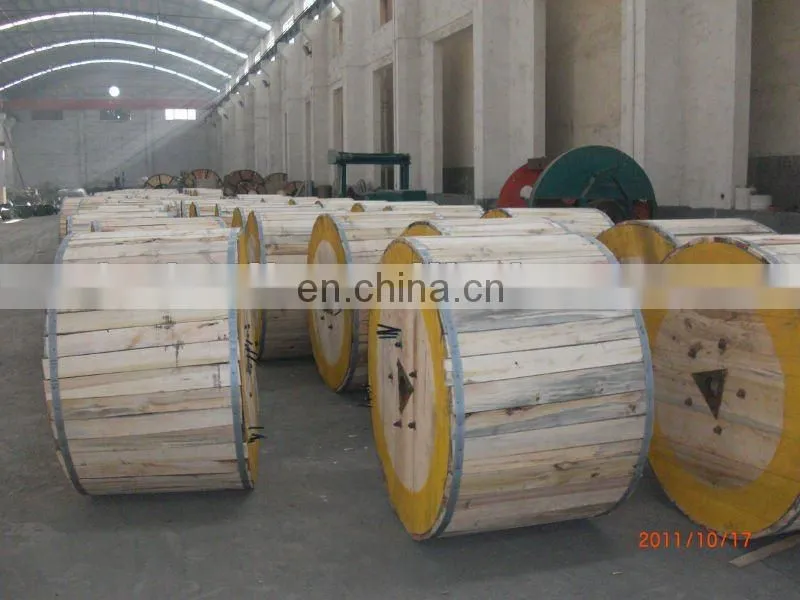

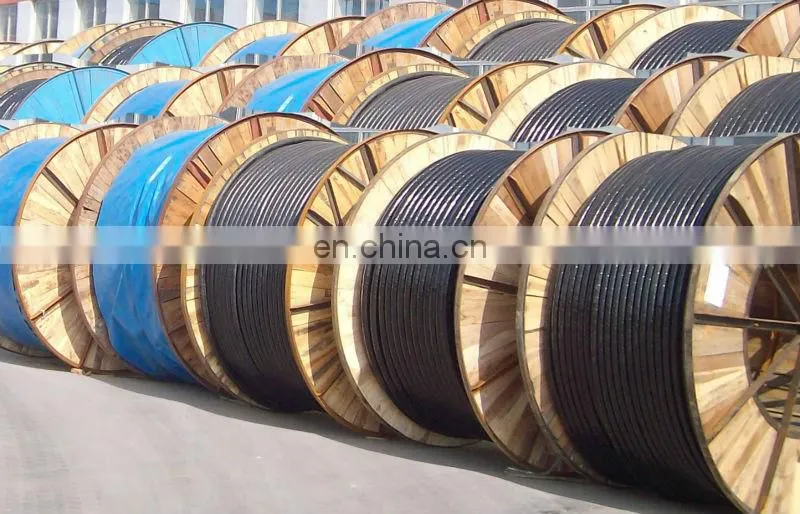

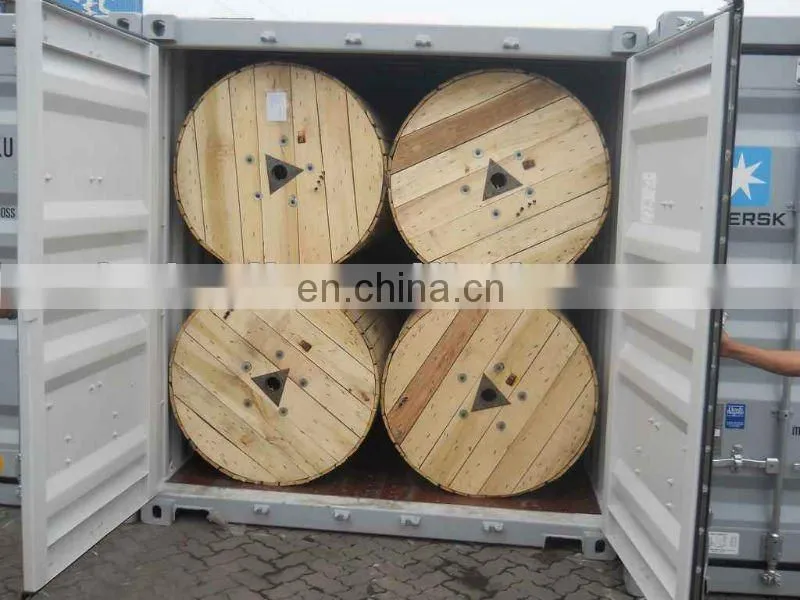

Packing: Standard wooden drum

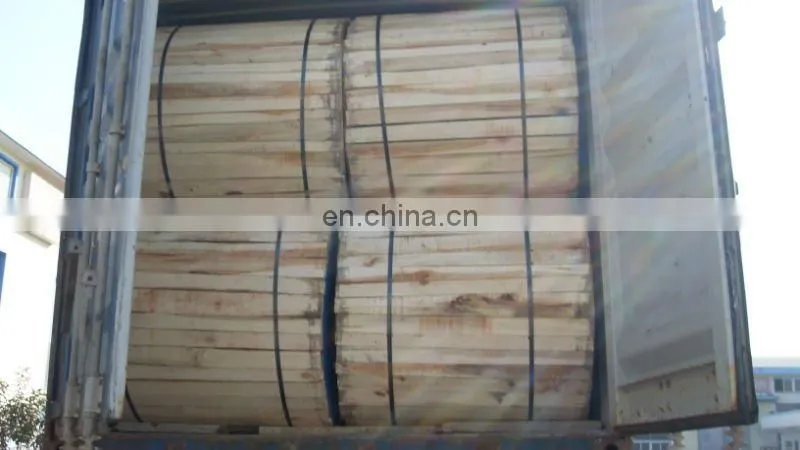

Shipping: FOB/CIF QINGDAO
About the questions you want to know ,here are our answers:
1):Minimum order quantity : Usually it is 1km.But pls donot worry,no matter how much your quantity is ,we would like to be on service for you and do our best to meet your requirement.
2): FOB price : after your confirmation ,we will offer you our most competitive price.
3): FOB PORT: Usually it is Qingdao port in China.But if you need ,we also can do other ports.
4): Delivery lead time: In 10-25days after receiving 30%T/T,or According to your quantity.
5): Payment terms: 30% deposit by T/T, 70% T/T after checking the copy of B/L. Or irrevocable L/C at sight.
If any needs,pls contact us.We will try our best to meet your requiryments.Thanks.
