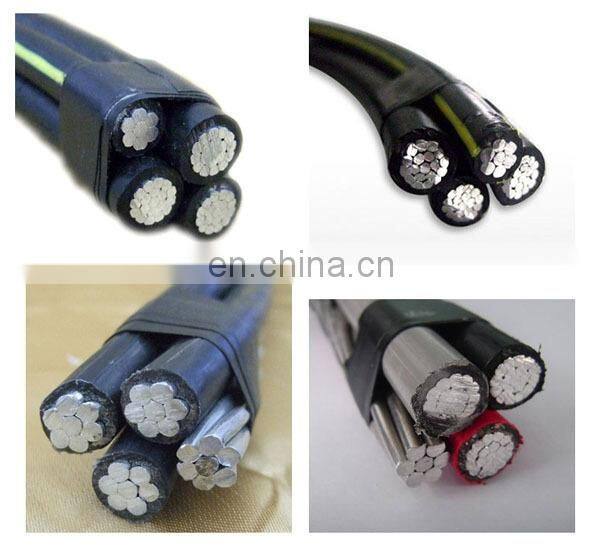

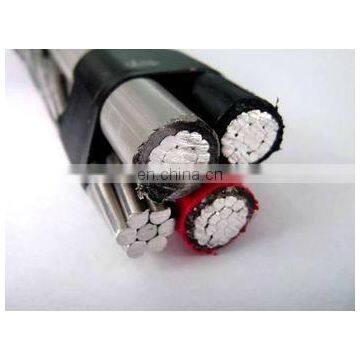

0.6/1kV Hot Sale ABC cable Aluminum Wire
- Qingdao
- T/T Credit Card
You May Like
-
Aluminum Conductor XLPE Insulated 11kv ABC Cable High Voltage ABC Cable
-
Medium voltage overhead abc power cable/abc electrical cable/xlpe twisted cable abc
-
high quantity cable ACSR AAAC AAC ABC
-
ABC Cable overhead line aerial bundle cable
-
BS Standard 0.6/1kv Al Conductor XLPE/PE/PVC Insulated LV/MV/HV/LV ABC Cable
-
11kv/22kv/ 33kv AL conductor XLPE InsulatedABC Aerial Bundle Cable
Product Description
Service drop wire
(1).Application
ABC Cable Primarily used for 120 volt overhead service applications such as street lighting,outdoor lighting,and temporary service for construction.To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75oC for polyethylene insulated conductors or 90oC for crosslinked polyethylene(XLP)insulated conductors.
(2).Construction
Code Word | Phase conductor | Bare Neutral Messenger | Nominal Lay Length | Weight Per 1000ft. (lbs.) | Allowable Ampacities+ | |||||||
Size (AWG) | Stranding | Insul. Thick. (Mils) | Size (AWG) | Stranding | Rated Strength (lbs.) | inches | XLP | POLY | XLP | POLY | ||
AAC Neutral-messenger | ||||||||||||
Pekingese | 6 | 1 | 45 | 6 | 7 | 563 | 10.36 | 61 | 61 | 85 | 70 | |
Collie | 6 | 7 | 45 | 6 | 7 | 563 | 10.36 | 64 | 64 | 85 | 70 | |
Dachshund | 4 | 1 | 45 | 4 | 7 | 881 | 10.36 | 92 | 92 | 115 | 90 | |
Spaniel | 4 | 7 | 45 | 4 | 7 | 881 | 10.36 | 96 | 96 | 115 | 90 | |
Doberman | 2 | 7 | 45 | 2 | 7 | 1350 | 14.88 | 147 | 147 | 150 | 120 | |
Malemute | 1/0 | 9 | 60 | 1/0 | 7 | 1990 | 14.88 | 234 | 234 | 205 | 160 | |
Code words for XLP insulated products are formed by adding/XLPto the conventional code words above(e.g.-Chihuahua/XLP)
+Conductor temperature of 90oC for XLP,75Oc for Poly;ambient temperature of 40oC;emissivity 0.9;2ft./sec. Wind in sun.
