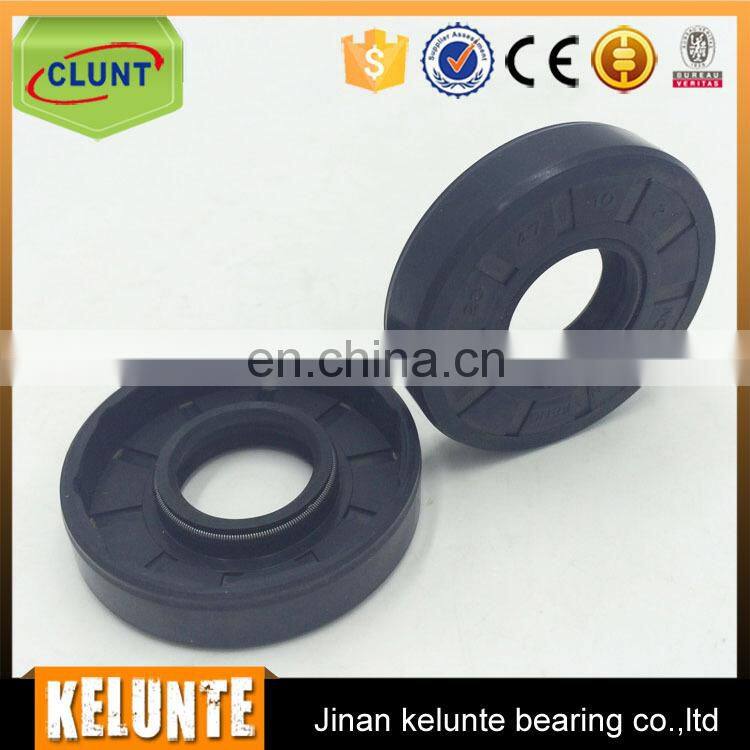

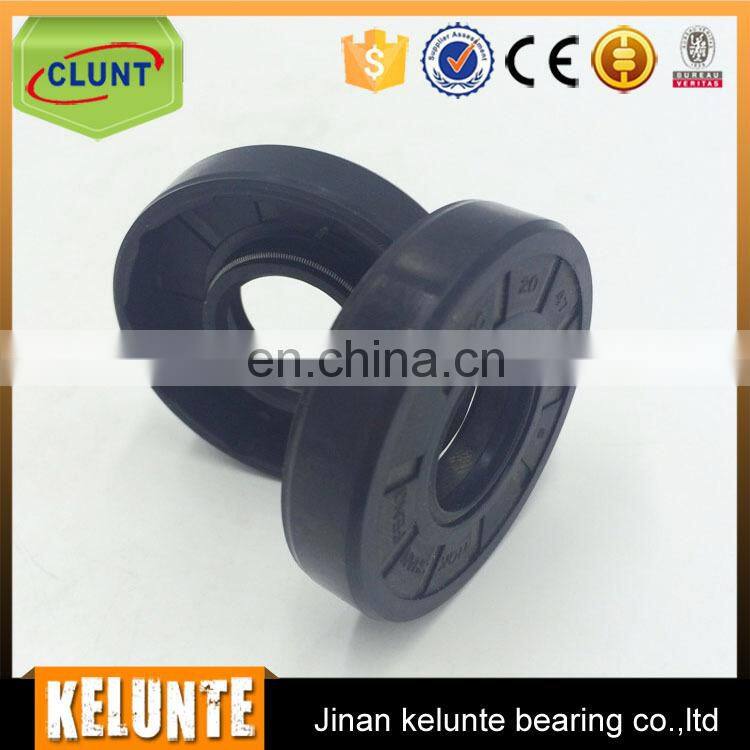

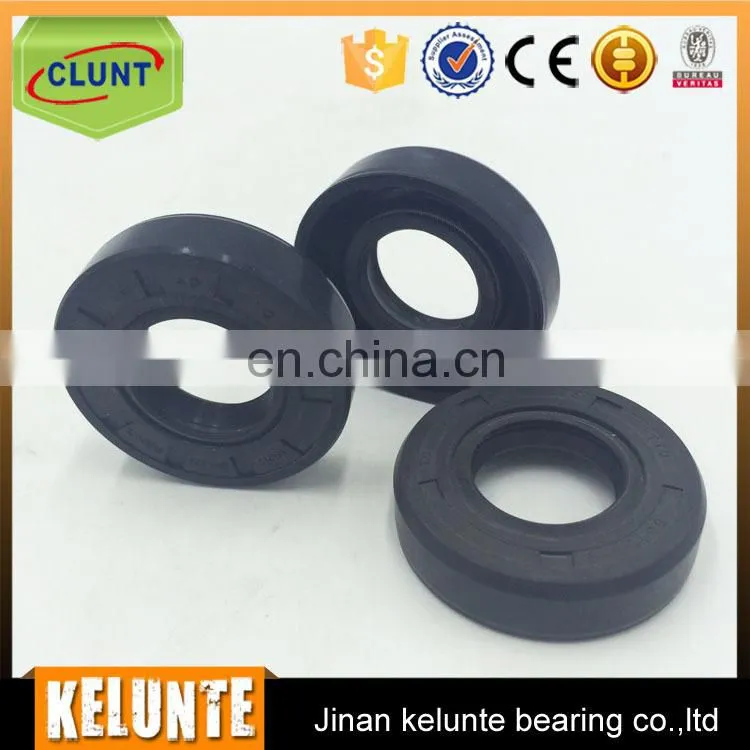

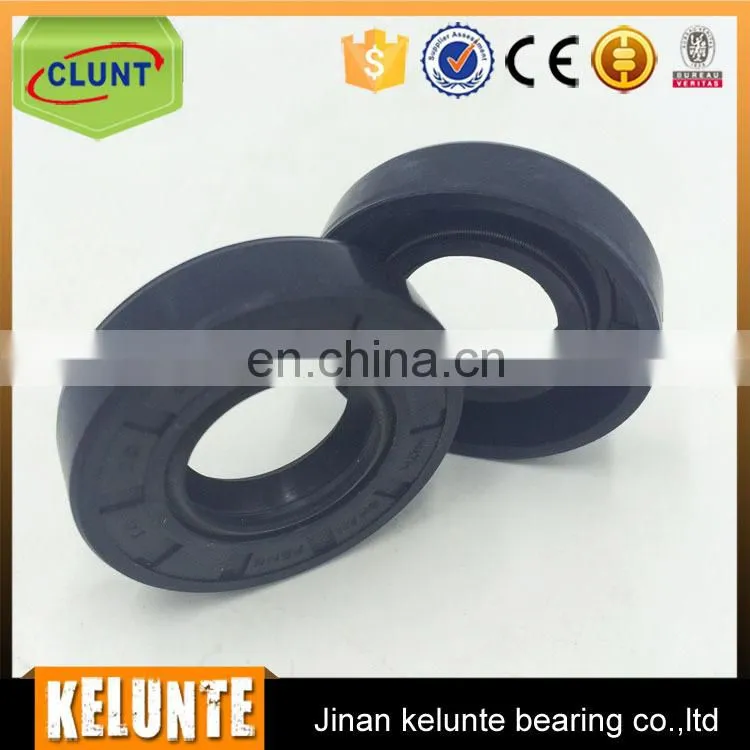

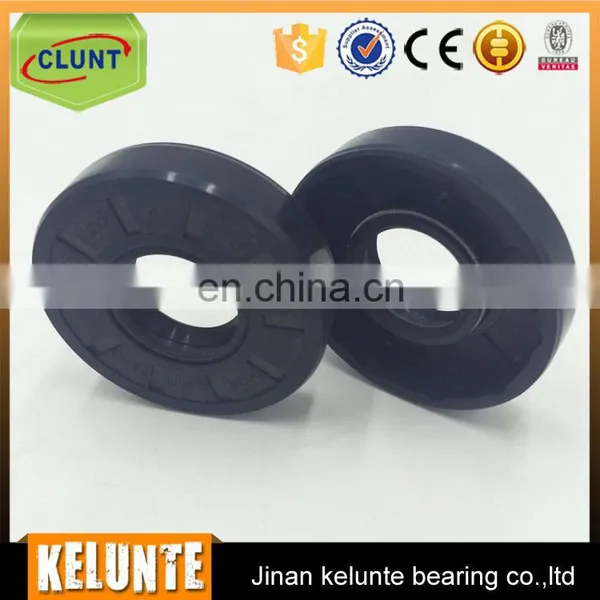

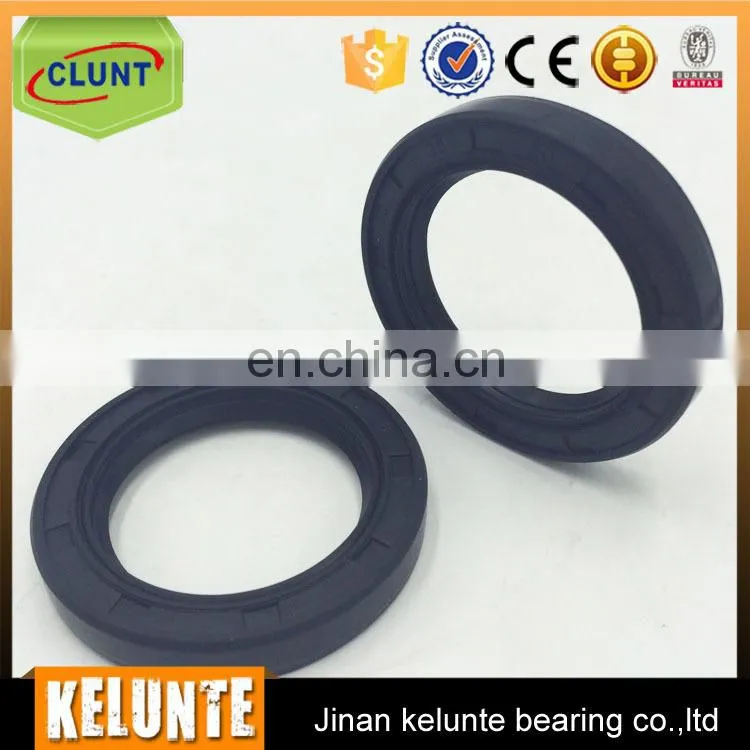

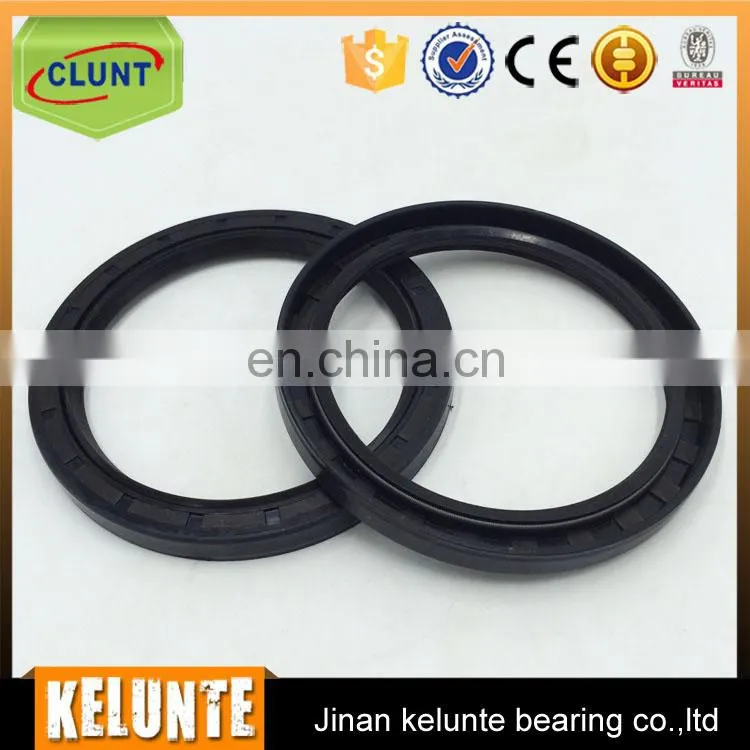

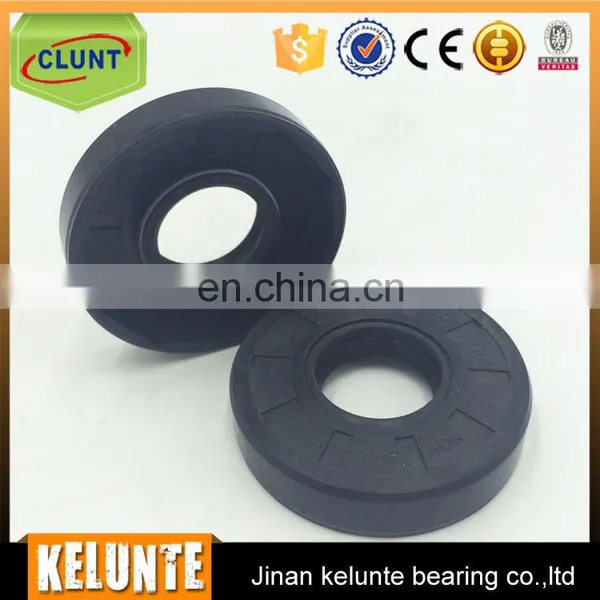

Spring Loaded Metric Rotary Shaft TC Oil Seal Double Lip 24x35x7mm
Descriptions of oil seals/shaft seals/double lip seals
Oil seals described as a rotary shaft oil seal or lip seal, and can be manufactured in the following materials.
- Nitrile or NBR is the most commonly used material. Nitrile is excellent with most mineral oils and greases. Temperature range -65° to 225°F (-54° to 107°C) Normally coloured black
- FPM Premium lip material for the widest temperature range and chemical resistance. Temperature range from -40° to over 400°F (-40° to over 204°C) They resist most special lubricants and chemicals that can destroy nitrile, polyacrylates and silicones. This premium material, with its extreme resistance to abrasion, provides superior performance and wear. Normally coloured brown

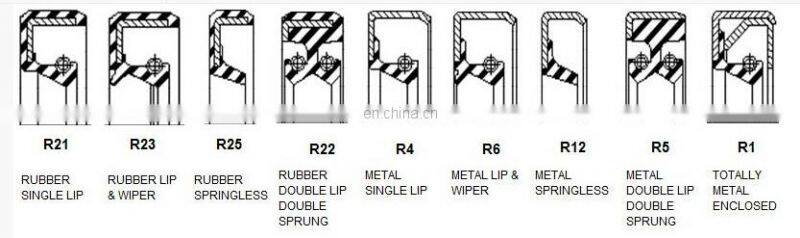

- R21 Rubber with single lip
- R23 Rubber with a wiper lip
- R4 Metal single lip
The TC Oil Seal is specifically designed to keep out water and dirt. The rubber coated outside diameter creates an optimum seal at the hub. The steel garter spring guarantees constant pressure on the axle shaft over the life of the seal. Great for replacing your damaged oil seal.
| Construction The seal cases are made from SAE 1008-1010 Carbon Steel and are often coated in a very thin layer of Nitrile rubber to assist sealing in the housing. The principle function of the metal case is to impart rigidity and strength to the seal. | |
| The spring is made from SAE 1050-1095 Carbon Spring Steel which has a protective zinc coating. The principle function of the spring is to maintain an even gripping pressure around the shaft |
Technical Specs of TC oil seal 24x35x7mm
| BRAND | NAK |
|---|---|
| Unit Of Measure | METRIC |
| Inside Diameter | 24.000mm |
| Outside Diameter | 35.000mm |
| Width | 7.000mm |
| Lip Type | R23 Single Lip with Wiper |
| Material | FPM - Rubber |
Resistance to temperature extremes:
Heat
withstands high temperature and simultaneously retains its good mechanical properties better than most other elastomers. Oil and chemical resistance also are relatively unaffected by elevated temperatures. Compounds of remain usefully elastic indefinitely when exposed to laboratory air oven aging up to 204°C (400°F) or to intermittent test exposures up to 260°C (500°F). High temperature service limits are generally considered to be:
3,000 hr. at 232°C (450°F)
1,000 hr. at 260°C (500°F)
240 hr. at 288°C (550°F)
48 hr. at 316°C (600°F)
Cold
1.is generally serviceable in dynamic applications down to -18° to -23°C (0° to -10°F), although special formulations permit its use in static applications down to -54°C (-65°F). Also, it has proven to be satisfactory for static seals used under conditions approaching absolute zero.
2. Resistance to degradation by a greater variety of fluids and chemicals than any non-fluorinated elastomer, providing the best proven fluid resistance of any commercial rubber. Excellent resistance to oils, fuels, lubricants, and most mineral acids.
3. Extremely low permeability to a broad range of substances, including particularly good performance in oxygenated automotive fuels.
4. Resistance to many aliphatic and aromatic hydrocarbon fluids that act as solvents for other rubbers.
5. Exceptionally good resistance to compression set, even at temperatures which can embrittle other non-fluorinated elastomers.
6. Exceptionally good resistance to atmospheric oxidation, sun, and weather. Excellent resistance to fungus and mold.
7. Good electrical properties in low voltage, low frequency applications.
8. Low burning characteristics; inherently more resistant to burning than other non-fluorinated hydrocarbon rubbers.
| Item | (d) Shaft Diameter | (D) Outer Diameter | (b) Width |
|---|---|---|---|
| MS6X16X5 | 6 mm | 16 mm | 5 mm |
| MS6X16X7 | 6 mm | 16 mm | 7 mm |
| MS6X22X7 | 6 mm | 22 mm | 7 mm |
| MS7X16X7 | 7 mm | 16 mm | 7 mm |
| MS7X22X7 | 7 mm | 22 mm | 7 mm |
| MS8X16X7 | 8 mm | 16 mm | 7 mm |
| MS8X18X5 | 8 mm | 18 mm | 5 mm |
| MS8X18X7 | 8 mm | 18 mm | 7 mm |
| MS8X22X7 | 8 mm | 22 mm | 7 mm |
| MS8X22X7V | 8 mm | 22 mm | 7V mm |
| MS8X24X7 | 8 mm | 24 mm | 7 mm |
| MS9X18X7 | 9 mm | 18 mm | 7 mm |
| MS9X22X7 | 9 mm | 22 mm | 7 mm |
| MS9X26X7 | 9 mm | 26 mm | 7 mm |
| MS10X19X7 | 10 mm | 19 mm | 7 mm |
| MS10X22X7 | 10 mm | 22 mm | 7 mm |
Jinan Kelunte Bearing Co., Ltd. is a professional bearing manufacturer and is engaged in the imported bearings. Our company is engaged in the imported bearings,company's main imported Roller Bearing,Ball Bearing,deep groove ball bearings,taper roller bearings,angular contact ball bearings,Pillow Block Bearing,Ceramic Bearing,cylindrical roller bearing, spherical roller bearing . and our brands:CLUNT.
