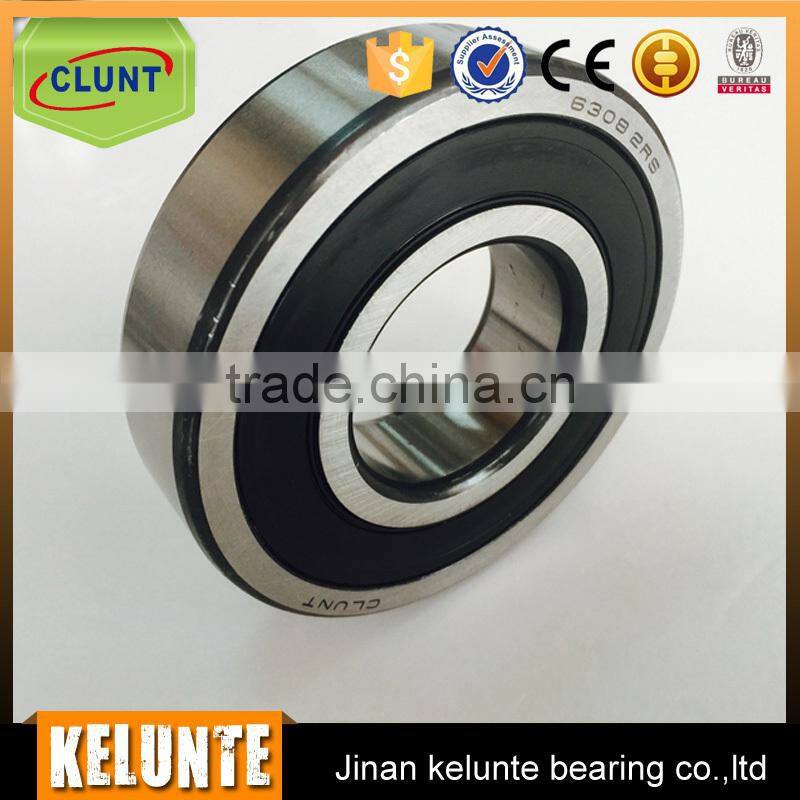

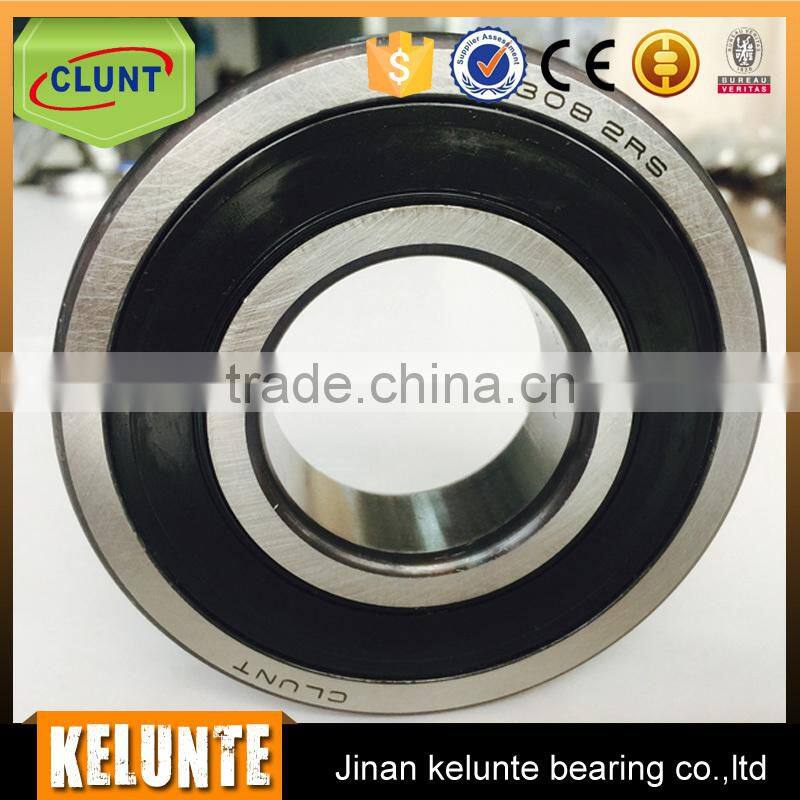

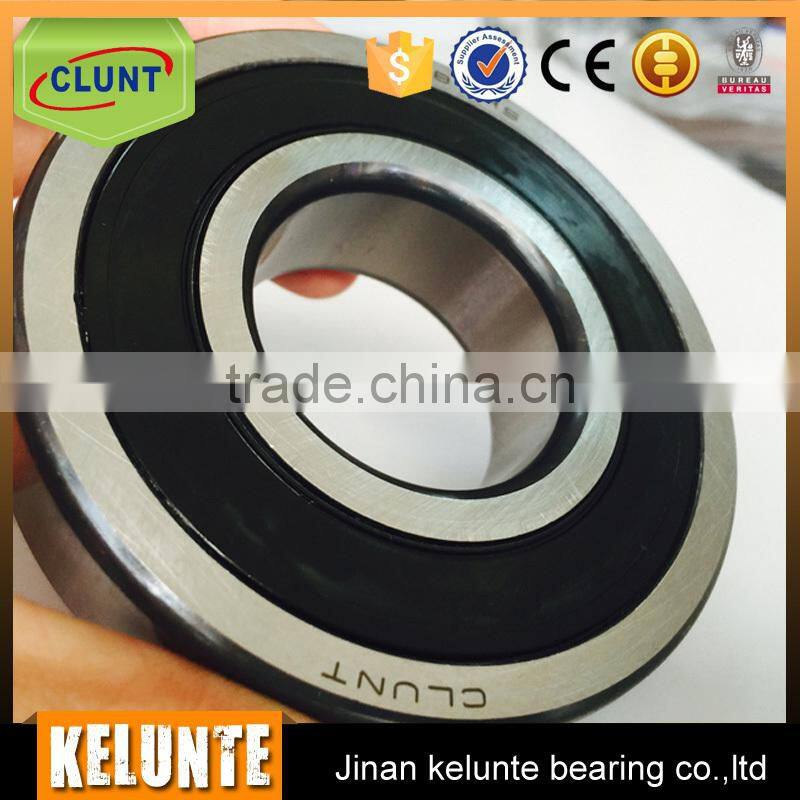

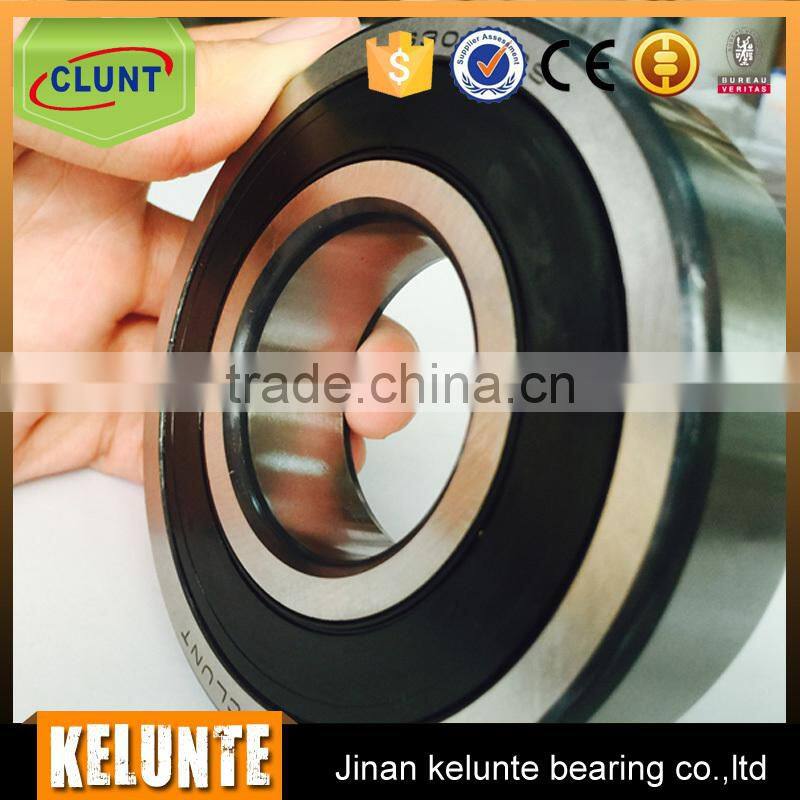

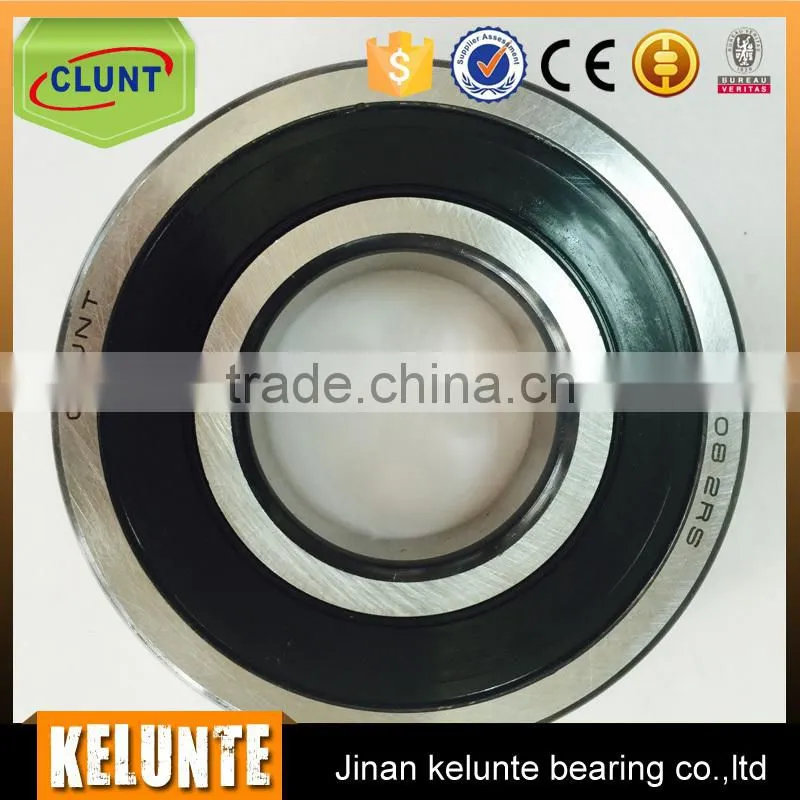

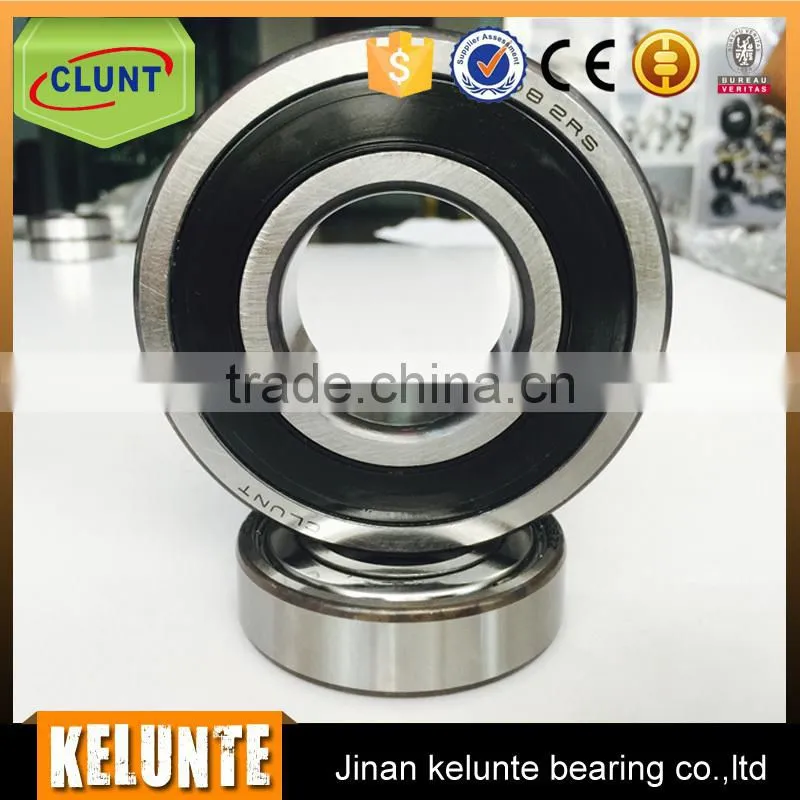

Deep groove ball bearing 6309N/C3 used in layshaft of main tank
Deep groove ball bearing 6309N/C3 used in layshaft of main tank details:
Bearing |
Bore |
Outer Diameter |
Width |
Radius |
Basic Load Rating (lbs) |
|||||
mm |
inch |
mm |
inch |
mm |
inch |
mm |
inch |
Dynamic |
Static |
|
6309 |
45 |
1.7717 |
100 |
3.9370 |
25 |
.9843 |
2.5 |
.098 |
11900 |
7200 |
6309N Single Row Radial Ball Bearings have different features honed raceways and deep which results in the fine craftsmanship of a perfectly balanced bearing. Functionally it is similar to the 6200 Series Radial Ball Bearing. This specific bearing has a high quality bearing used in axial fans, motors, drive axles, clutch, idler wheels, HVAC, snow mobiles and many other industrial applications.
The 6300 Series Radial Ball Bearing is made of chrome steel, pre-lubricated with grease and has rubber seals on both sides to protect the bearings from dust or any other types of possible contamination.
Product list
6000 Series
| N0. | Bore |
O.D | Width | Chamfer | Load Rating | Maximuum Seed | Weight | ||
mm |
mm | mm | mm |
Dynamic Cr |
Static Cor |
Grease r/min |
Oil r/min |
Kg/pcs | |
| 604 | 4 | 12 | 4 | 0.2 | 0.97 | 0.36 | 36000 | 44000 | 0.0021 |
| 605 | 5 | 14 | 5 | 0.2 | 1.33 | 0.505 | 32000 | 40000 | 0.0035 |
| 606 | 6 | 17 | 6 | 0.3 | 2.19 | 0.865 | 30000 | 38000 | 0.006 |
| 607 | 7 | 19 | 6 | 0.3 | 2.24 | 0.91 | 28000 | 36000 | 0.008 |
| 608 | 8 | 22 | 7 | 0.3 | 3.35 | 1.4 | 26000 | 34000 | 0.012 |
| 609 | 9 | 24 | 7 | 0.3 | 3.4 | 1.45 | 24000 | 32000 | 0.014 |
| 6000 | 10 | 26 | 8 | 0.3 | 4.55 | 1.96 | 22000 | 30000 | 0.019 |
| 6001 | 12 | 28 | 8 | 0.3 | 5.1 | 2.39 | 19000 | 26000 | 0.021 |
| 6002 | 15 | 32 | 9 | 0.3 | 5.6 | 2.83 | 18000 | 24000 | 0.03 |
| 6003 | 17 | 35 | 10 | 0.3 | 6.8 | 3.35 | 17000 | 22000 | 0.039 |
| 6004 | 20 | 42 | 12 | 0.6 | 9.4 | 5.05 | 15000 | 19000 | 0.069 |
| 6005 | 25 | 47 | 12 | 0.6 | 10.1 | 5.85 | 14000 | 18000 | 0.08 |
| 6006 | 30 | 55 | 13 | 0.6 | 13.2 | 8.3 | 12000 | 15000 | 0.116 |
| 6007 | 35 | 62 | 14 | 1.0 | 16 | 10.3 | 10000 | 14000 | 0.115 |
| 6008 | 40 | 68 | 15 | 1.0 | 16.8 | 11.5 | 8000 | 11000 | 0.19 |
6200 Series
| N0. | Bore |
O.D | Width | Chamfer | Load Rating | Maximuum Seed | Weight | ||
mm |
mm | mm | mm |
Dynamic Cr |
Static Cor |
Grease r/min |
Oil r/min |
Kg/pcs | |
| 624 | 4 | 13 | 5 | 0.2 | 1.15 | 0.4 | 36000 | 45000 | 0.0032 |
| 625 | 5 | 16 | 5 | 0.3 | 1.76 | 0.680 | 32000 | 40000 | 0.0050 |
| 626 | 6 | 19 | 6 | 0.3 | 2.34 | 0.885 | 28000 | 36000 | 0.0080 |
| 627 | 7 | 22 | 7 | 0.3 | 3.35 | 1.400 | 26000 | 34000 | 0.0130 |
| 628 | 8 | 24 | 8 | 0.3 | 4.00 | 1.590 | 24000 | 32000 | 0.0170 |
| 629 | 9 | 26 | 8 | 0.3 | 4.55 | 1.960 | 22000 | 30000 | 0.0190 |
| 6200 | 10 | 30 | 9 | 0.6 | 5.10 | 2.390 | 19000 | 26000 | 0.0300 |
| 6201 | 12 | 32 | 10 | 0.6 | 6.10 | 2.750 | 18000 | 24000 | 0.0360 |
| 6202 | 15 | 35 | 11 | 0.6 | 7.75 | 3.600 | 17000 | 22000 | 0.0460 |
| 6203 | 17 | 40 | 12 | 0.6 | 9.60 | 4.600 | 16000 | 20000 | 0.0650 |
| 6204 | 20 | 47 | 14 | 1.0 | 12.80 | 6.650 | 14000 | 18000 | 0.1070 |
| 6205 | 25 | 52 | 15 | 1.0 | 14.00 | 7.850 | 12000 | 16000 | 0.1250 |
| 6206 | 30 | 62 | 16 | 1.0 | 19.50 | 11.300 | 10000 | 13000 | 0.2010 |
6300 Series
| N0.
|
Bore |
O.D | Width | Chamfer | Load Rating | Maximuum Seed | Weight | ||
mm |
mm | mm | mm |
Dynamic Cr |
Static Cor |
Grease r/min |
Oil r/min |
Kg/pcs | |
| 6300 | 10 |
35 | 11 | 0.6 | 8.2 |
3.5 |
18000 |
24000 |
0.053 |
| 6301 | 12 | 37 | 12 | 1.0 | 9.7 | 4.2 | 17000 | 22000 | 0.06 |
| 6302 | 15 | 42 | 13 | 1.0 | 11.4 | 5.45 | 16000 | 20000 | 0.082 |
| 6303 | 17 | 47 | 14 | 1.0 | 13.5 | 6.55 | 15000 | 19000 | 0.115 |
| 6304 | 20 | 52 | 15 | 1.1 | 15.9 | 7.9 | 14000 | 17000 | 0.144 |
6800 Series
| N0.
|
Bore |
O.D | Width | Chamfer | Load Rating | Maximuum Seed | Weight | ||
mm |
mm | mm | mm |
Dynamic Cr |
Static Cor |
Grease r/min |
Oil r/min |
Kg/pcs | |
| 685 | 5 |
11 | 3 | 0.15 | 0.715 |
0.282 |
35000 |
45000 |
0.0011 |
| 686 | 6 | 13 | 3.5 | 0.15 | 1.08 | 0.44 | 33000 | 42000 | 0.0019 |
| 687 | 7 | 14 | 3.5 | 0.15 | 1.17 | 0.505 | 31000 | 40000 | 0.0021 |
| 688 | 8 | 16 | 4 | 0.2 | 1.61 | 0.715 | 29000 | 38000 | 0.0031 |
| 689 | 9 | 17 | 4 | 0.2 | 1.72 | 0.82 | 28000 | 36000 | 0.0032 |
| 6800 | 10 | 19 | 5 | 0.3 | 1.83 | 0.925 | 26000 | 34000 | 0.005 |
| 6801 | 12 | 21 | 5 | 0.3 | 1.92 | 1.04 | 22000 | 30000 | 0.006 |
| 6802 | 15 | 24 | 5 | 0.3 | 2.08 | 1.26 | 20000 | 28000 | 0.007 |
| 6803 | 17 | 26 | 5 | 0.3 | 2.23 | 1.46 | 19000 | 26000 | 0.008 |
| 6804 | 20 | 32 | 7 | 0.3 | 4 | 2.47 | 17000 | 22000 | 0.019 |
| 6805 | 25 | 37 | 7 | 0.3 | 4.3 | 2.95 | 15000 | 19000 | 0.022 |
| 6806 | 30 | 42 | 7 | 0.3 | 4.7 | 3.65 | 13000 | 17000 | 0.026 |
| 6807 | 35 | 47 | 7 | 0.3 | 4.9 | 4.05 | 11000 | 15000 | 0.029 |
6900 Series
| N0.
|
Bore |
O.D | Width | Chamfer | Load Rating | Maximuum Seed | Weight | ||
mm |
mm | mm | mm |
Dynamic Cr |
Static Cor |
Grease r/min |
Oil r/min |
Kg/pcs | |
| 693 | 3 |
8 | 3 | 0.15 | 0.56 |
0.18 |
44000 |
52000 |
0.0006 |
| 694 | 4 | 11 | 4 | 0.15 | 0.715 | 0.276 | 38000 | 47000 | 0.0018 |
| 695 | 5 | 13 | 4 | 0.2 | 1.08 | 0.43 | 34000 | 43000 | 0.0024 |
| 696 | 6 | 15 | 5 | 0.2 | 1.35 | 0.53 | 32000 | 40000 | 0.0038 |
| 697 | 7 | 17 | 5 | 0.3 | 1.61 | 0.715 | 30000 | 38000 | 0.0052 |
| 698 | 8 | 19 | 6 | 0.3 | 1.99 | 0.865 | 28000 | 36000 | 0.0073 |
| 690 | 9 | 20 | 6 | 0.3 | 2.48 | 1.09 | 27000 | 34000 | 0.0082 |
| 6900 | 10 | 22 | 6 | 0.3 | 2.7 | 1.27 | 25000 | 32000 | 0.009 |
| 6901 | 12 | 24 | 6 | 0.3 | 2.89 | 1.46 | 20000 | 28000 | 0.011 |
| 6902 | 15 | 28 | 7 | 0.3 | 3.65 | 2 | 19000 | 26000 | 0.016 |
| 6903 | 17 | 30 | 7 | 0.3 | 4.65 | 2.58 | 18000 | 24000 | 0.018 |
| 6904 | 20 | 37 | 9 | 0.3 | 6.4 | 3.7 | 17000 | 22000 | 0.036 |
| 6905 | 25 | 42 | 9 | 0.3 | 7.05 | 4.55 | 14000 | 18000 | 0.042 |
| 6906 | 30 | 47 | 9 | 0.3 | 7.25 | 5 | 12000 | 16000 | 0.048 |
| 6907 | 35 | 55 | 10 | 0.3 | 9.55 | 6.85 | 10000 | 14000 | 0.074 |
Useage
Widely used of vehicles, motorcycles, home electrical appliances, electric tools and mineral machineries.
Trade Term
1.T/T 30% as deposit and balance to copy of B/L
2.L/C at sight
3.Delivery Time: 10-30 days upon receipt of deposit
4.Free sample can be sent in 3-5 days
5.Shipping freight are quoted under your requires
6.Shipping port:Ningbo/Shanghai
7.Discount are offered based on order quantities
