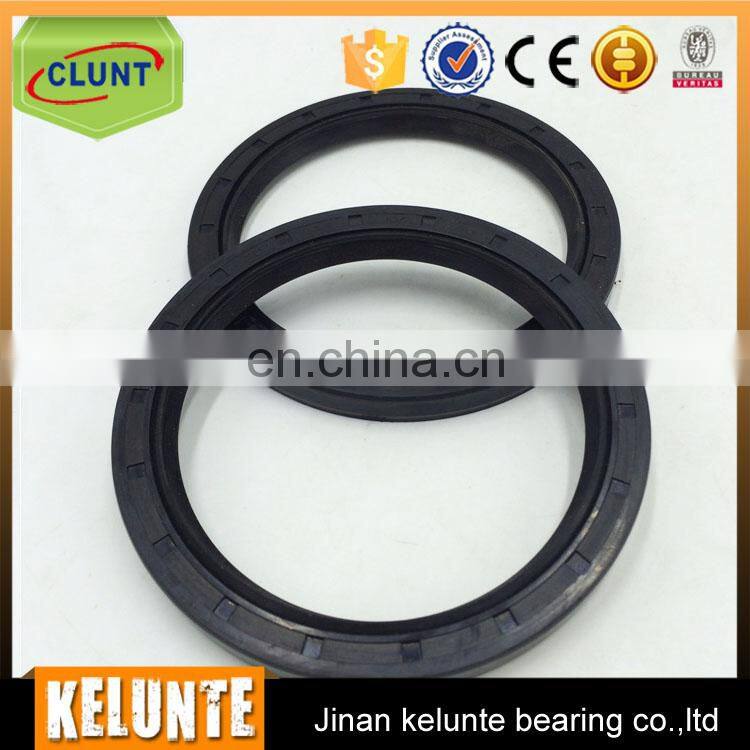

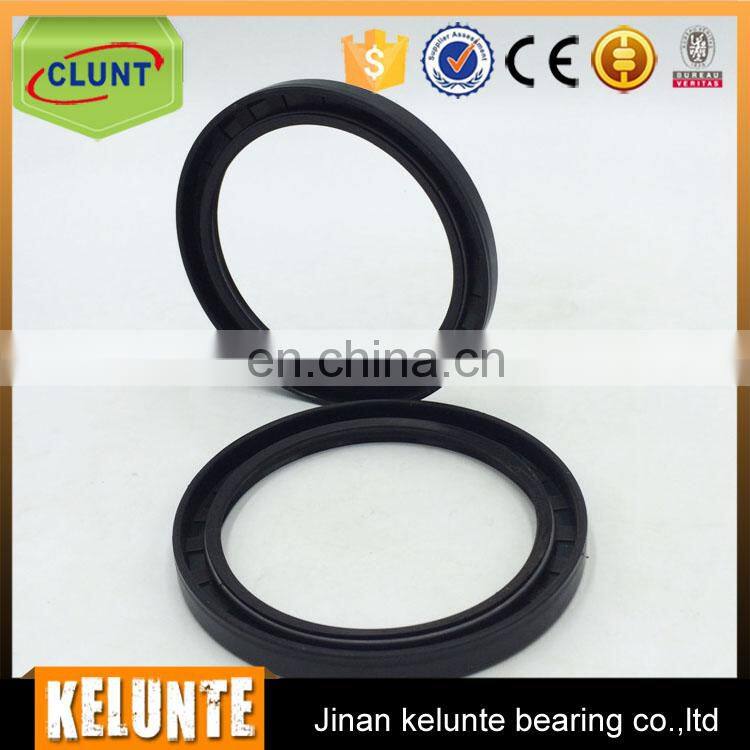

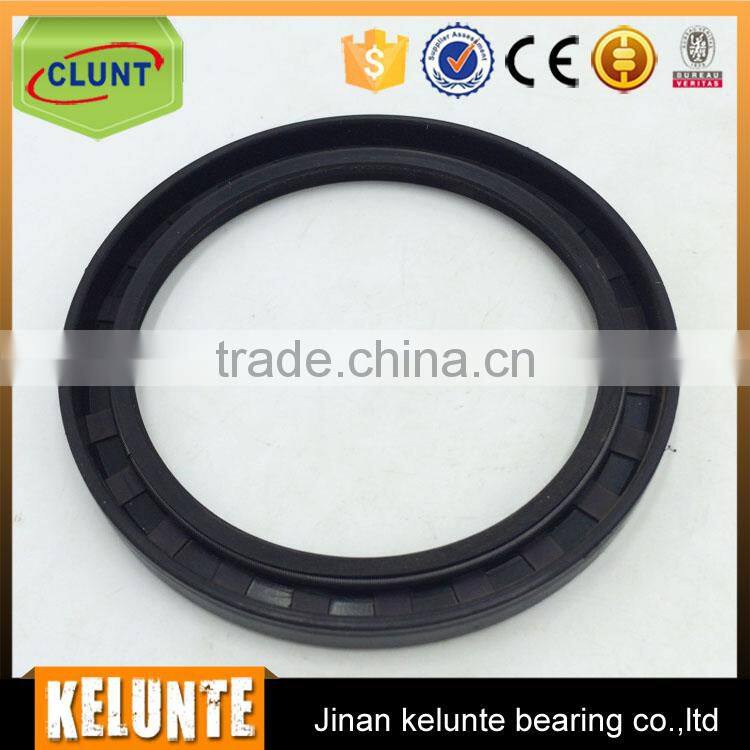

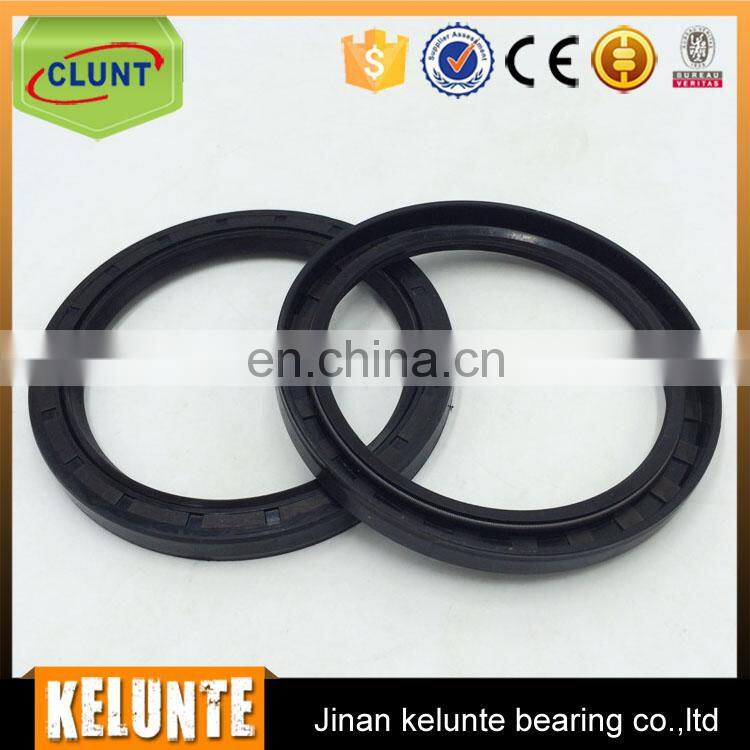

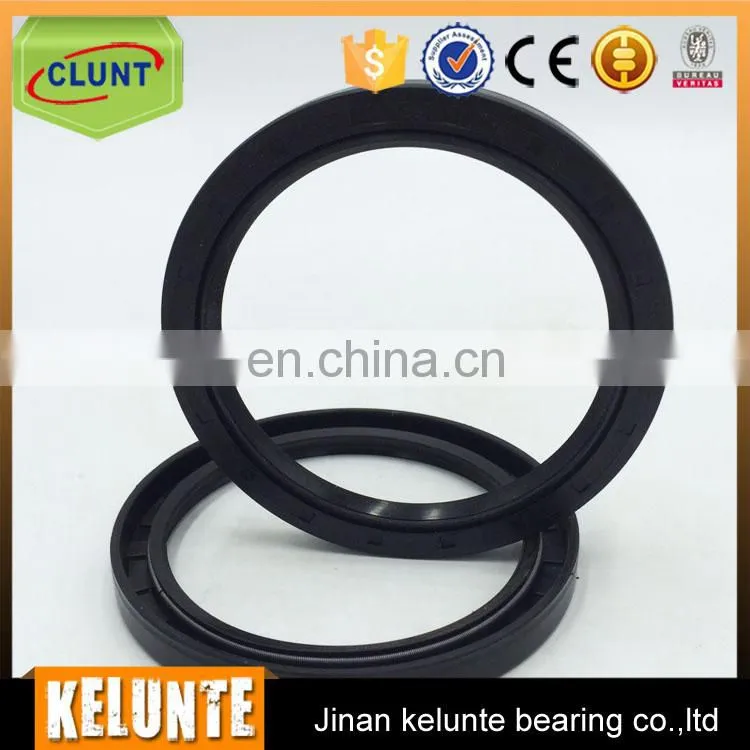

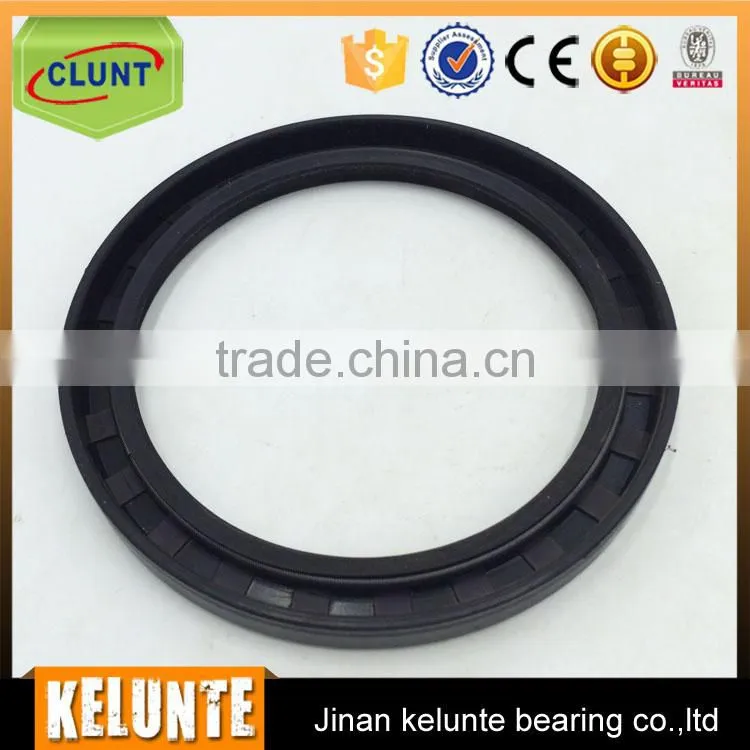

Double Lip Oil Shaft Seal 85x105x10 85mm x 105mm x 10mm - STAINLESS SPRING

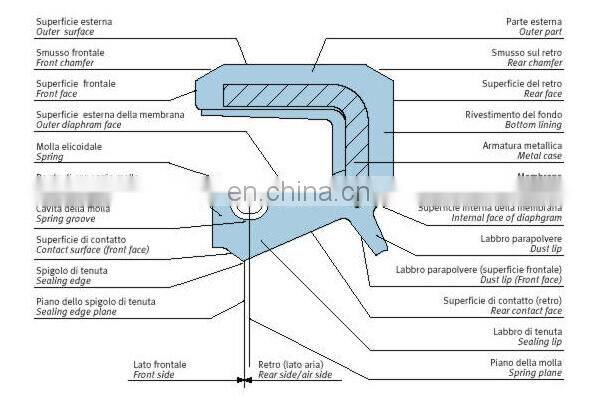

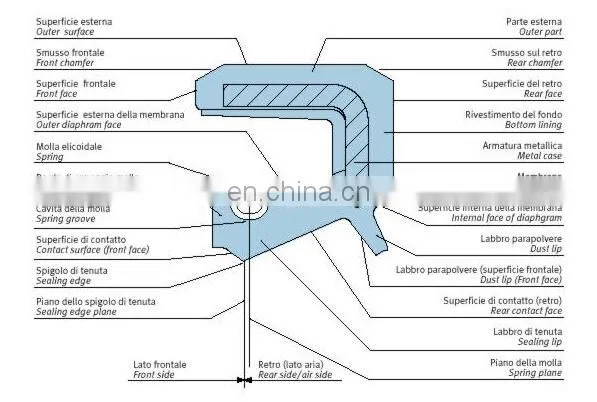

Descriptions of rotary shaft oil seals
| NBR ACM MVQ FPM HNBR EPDM |
nitrile rubber polyacrilic rubber silicon rubber fluorinated rubber hydrogenated nitrile rubber ethylene-propylene rubber |
(acrylonitrile-butadiene) |
Specifications of Oil Shaft Seal 85x105x10
| Part number | 8510510DBP001 |
| Application | - For sealing rotating machine components |
| Properties |
- rubber outer sheath compensates for expansion and unevenness in the housing bore - With zinc-plated steel spring |
| Technical information |
- CB: rubber sheath, without dust lip - CC: rubber sheath, with dust lip - BB: steel sheath, without dust lip - BC: steel sheath, with dust lip - DB: steel sheath, with reinforcement, without dust lip - DC: steel sheath, with rein |
| Unit | Each |
| Norm | DIN3760 |
| Temperature range (°C) | -35 <> +100 |
| Max. working pressure (-bar) | 0.5 |
| Peripheral speed shaft (max) (-m/sec) | 10 |
| d1 (mm) | 85 |
| d2 (mm) | 105 |
| h (mm) | 10 |
| Material | Nitrile rubber (NBR) |
| Amount per packaging (-pcs) | 1 |
| Type | DB |
| Material spring | Spring steel |
TC oil seals series
Ref No |
Description |
ID |
OD |
Thickness |
OilSeal31X42X8 |
OilSeal31X42X8 Oil Seal - 31x42x8 |
31mm |
42mm |
8mm |
OilSeal31X45X7 |
OilSeal31X45X7 Oil Seal - 31x45x7 |
31mm |
45mm |
7mm |
OilSeal31X47X7 |
OilSeal31X47X7 Oil Seal - 31x47x7 |
31mm |
47mm |
7mm |
OilSeal31X47X10 |
OilSeal31X47X10 Oil Seal - 31x47x10 |
31mm |
47mm |
10mm |
OilSeal31X52X7 |
OilSeal31X52X7 Oil Seal - 31x52x7 |
31mm |
52mm |
7mm |
OilSeal32X40X7 |
OilSeal32X40X7 Oil Seal - 32x40x7 |
32mm |
40mm |
7mm |
OilSeal32X42X6 |
OilSeal32X42X6 Oil Seal - 32x42x6 |
32mm |
42mm |
6mm |
OilSeal32X42X7 |
OilSeal32X42X7 Oil Seal - 32x42x7 |
32mm |
42mm |
7mm |
OilSeal32X42X8 |
OilSeal32X42X8 Oil Seal - 32x42x8 |
32mm |
42mm |
8mm |
OilSeal32X43X7 |
OilSeal32X43X7 Oil Seal - 32x43x7 |
32mm |
43mm |
7mm |
OilSeal32X44X7 |
OilSeal32X44X7 Oil Seal - 32x44x7 |
32mm |
44mm |
7mm |
OilSeal32X44X8 |
OilSeal32X44X8 Oil Seal - 32x44x8 |
32mm |
44mm |
8mm |
OilSeal32X44X10 |
OilSeal32X44X10 Oil Seal - 32x44x10 |
32mm |
44mm |
10mm |
OilSeal32X45X6 |
OilSeal32X45X6 Oil Seal - 32x45x6 |
32mm |
45mm |
6mm |
OilSeal32X45X7 |
OilSeal32X45X7 Oil Seal - 32x45x7 |
32mm |
45mm |
7mm |
OilSeal32X45X8 |
OilSeal32X45X8 Oil Seal - 32x45x8 |
32mm |
45mm |
8mm |
OilSeal32X45X10 |
OilSeal32X45X10 Oil Seal - 32x45x10 |
32mm |
45mm |
10mm |
OilSeal32X46X8 |
OilSeal32X46X8 Oil Seal - 32x46x8 |
32mm |
46mm |
8mm |
OilSeal32X47X7 |
OilSeal32X47X7 Oil Seal - 32x47x7 |
32mm |
47mm |
7mm |
OilSeal32X47X8 |
OilSeal32X47X8 Oil Seal - 32x47x8 |
32mm |
47mm |
8mm |
OilSeal32X47X10 |
OilSeal32X47X10 Oil Seal - 32x47x10 |
32mm |
47mm |
10mm |
OilSeal32X48X7 |
OilSeal32X48X7 Oil Seal - 32x48x7 |
32mm |
48mm |
7mm |
OilSeal32X48X8 |
OilSeal32X48X8 Oil Seal - 32x48x8 |
32mm |
48mm |
8mm |
OilSeal32X48X10 |
OilSeal32X48X10 Oil Seal - 32x48x10 |
32mm |
48mm |
10mm |
OilSeal32X50X7 |
OilSeal32X50X7 Oil Seal - 32x50x7 |
32mm |
50mm |
7mm |
OilSeal32X50X8 |
OilSeal32X50X8 Oil Seal - 32x50x8 |
32mm |
50mm |
8mm |
OilSeal32X50X10 |
OilSeal32X50X10 Oil Seal - 32x50x10 |
32mm |
50mm |
10mm |
OilSeal32X52X5 |
OilSeal32X52X5 Oil Seal - 32x52x5 |
32mm |
52mm |
5mm |
OilSeal32X52X7 |
OilSeal32X52X7 Oil Seal - 32x52x7 |
32mm |
52mm |
7mm |
OilSeal32X52X8 |
OilSeal32X52X8 Oil Seal - 32x52x8 |
32mm |
52mm |
8mm |
OilSeal32X52X10 |
OilSeal32X52X10 Oil Seal - 32x52x10 |
32mm |
52mm |
10mm |
OilSeal32X54X10 |
OilSeal32X54X10 Oil Seal - 32x54x10 |
32mm |
54mm |
10mm |
OilSeal32X55X7 |
OilSeal32X55X7 Oil Seal - 32x55x7 |
32mm |
55mm |
7mm |
OilSeal32X55X10 |
OilSeal32X55X10 Oil Seal - 32x55x10 |
32mm |
55mm |
10mm |
OilSeal32X56X10 |
OilSeal32X56X10 Oil Seal - 32x56x10 |
32mm |
56mm |
10mm |
OilSeal32X58X8 |
OilSeal32X58X8 Oil Seal - 32x58x8 |
32mm |
58mm |
8mm |
Product pictures showing
Jinan Kelunte Bearing Co., Ltd. is a professional bearing manufacturer and is engaged in the imported bearings. Our company is engaged in the imported bearings,company's main imported Roller Bearing,Ball Bearing,deep groove ball bearings,taper roller bearings,angular contact ball bearings,Pillow Block Bearing,Ceramic Bearing,cylindrical roller bearing, spherical roller bearing . and our brands:CLUNT.
