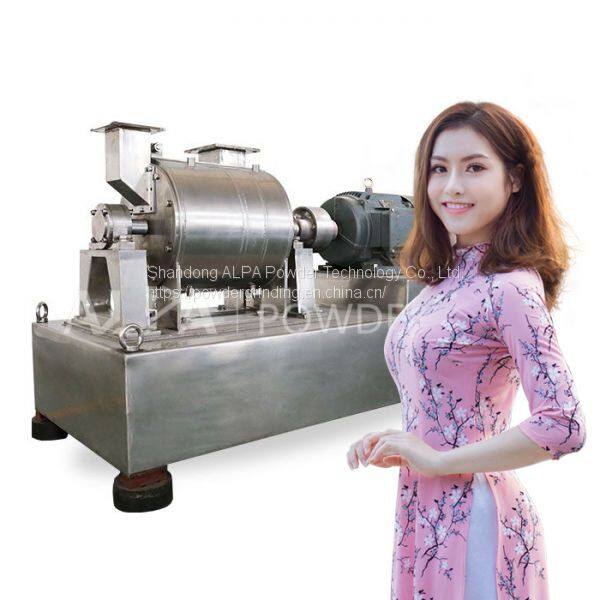

Saw Dust Wood Fiber Fine Grinding Mill Production Line
- 1000 Set / Sets per Month
- qingdao
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 30 days
Product Details
Brand Name: | ALPA | Place of Origin: | China | Model Number: | CUM-L |
Type: | Pulverizer | Certification: | CE,ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Warranty: | 1-year warranty | Weight: | Customizable | Dimension(L*W*H): | Customizable |
Condition: | New | Product Type: | Other, Powder | Voltage: | Local Voltage |
Power(W): | 7.5kw |
Product Description
Saw Dust Wood Fiber Fine Grinding Mill Production Line
Wood Fiber Mill Features
Widely used in Chinese herbal medicine, wood flour, wheat stalk, corn stalk, rice stalk, sorghum stalk, millet stalk, sesame stalk, peanut shell and other industries.
1.Available D50:50~180μm;
2.Independent air inlet and exhaust system;
3.Lower installation power, wide application, high cost-performance;
4.Suitable for grinding of fiber materials such as Chinese herbal medicine and straw etc;
5.PLC control system, easy operation;
6.Optional explosion-proof design, meet the ultra-fine grinding processing requirements of flammable and explosive oxide materials.
Wood Fiber Working Principle
1.The material (≤6mm) is sent to the grinding chamber under negative pressure. The grinding chamber consists of three grinding zones:
The first grinding zone: pendulum – can grind various harder materials, such as minerals, leather, animals;
The second grinding zone: pendulum knives – can grind various fiber materials, rhizomes, whole grasses, fruits, fungi, flowers and others;
The third grinding zone: fixed knives – control particle size by adjusting the gap.
The material is conveyed to the classifying chamber. Centrifugal force field is generated by classifying impeller.
The qualified fine powder is moved to the center of the rotor, sucked away by draft fan, and then collected by cyclone collector; the coarser particles return to grinding chamber for secondarily grinding. Material recovery rate is above 99%.
2. Designed according to the “GMP” standard of the pharmaceutical industry. Stainless steel. Dust-free and can be installed in clean workshop.
3. Easy to operate, high efficiency and low cost. Widely used in pharmaceuticals and food industries.
4. Could be used not only in single machine, but also in closed loop system with air classifier to obtain finer particles.
Wood Fiber Technical Parameters
Parameter | CUM240-L | CUM300-L | CUM500-L | CUM600-L | CUM700-L |
Production Capacity (kg/h) | 3~15 | 10~40 | 20~80 | 60~120 | 80~200 |
Rotate Speed (rpm) | 3000 | 3000 | 3000 | 3000 | 3000 |
Input Particle Size (mm) | ≤6 | ≤6 | ≤6 | ≤6 | ≤6 |
Produce Size (Mesh) | 80~300 | 80~300 | 80~300 | 80~300 | 80~300 |
In the fields of ultrafine grinding and classification in the pharmaceutical, food, chemical, mineral, new materials, solid waste treatment and other industries, ALPA has mature and fully customized solutions and helps you design the ideal system to meet your needs.
Q: What service do you supply?
2). We supply sample processing tests in our test station where are equipped with our various machine products, to help clients compare performances of different types of machines or process.
3). We supply project engineering, automation engineering and civil engineering.
4). We send engineers to the clients’ project site and offer on-site technical instruction and supervision during the machine installation, commissioning and test run.
Q:How can I trust on your quality?
A: 1). All of the machine be tested successfully in Weifang workshop before shipment.
2). We supply one year warranty for all equipment and lifelong after-sales service.
3). We can test your material in our equipment before place the order, to ensure our equipment is suitable for your project.
4). Our engineers will go to your factory to install and debug the equipment, they will not be back until these equipment can produce qualified products.
Q:Does your company provide Engineers Abroad Service?
A: Sure, we provide it. And we can provide free training for on-site workers.
Q:How to train our staff about operation and maintenance?
A: We will provide detailed technical instructive pictures to teach them for the operation and maintenance. In addition, our engineers for guide assembly will teach your staff on site.
