Product Details
| Brand Name | KLQD | Place of Origin | Zhejiang, China | |
| Model Number | US(2L)-20 | Material | Brass | |
| Structure | Control | Standard or Nonstandard | Standard | |
| Pressure | High Pressure | Power | Solenoid | |
| Port Size | 20 | Media | Water | |
| Temperature of Media | Medium Temperature |
Product Description
welcome you to KLQD,and we will provide you with the best service.

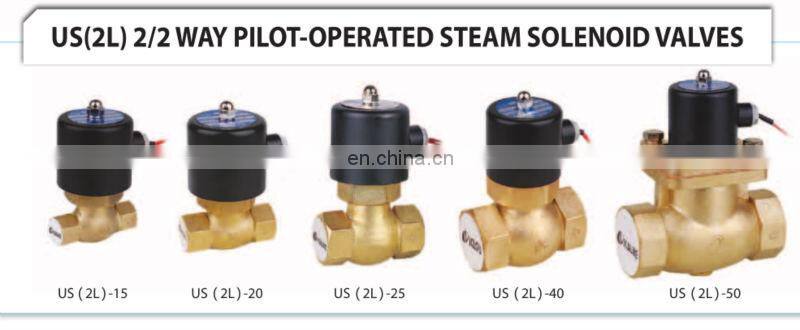

2L series pilot-operated steam solenoid valve, it is 2/2way. It is high temperature can up to -5~185°C, so mostly for steam medium, we also call it steam valve. It is designed correspondingly to support higher pressure of 1.5MPa, the orifice also will be bigger than normal valve for same thread size to make larger flow rate. It can change the coils to be as explosion-proof solenoid valve
1)port size: 1/2" ~ 2"
2) Working Medium: steam, air, water
3) Action Type: pilot operated
4) Valve Body: Brass or Stainless Steel
5) Valve Control Style: NC (normal close)
6)Orifice Size: 17,22,30,50
7) Working Pressure: 0~1.5MPa
8) Max. Proof Pressure: 1.5MP
9) Seal Material: PTFE
10) Working Temperature: -5~185°C
11) Wiring Form: lead wire type, DIN connector, explosion-proof coil
12) Voltage: DC12V, DC24V, AC24V, AC110V, AC220V ,AC380V 50/60HZ,
Model | 2L170-10 | 2L170-15 | 2L170-20 | 2L200-25 | 2L300-40 | 2L500-50 | |
Fluid | Air, Water, Steam | ||||||
Operation | Guide type | ||||||
Type | Normal close type | ||||||
Aperture (mm) | 17 | 22 | 30 | 50 | |||
Cv value | 4.8 | 12 | 20 | 48 | |||
Port size | G3/8'' | G1/2'' | G3/4'' | G1'' | G1 1/2'' | G2'' | |
Operation fl uid viscosity | 20 CST Below | ||||||
Operating pressure | 0.1 ~ 1.5MPa | ||||||
Max. Proof pressure | 2.25MPa | ||||||
Operating temperature | -5 ~ 180C | ||||||
EVoltage range | ±10% | ||||||
Material of body | Brass | ||||||
Material of oil seal | PTFE | ||||||
