Home > Products > Solenoid valve > PU Series Brass 2way Solenoid Valve /24 Volt Electric Water Superior Solenoid Valve
PU Series Brass 2way Solenoid Valve /24 Volt Electric Water Superior Solenoid Valve
US$ 25 - 50
/ Set
1 Set(Min. Order)
- Shanghai or Ningbo
- T/T Credit Card
You May Like
-
Diaphragm Solenoid Valve /KL523 Series High Pressure and Temperature/Control Air,water,oil/AC or DC/Control Solenoid Valve
-
Small Solenoid Valve/Stainless Steel Water Solenoid Valve/Electric Solenoid Water Valve
-
2WB-25 1 Inch Water Solenoid Valve/Stainless Steel Water Solenoid Valve/Electric Solenoid Water Valve
-
2W Under Water Solenoid Valve /Gas Diesel Oil Normal Closed / 2W200-20 Direct Brass Solenoid Valve
-
Direct Acting 2 Way 2W025-08 Solenoid Valve/ Water,air,gas,oil/ 1/4"/Pneumatic Solenoid Valve
-
2W400-40 1-1/2" Explosion Proof Solenoid Valve, Ex mb I/II T4 Class
Product Details
| Brand Name | KLQD | Place of Origin | Zhejiang, China | |
| Model Number | PU220-06 | Material | Brass | |
| Structure | Diaphragm | Standard or Nonstandard | Standard | |
| Pressure | Medium Pressure | Power | Solenoid | |
| Port Size | 3/4" | Media | Water | |
| Temperature of Media | Medium Temperature |
Product Description
Specification:
Model | PU225-03A | PU225-04A | Pu225-06A | PU225-08A | PU225-12A | PU225-14A | PU225 -20A | ||||||
SPU225-03A | SPU225-04A | SPU225-06A | SPU225-08A | SPU225-12A | SPU225-14A | ||||||||
Working medium | Air,water.oil | ||||||||||||
Motion pattern | Guide type | ||||||||||||
Type | Normal close type | ||||||||||||
Aperture of flow ratea | 13 | 13 | 25 | 25 | 38 | 38 | 50 | ||||||
CV value | 4.50 | 4.50 | 12.00 | 12.00 | 22.00 | 30.00 | 48.00 | ||||||
Jonit Pipe Bore | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | ||||||
Meterial of body | Brass or steel | ||||||||||||
Operation Fluid viscosity | 50CTS | ||||||||||||
Working perssure | 0.5~10 kg/cm2 | ||||||||||||
Max pressure resisitance | 15 kg/cm2 | ||||||||||||
Woking temberature | -5~80 | ||||||||||||

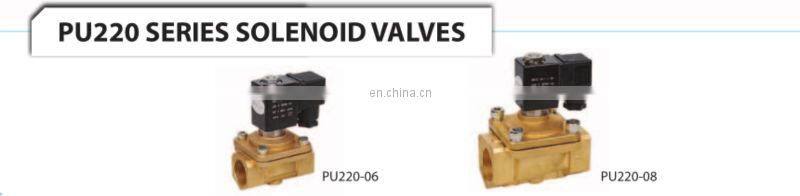

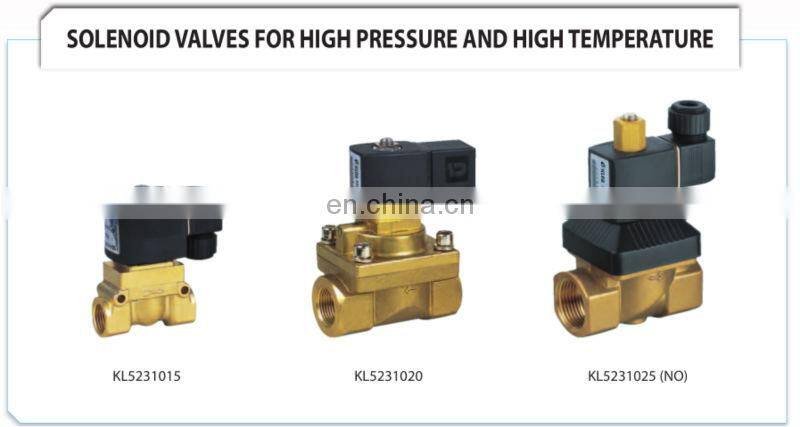

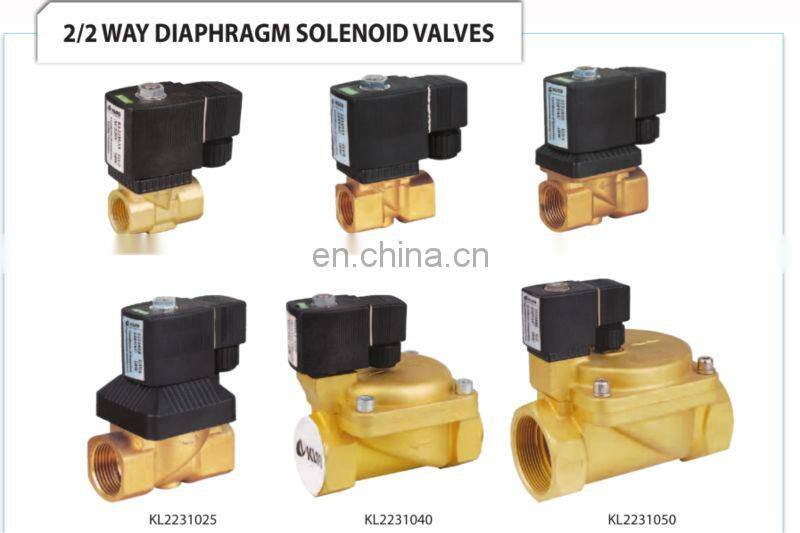

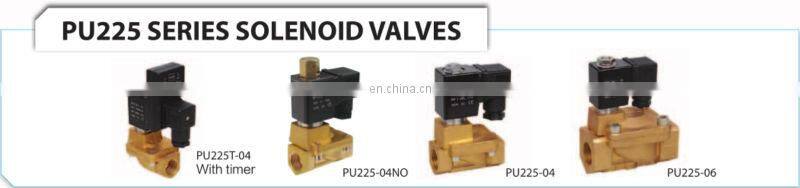

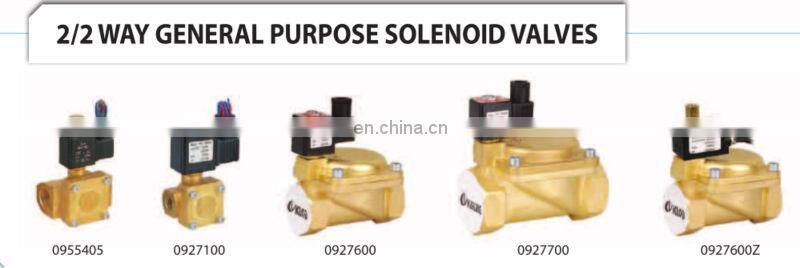

We have many other types of solenoid valves for your selection, below is some pictures:
